TGA4541-SM Ka 波段可变增益驱动放大器

The TriQuint TGA4541-SM is a variable gain amplifier to be used as a driver amplifier in linear Ka band applications. The TGA4541-SM operates from 28 to 31 GHz and is designed using TriQuint's pHEMT production process. The TGA4541-SM typically provides 23 dBm of linear power with 32 dB of small signal gain and 31 dBm of output TOI. The attenuation range is typically 30 dB. The TGA4541-SM is available in a low-cost, surface mount 40 lead 6x6 QFN package and is ideally suited for VSAT ground terminals and Point-to-Point Radio applications. Lead-free and RoHS compliant. Evaluation Boards are available upon request.

技术特性

Frequency range: 28 – 31 GHz
Power: 23 dBm P1dB
Gain: 33 dB
Output TOI: 31 dBm
Attenuation Range: 30 dB
Bias: Vd = 5 V, Id = 330 mA, Vg = -0.7 V Typical
Package Dimensions: 6.0 x 6.0 x 0.85 mm

订购信息 Ordering Information

TGA4541-SM

TGA4541-SM 产品实物图

技术指标

频率(GHz)	功率(dBm)	增益(dB)	NF/PAE	+V	IQ(mA)
28 - 31	23	33	-	5	330

应用领域 APPLICATION

VSAT
Point-to-Point Radio
Test Equipment and Sensors

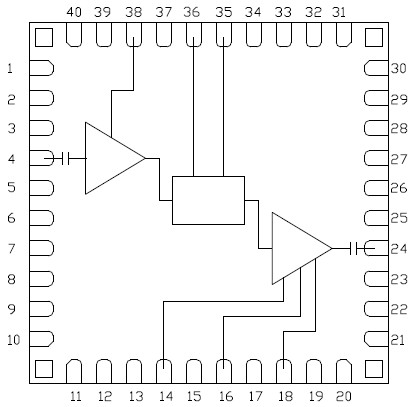

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
TGA4541-SM:S 参数
TGA4541-SM材料清单
TGA4541-SM布局文件
TGA4541-SM初步数据资料DataSheet下载：PDF	Rev.V2	2 页
