TGA4915-CP Ka-波段 7W 封装放大器
The TriQuint TGA4915-CP is a compact 7 Watt high power amplifier for Ka band applications. The part is designed using TriQuint's proven standard 0.25 um gate power pHEMT production process. The TGA4915-CP provides a nominal 38 dBm of output power at an input power level of 21 dBm with a small signal gain of 22 dB. The part is ideally suited for low cost emerging markets such as base station transmitters for satellite ground terminals and point-to-point radio.
技术特性
- Frequency range: 26 to 31 GHz
- 38 dBm typical Psat @ Pin = 21 dBm
- 22 dB nominal gain
- 15 dB typical return loss
- 0.25um pHEMT technology
- Bias conditions: Vd = 6V, Idq = 4.2 A
- Package dimensions: 0.526 x 0.650 x 0.073 in
TGA4915-CP 产品实物图
|
技术指标
| 频率(GHz) |
功率(dBm) |
增益(dB) |
NF/PAE |
+V |
IQ(mA) |
| 28-31 |
38 |
22 |
- |
6 |
4200 |
应用领域 APPLICATION
- Point-to-Point Radio
- Satellite Ground Terminals
订购信息 Ordering Information

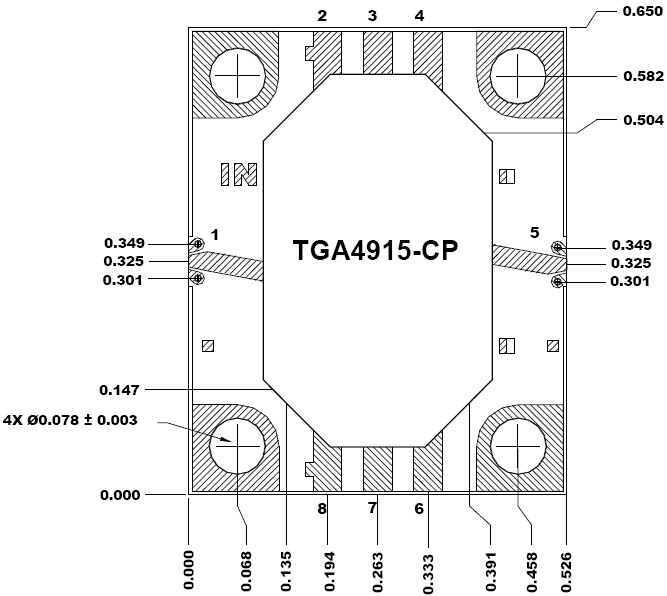

机械图样Mechanical Drawing
 |
