TGA4943-MOD 40 & 100 Gb/s 8 Vpp 光调制驱动器模块

The TriQuint TGA4943-MOD is a three stage optical modulator driver module designed to operate at frequencies that target the 40 and 100 Gb/s optical market. The TGA4943-MOD consists of three high performance wideband amplifiers assembled in a module that includes all necessary components for operation. A single TGA4943-MOD placed between the MUX and Optical Modulator provides OEMs with a modulator driver solution. The TGA4943-MOD provides Metro and Long Haul designers with system critical features such as: low power dissipation, low rail ripple, high voltage drive capability (3 Vpp amplitude adjustable up to 9 Vpp), low output jitter and low input drive sensitivity (0.4 Vpp to 1 Vpp at Vout = 8Vpp). The part is lead-free and RoHS compliant. Evaluation samples are available upon request.

技术特性
  • 40 & 100 Gb/s performance
  • Single ended input and output
  • Adjustable output amplitude: 3 Vpp to 9 Vpp
  • Low additive RMS jitter: 500 fsec
  • High output drive: 8 Vpp with 0.4 Vpp Input
  • Gain: 32 dB at 20 GHz
  • Low DC power dissipation: 1.7 W for Vout = 8Vpp at Vd=6 V
  • Rise and fall Times < 12 psec
  • Hot-pluggable
  • Module size: 28.5 x 24 x 6.48 mm
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
0.0001 - 30GHz 22 32 - 6 280
订购信息 Ordering Information
TGA4943-MOD  Module (RoHS)
应用领域 APPLICATION
  • 40 GB/s Optical Market: DQPSK (2x)
  • 40 GB/s Optical Market: DPSK (1x)
  • 100 GB/s Optical Market: DP-QPSK (4x)

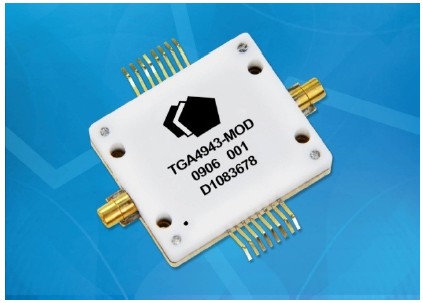

TGA4943-MOD 产品实物图

TGA4943-MOD 产品实物图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA4943-MOD:S参数
TGA4943-MOD 数据资料DataSheet下载:PDF Rev.V2 2 页
