TGA8035-SCC 增益模块

The TriQuint TGA8035-SCC is a two-stage GaAs monolithic amplifier designed for use as a broadband general-purpose gain block. Two 300 um gate-width FETs provide a 13 dB typical gain and a 5 dB noise figure from 6 to 18 GHz. Typical output power at 1 dB gain compression is 12.5 dBm. Shunt feedback is used around each active device to improve gain flatness and standing-wave ratio (SWR). Ground is provided to the circuitry through vias to the backside metallization. The TGA8035-SCC amplifier is suitable for a variety of broadband electronic warfare (EW) applications. The combination of gain, power and noise figure makes this device an exceptional post amplifier following a low noise amplifier. Bond pad and backside metallization is gold plated for compatibility with eutectic alloy attachment methods as well as thermocompression and thermosonic wire bonding processes. The TGA8035-SCC is supplied in chip form and is readily assembled using automated equipment.

技术特性
  • 6 to 18 GHz frequency range
  • 13 dB typical gain
  • 2.2:1 typical input / output SWR
  • 12.5 dBm typical output power at 1 dB gain compression
  • 5 dB typical noise figure
  • Dimensions: 2.4892 x 2.0574 x 0.1143 mm (0.098 x 0.081 x 0.0045 in)
订购信息 Ordering Information
  • TGA8035-SCC
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
6.0-18 12.5 13 5dB 5 80

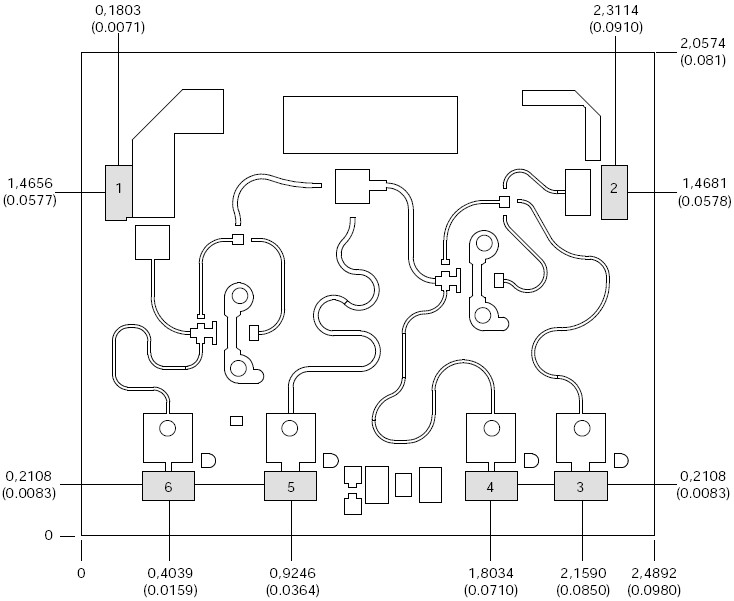

机械图样Mechanical Drawing
TGA8035-SCC 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA8035-SCC:S 参数
TGA8035-SCC数据资料DataSheet下载:PDF Rev.V2 2 页
