TGA9092-SCC 功率放大器(每通道)

The TriQuint TGA9092-SCC is a dual channel, three stage wide band high power amplifier (HPA) MMIC. It uses TriQuint's proven 0.25 mm Power pHEMT process and supports a variety of high performance applications including military electronic warfare (EW) programs, VSAT and other applications requiring wideband high power performance. Each amplifier channel consists of one 1200 um input device driving a 2400 um intermediate stage which drives a 4800 um output stage. The TGA9092-SCC provides a nominal 34 dBm of output power at 2 dB gain compression across the 6 to 18 GHz range (per channel). Power combined, nominal output power of 36.5 dBm can be expected with low loss external couplers. Typical per-channel small signal gain is 24 dB. Typical single-ended input / output return loss is 6 to 8 dB across the band. The TGA9092-SCC is 100% DC and RF tested onwafer to ensure performance compliance. The device is available in chip form.

技术特性
  • Dual channel power amplifier
  • 0.25um pHEMT technology
  • 6 to 18 GHz frequency range
  • 2.8 W / channel midband Pout
  • 5.6 W Pout combined
  • 24 dB nominal gain
  • Balanced in / our for low VSWR
  • 8 V @ 1.2 A per channel bias
订购信息 Ordering Information
  • TGA9092-SCC
应用领域 APPLICATION
  • VSAT
  • X and Ku Band High Power
技术指标
频率(GHz) 功率(dBm) 增益(dB) NF/PAE +V IQ(mA)
6.0 - 18 34.5 24 20% 8 1200

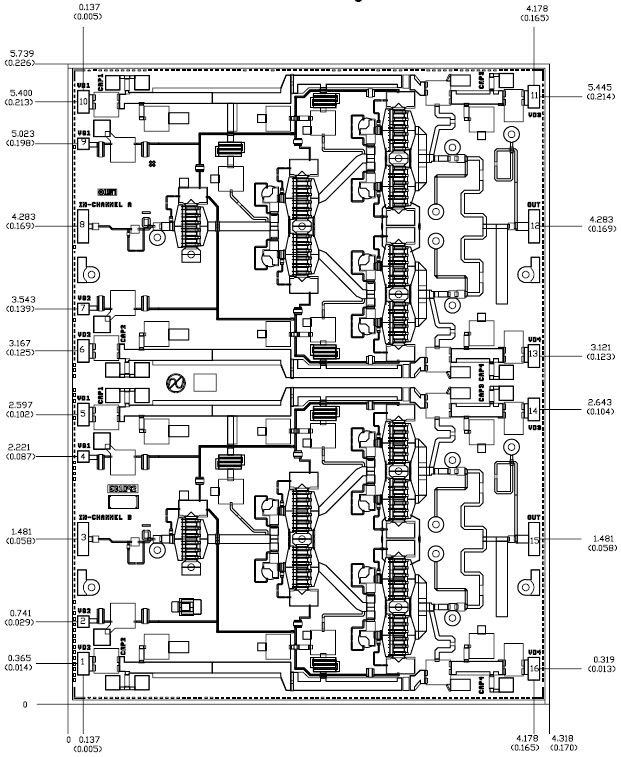

机械图样Mechanical Drawing
TGA9092-SCC 机械图样



应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGA9092-SCC:S 参数
TGA9092-SCC 数据资料DataSheet下载:PDF Rev.V2 2 页
