TGC4703-FC 19至38GHz双工器
The TriQuint TGC4703-FC is a flip-chip frequency doubler. It combines an input and output buffer amplifier and a frequency doubler for use in automotive radar. The part typically provides 14 dBm saturated output power with 8 dB conversion gain. This frequency doubler uses TriQuint's proven 0.13 um pHEMT process and front-side Cu / Sn pillar technology for simplified assembly and low interconnect inductance. Die reliability is enhanced by using TriQuint's BCB polymeric passivation process. The part is lead-free and RoHS compliant.
技术特性
- RF output frequency range: 38 to 38.5 GHz
- Input frequency range: 19 to 19.25 GHz
- 14 dBm saturated output power
- 8 dB nominal conversion gain
- 30 dB input frequency isolation at output
- Input return loss > 15 dB
- Output return loss > 8 dB
- Bias: Vd = 3.5 V, Idq = 65mA, Vg1 = -0.4 V,Vg2 = +0.2 V typical
- Technology: 0.13 um pHEMT with front-side Cu/Sn pillars
- Chip dimensions: 1.16 x 2.85 x 0.38 mm
技术指标
| 频率(GHz) |
转换增益(dB) |
V+(V) |
IQ(mA) |
| 38 - 38.5 |
8 |
3.5 |
135 |
|
应用领域 APPLICATION
- 77 GHz Long/Medium Range Automotive Radar
- Adaptive Cruise Control
- Pre-Crash Warning / Collision Avoidance Systems
订购信息 Ordering Information

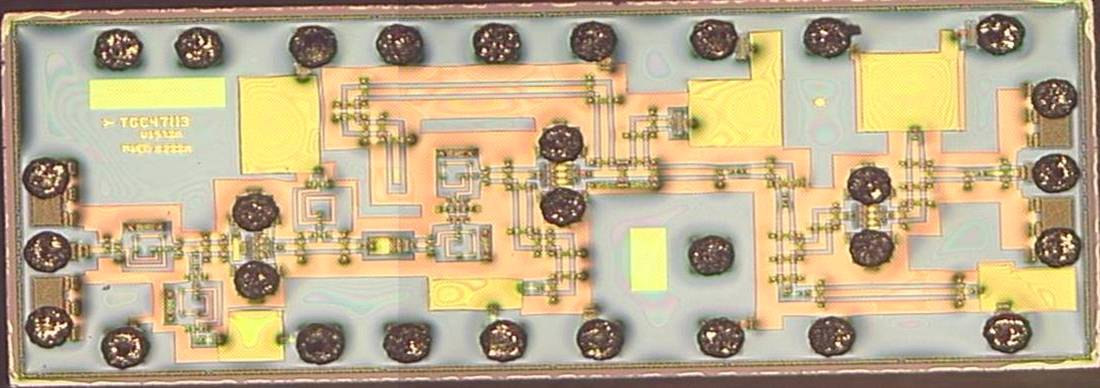

机械图样Mechanical Drawing
 |
