TGC4704-FC 38至77GHz双工器和中等功率放大器

The TriQuint TGC4704-FC is a flip-chip frequency doubler. It combines an output medium power amplifier and a frequency doubler at frequencies in the automotive radar frequency band. It typically provides 14 dBm saturated output power with 5 dB conversion gain. This frequency doubler uses TriQuint's proven 0.13 um pHEMT process and front-side Cu / Sn pillar technology for simplified assembly and low interconnect inductance. Die reliability is enhanced by using TriQuint's BCB polymeric passivation process. The part is lead-free and RoHS compliant.

技术特性
  • RF output frequency range: 76 to 77 GHz
  • Input frequency range: 38.0 to 38.5 GHz
  • Two outputs: Out1 (Main) and Out2 (12 dB coupled from Out1)
  • 14 dBm saturated output power
  • 5 dB conversion gain
  • 50 dB input frequency isolation at output
  • Input return loss > 8 dB
  • Output return loss > 10 dB
  • Bias: Vd = 3.75 V, Idq = 180 mA, Vg1 = -0.4 V Vg2 = +0.2 V typical
  • Technology: 0.13 um pHEMT with front-side Cu/Sn pillars
  • Chip dimensions: 3.38 x 1.37 x 0.38 mm
技术指标
频率(GHz) 转换增益(dB) V+(V) IQ(mA)
76 - 77 5 3.5 180
应用领域 APPLICATION
  • 77 GHz Long/Medium Range Automotive Radar
  • Adaptive Cruise Control
  • Pre-Crash Warning / Collision Avoidance Systems
订购信息 Ordering Information
  • TGC4704-FC

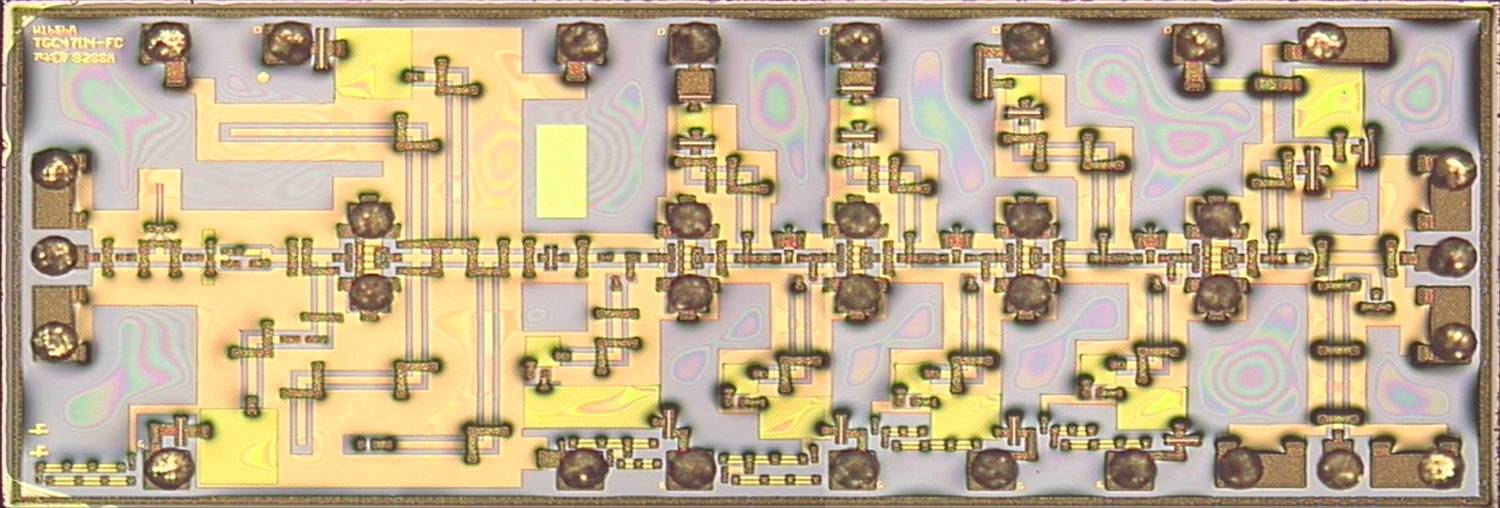

机械图样Mechanical Drawing
TGC4704-FC 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGC4704-FC :资质报告 Rev.V2 2 页
TGC4704-FC 数据资料DataSheet下载:PDF Rev.V2 2 页
