TGF2021-04 X-波段分立功率pHEMT
The TriQuint TGF2021-04 is a discrete 4 mm pHEMT which operates from DC to 12 GHz. The part is designed using TriQuint's proven standard 0.35um power pHEMT production process. The TGF2021-04 typically provides greater than 36 dBm of saturated output power with power gain of 11 dB. The maximum power added efficiency is 59% which makes the TGF2021-04 appropriate for high efficiency applications. The TGF2021-04 is also ideally suited for point-to-point radio, high-reliability space and military applications. The part is lead-free and RoHS compliant and has a protective surface passivation layer providing environmental robustness.
技术特性
- Frequency range: DC to 12 GHz
- > 36 dBm nominal Psat
- 59% maximum PAE
- 11 dB nominal power gain
- Suitable for high reliability applications
- 4 mm x 0.35 um Power pHEMT
- Nominal bias Vd = 8 to 12 V, Idq = 300 to 500 mA (under RF drive, Id rises from 300 mA to 960 mA)
- Chip dimensions: 0.57 x 1.30 x 0.10 mm (0.022 x 0.051 x 0.004 in)
订购信息 Ordering Information
技术指标
| 频率(GHz) |
增益(dB) |
功率(dBm) |
NF/PAE |
Vd(V) |
IQ(mA) |
| DC - 12 |
11 |
> 36 |
59% |
8 - 12 |
300 - 500 |
|
应用领域 APPLICATION
- Base Stations
- Broadband Wireless
- High Reliability Space
- Military
- Point-to-Point Radio

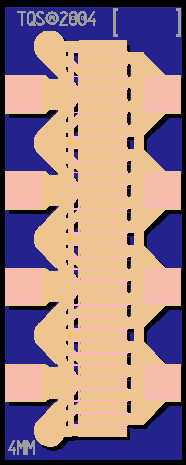

机械图样Mechanical Drawing
 |
