TGF2021-12 X-波段分立功率pHEMT
The TriQuint TGF2021-12 is a discrete 12 mm pHEMT which operates from DC to 12 GHz. The part is designed using TriQuint's proven standard 0.35um power pHEMT production process. The TGF2021-12 typically provides 42 dBm of saturated output power with power gain of 11 dB. The maximum power added efficiency is 59% which makes the TGF2021-12 appropriate for high efficiency applications. The TGF2021-12 is also ideally suited for Point-to-point radio, high-reliability space and military applications. The part is lead-free and RoHS compliant and has a protective surface passivation layer providing environmental robustness.
技术特性
- Frequency range: DC to 12 GHz
- > 42 dBm nominal Psat
- 58% maximum PAE
- 11 dB nominal Power Gain
- Suitable for high reliability applications
- 12 mm x 0.35 um Power pHEMT
- Nominal bias Vd = 8 to 12 V, Idq = 900 to 1500 mA (under RF drive, Id rises from 900 mA to 2560 mA)
- Chip dimensions: 0.57 x 2.93 x 0.10 mm (0.022 x 0.115 x 0.004 in)
订购信息 Ordering Information
技术指标
| 频率(GHz) |
增益(dB) |
功率(dBm) |
NF/PAE |
Vd(V) |
IQ(mA) |
| DC - 12 |
11 |
> 42 |
58% |
8 - 12 |
900 - 1500 |
|
应用领域 APPLICATION
- Base Stations
- Broadband Wireless
- High Reliability Space
- Military
- Point-to-Point Radio

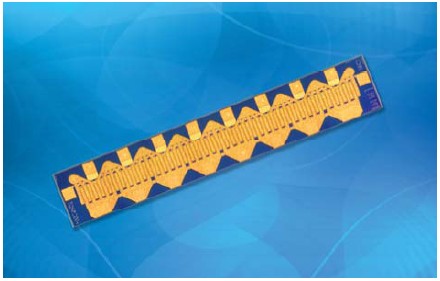

TGF2021-12 产品实物图
|
