TGF2022-12 Ku-波段分立功率pHEMT

The TriQuint TGF2022-12 is a discrete 1.2 mm pHEMT which operates from DC to 20 GHz. The part is designed using TriQuint's proven standard 0.35um power pHEMT production process. The TGF2022-12 typically provides greater than 31 dBm of saturated output power with power gain of 13 dB. The maximum power added efficiency is 58% which makes the TGF2022-12 appropriate for high efficiency applications. The TGF2022-12 is also ideally suited for point-to-point radio, high-reliability space and military applications. The part is lead-free and RoHS compliant and has a protective surface passivation layer providing environmental robustness.

技术特性
  • Frequency range: DC to 20 GHz
  • > 31 dBm nominal Psat
  • 58% maximum PAE
  • 39 dBm nominal OIP3
  • 13 dB nominal power gain
  • Suitable for high reliability applications
  • 1.2 mm x 0.35 um Power pHEMT
  • Nominal bias Vd = 8 to 12 V, Idq = 90 to 150 mA (under RF drive, Id rises from 90 mA to 300 mA)
  • Chip dimensions: 0.57 x 0.79 x 0.10 mm (0.022 x 0.031 x 0.004 in)
订购信息 Ordering Information
  • TGF2022-12
技术指标
频率(GHz) 增益(dB) 功率(dBm) NF/PAE Vd(V) IQ(mA)
DC - 20 13 > 31 58% 8 - 12 90 - 150
应用领域 APPLICATION
  • Base Stations
  • Broadband Wireless
  • High Reliability Space
  • Military
  • Point-to-Point Radio

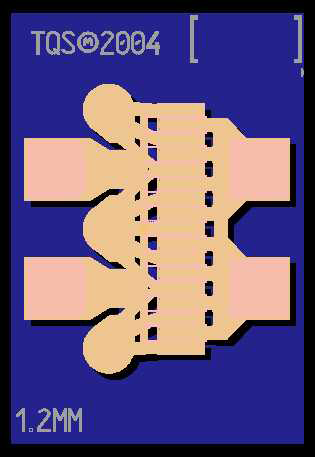

机械图样Mechanical Drawing
TGF2022-12 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGF2022-12:S 参数
TGF2022-12 数据资料DataSheet下载:PDF Rev.V2 2 页
