技术特性

• 0.5 um gate finger length
• Nominal Pout of 9.0 Watts at 2.3 GHz
• Nominal PAE of 53% at 2.3 GHz
• Nominal gain of 11.5 dB at 2.3 GHz
• Die size: 36.0 x 81.0 x 4.0 mils (0.914 x 2.057 x 0.102 mm)

技术指标

订购信息 Ordering Information

• TGF4118

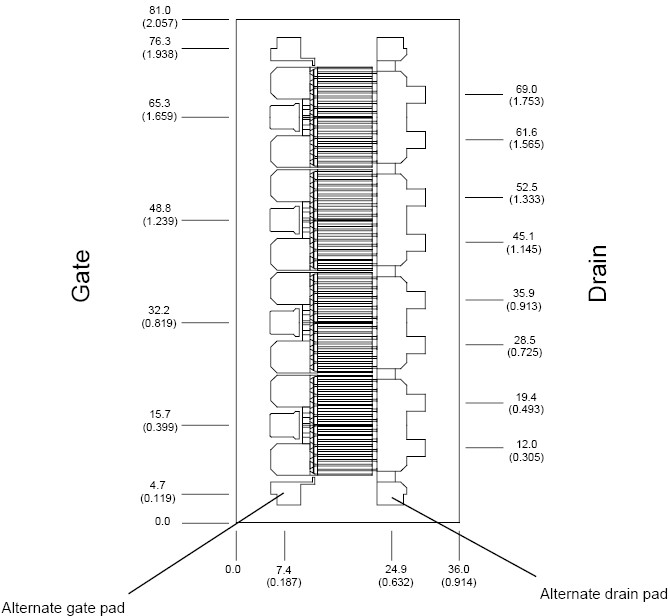

机械图样Mechanical Drawin
