TGF4240-SCC 2.4mm HFET
The TriQuint TGF4240-SCC is a single gate 2.4 mm Discrete GaAs Heterostructure Field Effect Transistor (HFET) designed for high-efficiency power applications up to 12 GHz in Class A and Class AB operation. Typical performance at 8.5 GHz is 31.5 dBm power output, 10 dB Gain and 56% PAE. Bond pad and backside metalization is gold plated for compatibility with eutectic alloy attach methods as well as thermocompression and thermosonic wire bonding processes. The TGF4240-SCC is readily assembled using automatic equipment.
技术特性
- Frequency range: DC to 12 GHz
- 2400 um x 0.5 um HFET
- Nominal Pout of 31.5 dBm at 8.5 GHz
- Nominal gain of 10.0 dB at 8.5 GHz
- Nominal PAE of 56 % at 8.5 GHz
- Suitable for high reliability applications
- Dimensions: 0.6 x 1.0 x 0.1 mm (0.024 x 0.040 x 0.004 in)
技术指标
| 频率(GHz) |
增益(dB) |
功率(dBm) |
NF/PAE |
Vd(V) |
IQ(mA) |
| DC - 12.0 |
10 |
31.5 |
56% |
8 |
192 |
订购信息 Ordering Information
|
应用领域 APPLICATION
- Cellular Base Stations
- High Reliability Space
- Military

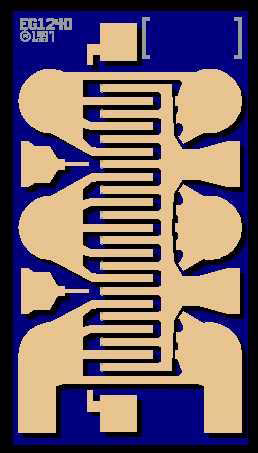

机械图样Mechanical Drawin
|
