TGF4260-SCC 9.6mm HFET
The TriQuint TGF4260-SCC is a single gate 9.6 mm discrete GaAs Heterostructure Field Effect Transistor (HFET) designed for high efficiency power applications up to 10.5 GHz in Class A and Class AB operation. Typical performance at 6 GHz is 37dBm power output, 9.5 dB Gain, and 52% PAE. Bond pad and backside metallization are gold plated for compatibility with eutectic alloy attach methods as well as thermocompression and thermosonic wire bonding processes.
技术特性
- Frequency range: DC to 10.5 GHz
- 9600 um x 0.5 um HFET
- Nominal Pout of 37 dBm at 6 GHz
- Nominal gain of 9.5 dB at 6 GHz
- Nominal PAE of 52% at 6 GHz
- Suitable for high reliability applications
- Dimensions: 0.6 x 2.4 x 0.1 mm (0.024 x 0.093 x 0.004 in)
技术指标
| 频率(GHz) |
增益(dB) |
功率(dBm) |
NF/PAE |
Vd(V) |
IQ(mA) |
| DC - 10.5 |
9.5 |
37 |
52% |
8.5 |
768 |
订购信息 Ordering Information
|
应用领域 APPLICATION
- Cellular Base Stations
- High Reliability Space
- Military

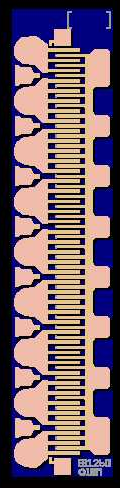

机械图样Mechanical Drawin
|
