技术特性

• 3 to 25 GHz passive, high isolation limiter
• Low loss < 0.5 dB, X band
• Good return loss > 15 dB
• Flat leakage < 18 dBm
• Input power CW survivability > 5W
• Integrated DC block on both input and output
• Chip dimensions: 1.1 x 1.1 x 0.1 mm

订购信息 Ordering Information

• TGL2201

技术指标

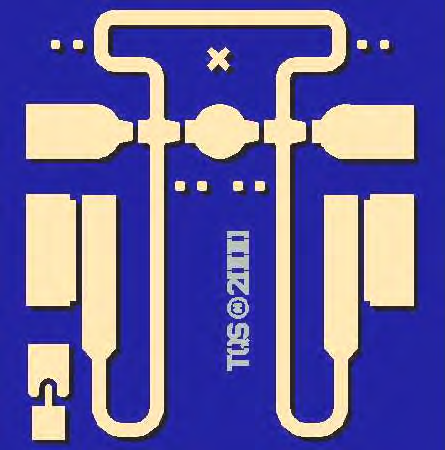

机械图样Mechanical Drawing
