TGL8784-SCC 模拟衰减器
The TriQuint TGL8784-SCC is a monolithic variable attenuator which operates from 2 to 20 GHz. This analog attenuator can operate from a single +2.5 volt power supply if used with an external variable voltage divider circuit. Typical RF performance at 10 GHz includes an insertion loss of 2 dB, maximum attenuation of 15 dB at 10 GHz and input/output return loss of greater than 10 dB. The device is an absorptive attenuator designed using MESFET technology employing a "PI" configuration which reduces bias currents and simplifies bias networks. The broadband capabilities of this device are versatile in many applications such as telecommunications, military and space. This device has a space heritage. DC blocking capacitors are provided on-chip. Bond pad and backside metallization is gold plated for compatibility with eutectic attachment methods as well as thermocompression and thermosonic wire bonding processes. The TGL8784-SCC is supplied in chip form and is readily assembled using automated equipment. Ground is provided to the circuitry through vias the backside metallization.
技术特性
- 2 to 20 GHz frequency range
- 2 dB insertion loss at midband
- 10 dB input / output return loss
- 13 dB variable attenuation range
- Single polarity power supply required
- Dimensions: 1.702 x 1.219 x 0.152 mm (0.067 x 0.048 x 0.006 in)
技术指标
| 频率(GHz) |
插入损耗(dB) |
范围(dB) |
P1dB(dBm) |
+V |
| 2.0 - 20 |
2 |
13 |
12 |
2.5 |
|
订购信息 Ordering Information

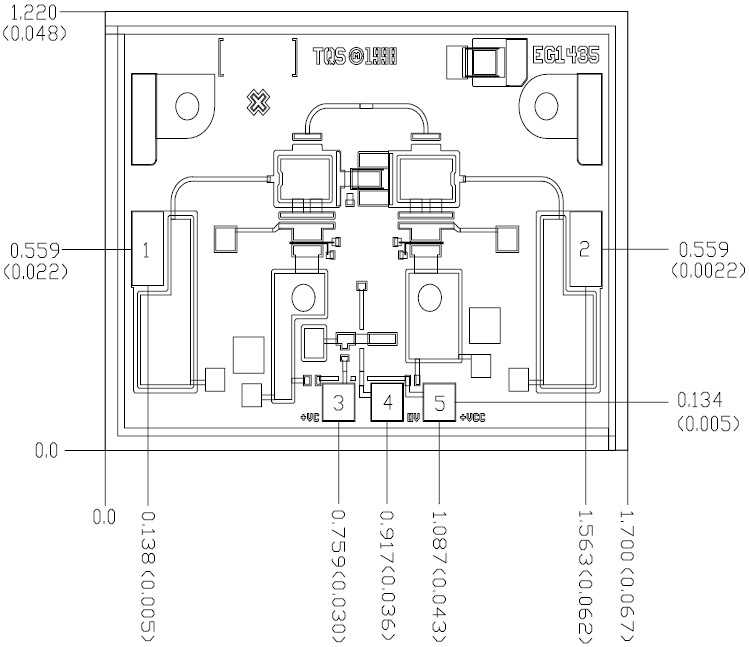

机械图样Mechanical Drawing
 |
