TGP2102 35 GHz 5位移相器

The TriQuint TGP2102 is a 5-bit digital phase shifter MMIC using TriQuint's proven 0.25um power pHEMT process to support a variety of Ka band phased array applications including military radar. The 5-bit design utilizes a compact topology that achieves a 1.41 mm² die area and high performance. The TGP2102 provides a 5-bit digital phase shift function with a nominal 7dB insertion loss and 5° RMS phase shift error over a bandwidth of 32 to 37 GHz. The TGP2102 requires a minimum of off-chip components and operates with a -5 V control voltage. Each device is RF tested on-wafer to ensure performance compliance. The device is available in chip form.

技术特性
  • Frequency range: 32 to 37 GHz
  • 7 dB nominal insertion loss
  • 3.5° RMS phase error @ 35 GHz
  • 0.4 dB RMS amplitude error @ 35 GHz
  • Negative control voltage
  • Single-ended logic
  • •0.25um pHEMT 3MI technology
  • Chip dimensions: 1.88 x 0.75 x 0.1 mm (0.074 x 0.030 x 0.004 in)
应用领域 APPLICATION
  • Military Radar Systems
  • Transmit / Receive



技术指标
频率(GHz) 插入损耗(dB) +V
32 - 37 7 -5
订购信息 Ordering Information
  • TGP2102

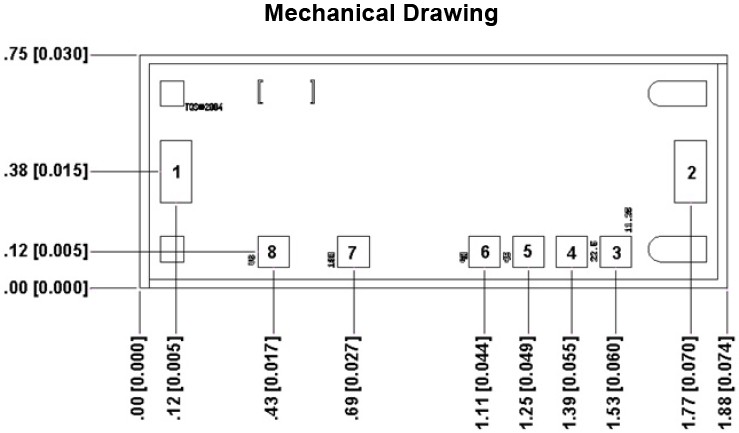

机械图样Mechanical Drawing
TGP2102 机械图样
应用技术支持与电子电路设计开发资源下载 版本信息 大小
TGP2102 数据资料DataSheet下载:PDF Rev.V2 2 页
