TGP6336 移相器

The TriQuint TGP6336 is a GaAs MMIC 5-bit phase shifter which operates from 6 to 18 GHz. Phase can be shifted from 0 to 348.75 degrees in 11.25 degree steps. Control bias voltages are 0 and 5 V. The insertion loss is typically 9 dB. The TGP6336 features on-chip CMOS-compatible drivers. This FET-based phase shifter offers wide band performance and small size for use in T/R modules for electronic warfare (EW) applications. Bond pad and backside metallization is gold plated for compatibility with eutectic alloy attach methods as well as thermocompression and thermosonic wire bonding processes. Ground is provided to the circuitry through vias to the backside metallization.

技术特性
  • 6 to 18 GHz frequency range
  • 5-bit phase shifter
  • On-chip CMOS-compatible drivers
  • 9 dB typical insertion loss at midband
  • 2:1 typical input SWR
  • 2.6:1 typical output SWR
  • Dimensions: 3.6 x 2.5 x 0.1 mm (0.140 x 0.100 x 0.004 in)
应用领域 APPLICATION
  • Military Radar Systems
  • Transmit / Receive
订购信息 Ordering Information
  • TGP6336
技术指标
频率(GHz) 插入损耗(dB) +V
6.0 - 18 9 6

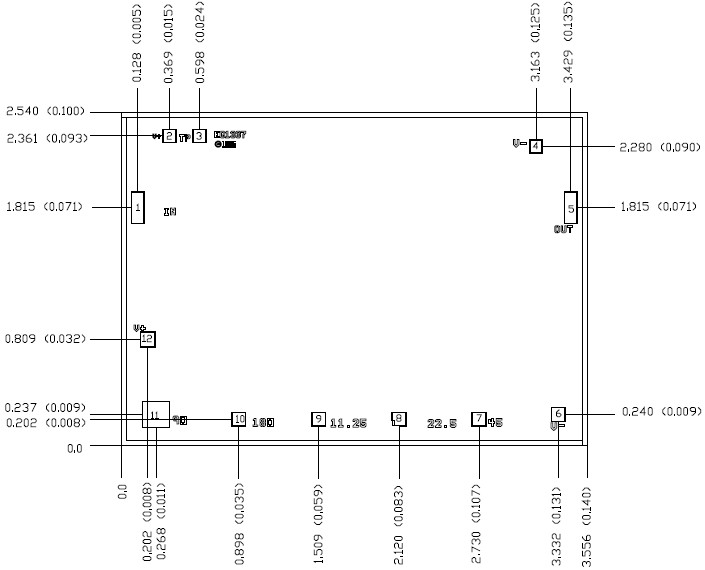

机械图样Mechanical Drawing
TGP6336 机械图样
