TQM2M9016 GPS-SDARS 天线共用器

The TriQuint TQM2M9016 is a module that splits SDARS and GPS signals from a single automotive antenna. The part is housed in a 3.0 x 3.0 x 1.2 mm laminate-based over-molded module. This device provides excellent insertion loss for both the GPS and SDARS signals while effectively protecting each band from the other. This diplexer is designed to match natively to 50 Ohms. No external matching is required.

技术特性
  • GPS / SDARS diplexer
  • Size: 3.0 x 3.0 x 1.2 mm
  • Laminate based over molded module
  • No external matching required for 50 Ohm operation
  • To be qualified for automotive applications
技术指标
尺寸 频段 插入损耗
3.0 x 3.0 x 1.2 GPS / SDARS 0.6 - 0.8

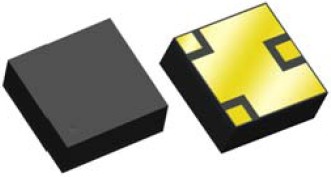

TQM2M9016 产品实物图

TQM2M9016 产品实物图



应用领域 APPLICATION
  • Automotive Telematics
订购信息 Ordering Information
TQM2M9016 GPS/SDARS Diplexer
TQM2M9016 EVB  Evaluation Board

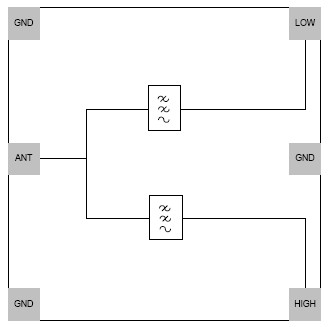

功能框图 Functional Block Diagram

TQM2M9016 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TQM2M9016 数据资料DataSheet下载:pdf Rev.V2 2 页
