TQM700017 集成耦合器的 LTE 功率放大器模块

The TQM700017 is fully matched Power Amplifier Module designed for use in LTE handsets. Its compact 3 x 3 mm package (including coupler) makes it ideal for today’s extremely small data enabled phones. Its RF performance meets the stringent linearity requirements of LTE operation. The TQM700017 is designed on TriQuint's GaAs BiHEMT technology with CuFlip® assembly offering state of the art reliability, temperature stability and ruggedness. The module includes built-in regulator functionality as well as a high performance coupler for maximum integration and space savings.

技术特性
  • Small 10-pin 3 x 3 mm module
  • Integrated high performance coupler
  • Built-in Vreg functionality eliminating the need for external component
  • Low quiescent current provides excellent talk-time
  • Excellent linearity
  • TriQuint's GaAs BiHEMT / CuFlip® PA Technology
  • Optimized for 50 ohm system
  • Lead-free 260°C / RoHS / Halogen-free
订购信息 Ordering Information
  • TQM700017
技术指标
尺寸 频段 特点
3.0 x 3.0 x 0.9 Band 17 LTE, 1-Bit (Hi / Lo Power Modes)
应用领域 APPLICATION
  • LTE Compatible Applications
功能框图 Functional Block Diagram

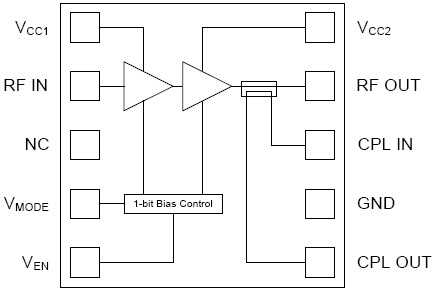

TQM700017 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TQM700017 数据资料DataSheet下载:pdf Rev.V2 2 页
