TQM7M5012H 四波段 GSM / GPRS / EDGE 极化功率放大器模块
The TriQuint TQM7M5012H is an ultra-small (5 x 5 mm) GSM / EDGE Polar power amplifier module (PAM) for handset applications. This module has been optimized for excellent EDGE efficiency, Rx band noise performance, ACPR and EVM in an open loop polar modulation environment at EDGE class E2+ operation while maintaining high GSM / GPRS efficiency. High reliability is assured by utilizing TriQuint's 3rd generation InGaP HBT technology and by TriQuint's proven module design techniques. The low profile, ultra-small package is enabled via TriQuint's CuFlip technology.
技术特性
- Ultra-small 5 x 5 mm form factor
- Halogen-free
- GSM / EDGE multi-mode capability
- 90 dBm typical Rx noise
- 38 dBc typical ACPR (200 kHz)
- 66 dBc typical ACPR (400 kHz)
- 76 dBc typical ACPR (600 kHz)
- 1% typical EVM RMS
- > 50 dB typical dynamic range
- GPRS Class 12
- Internally matched input and output
- RoHS, MSL260C pending
订购信息 Ordering Information
|
应用领域 APPLICATION
- GSM / EDGE / WEDGE Handsets
- GSM / EDGE / WEDGE Wireless Cards
技术指标
| 尺寸(mm) |
频段 |
特点 |
| 5.0 x 5.0 x 1.0 |
GSM850 / 900, DCS / PCS |
-90 dBm Typ Rx Noise, +3 to +8 dBm Pin Nominal |

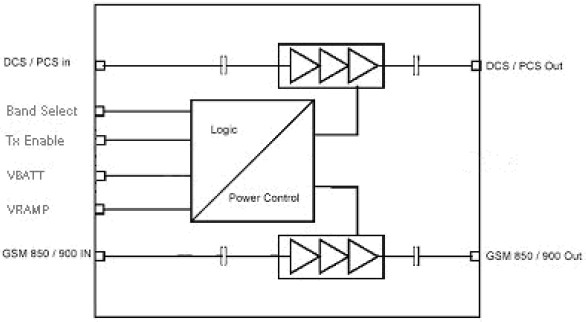

功能框图 Functional Block Diagram
|
