TQM7M5013 四频段GSM / GPRS / EDGE-线性功率放大器模块

The TriQuint TQM7M5013 is an input power controlled, multiple gain state, quad band, GSM / EDGE power amplifier module designed for use with Qualcomm QTR/RTR8600 WEDGE solutions. This highly efficient power amplifier module significantly improves talk time while still providing an easy to use solution in a small form factor. The power amplifier output power is controlled by the input power coming from the transceiver in both GMSK and 8PSK modes and thus does not require a Vramp input. Additionally, the small 5 x 5 mm package requires minimum board space and allows for high levels of phone integration.

技术特性
  • For quad band GSM / EDGE
  • Digital control interface
  • Low current at backed-off power levels
  • Input power controlled - GMSK and 8PSK
  • LB has 4 modes - HP, MP, LP, and ULP
  • HB has 3 modes - HP, LP, and ULP
  • HBT / PHEMT high efficiency technology
  • High-power linearity
  • Standard LB and HB paths
  • 50 Ohm input and output impedance
  • Halogen-free
  • 11 pin package
订购信息 Ordering Information
  • TQM7M5013
应用领域 APPLICATION
  • GSM/EDGE/WEDGE Handsets
  • GSM/EDGE/WEDGE Wireless Cards
技术指标
尺寸(mm) 频段 特点
5.0 x 5.0 x 1.0 GSM850/ 900, DCS / PCS Input Power Controlled for GMSK and 8PSK

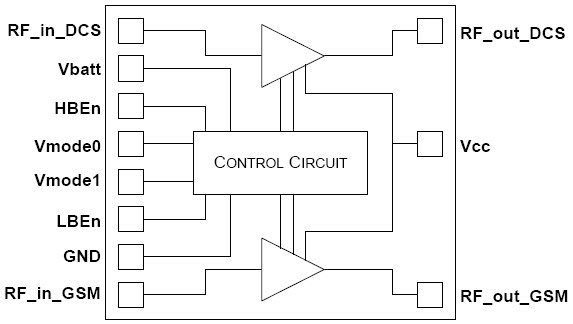

功能框图 Functional Block Diagram

TQM7M5013 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TQM7M5013 数据资料DataSheet下载:pdf Rev.V2 2 页
