TQM7M5022 四频段 GSM / GPRS / EDGE-Polar 功率放大器模块

The TriQuint TQM7M5022 is an ultra-small (5 x 5 mm) GSM / EDGE Polar power ampifier module for handset applications. This module has been optimized for excellent EDGE efficiency, Rx band noise performance, ACPR and EVM in an open loop polar modulation environment at EDGE class E2+ operation while maintaining high GSM / GPRS efficiency. The module's high reliability is assured by utilizing TriQuint's 3rd generation InGaP HBT technology and by TriQuint's proven module design techniques. The low profile, ultra-small package is enabled via TriQuint's CuFlip technology.

技术特性
  • Ultra-small 5 x 5 mm form factor
  • Halogen-free, Antimony-free
  • GSM / EDGE multi-mode capability
  • 87 dBm typical Rx Noise
  • 38 dBc typical ACPR (200 kHz)
  • 66 dBc typical ACPR (400 kHz)
  • 76 dBc typical ACPR (600 kHz)
  • 1% typical EVM RMS
  • > 50 dB typical dynamic range
  • GPRS Class 12
  • Internally matched input and output
  • RoHS, MSL260C pending
订购信息 Ordering Information
  • TQM7M5022
应用领域 APPLICATION
  • GSM/EDGE/WEDGE Handsets
  • GSM/EDGE/WEDGE Wireless Cards
技术指标
尺寸(mm) 频段 特点
5.0 x 5.0 x 1.0 GSM850 / 900, DCS / PCS +3 to +8 dBm Pin Nominal

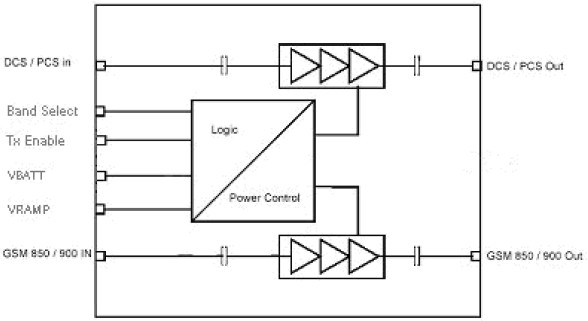

功能框图 Functional Block Diagram

TQM7M5022 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TQM7M5022 数据资料DataSheet下载:pdf Rev.V2 2 页
