TQP3M9035 高线性 LNA 增益模块

The TQP3M9035 is a high linearity low noise gain block amplifier in a low-cost surface-mount package. The LNA is internally matched and has the benefit of having high linearity while providing ultra low noise figure across a broad range of frequencies. This allows the device to be used in both receive and transmit chains for high performance systems. The amplifier uses a high performance E-pHEMT process and only requires an external RF choke and blocking/bypass capacitors for operation from a single +5V supply. The low noise amplifier integrates a shut-down biasing capability to allow for operation for TDD applications. The device is housed in a leadfree/green/RoHS-compliant industry-standard 2x2mm package.

技术特性
  • 50 Ohm Low Noise Gain Block
  • 50-4000 MHz
  • Broadband, internally matched
  • High gain, 16.5 dB @ 1.9 GHz
  • Ultra low Noise Figure, 0.66 dB @ 1.9 GHz
  • 22.5 dBm P1dB
  • Shut-down capability
  • Unconditionally stable
  • Small 2x2 mm package
技术指标
频率(MHz) 测试频率 (MHz) 增益 (dB) OIP3 (dBm) P1dB (dBm) NF (dB) Vcc (V) Icc (mA) 封装形式
50 - 4000 1900 16.5 37 22.5 0.66 5 110 2x2mm

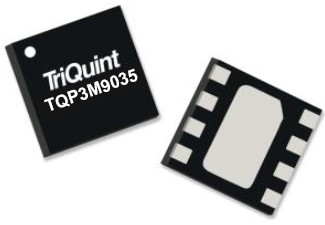

TQP3M9035 产品实物图

TQP3M9035 产品实物图

订购信息 Ordering Information
Part No.  Description
TQP3M9035  High Linearity LNA Gain Block
TQP3M9035-PCB  500.4000 MHz Eval. Board

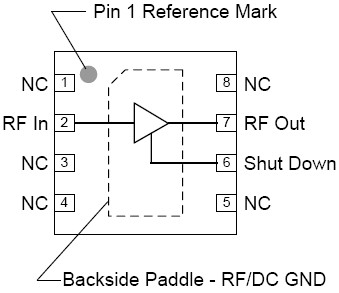

功能框图 Functional Block Diagram

TQP3M9035 功能框图

应用领域 APPLICATION
  • 3G / 4G Wireless Infrastructure
  • WCDMA
  • LTE
  • Repeaters
  • General Purpose Wireless
  • IF Amplifiers
应用技术支持与电子电路设计开发资源下载 版本信息 大小
封装信息:pdf
TQP3M9035材料清单
TQP3M9035布局文件
TQP3M9035 数据资料DataSheet下载:pdf Rev.V2 2 页
