TQP4M3019 CDMA SP3T 开关

The TriQuint TQP4M3019 is a high power antenna switch in a single pole three throw (SP3T) configuration. The die utilizes TriQuint's PHEMT MMIC switch process to provide optimized cross-modulation performance for use in CDMA applications. PHEMT switches are a very low DC current replacement for classic PIN diode based switches. This product is ideally suited to applications where the antenna of a CDMA handset is to be routed to the Cellular duplexer, the PCS duplexer, AWS duplexer and the GPS receiver input. The design is symmetric and broadband allowing the user to assign cellular, PCS, AWS and GPS to ports RF1, RF2 or RF3 as desired.

技术特性

pHEMT GaAs MMIC die
Excellent cross-modulation performance
108 dBm typical @ Cellular
106 dBm @ AWS
105 dBm @ PCS
Excellent ESD rating: 300 V HBM, 2000 V CDM
Low control voltage operation to = 2.6 V
High isolation: 23 dB typical at AWS and 22 dB typ at PCS
Very low control current: 10 uA typical
Low insertion loss: 0.58 dB typical at AWS and 0.6 dB typical at PCS Band
Small footprint 2.0 x 2.0 mm 12 lead STSLP package

应用领域 APPLICATION

CDMA
Cellular and PCS Mobile Phones
GPS

订购信息 Ordering Information

TQP4M3019

技术指标

尺寸(mm)	频段	特性
2.0 x 2.0 x 0.57	Cellular / PCS / AWS	Antenna Routing

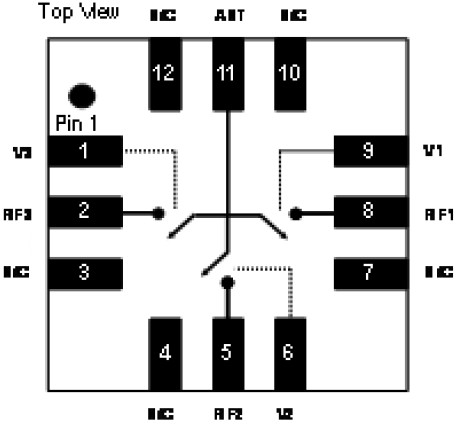

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
TQP4M3019 数据资料DataSheet下载：PDF	Rev.V2	2 页
