TQP4M9083 高线性串行控制的7 Bit, 31.75 dB 数字步进衰减器
The TriQuint TQP4M9083 is a high linearity, low insertion loss, 7-bit, 31.75 dB Digital Step Attenuator (DSA) operating over the 0.4 to 3.5 GHz frequency range. The digital step attenuator uses a single positive 5 V supply and has a serial periphery interface (SPIâ„¢) for changing attenuation states. This product maintains high attenuation accuracy over frequency and temperature. No external matching components are needed for the DSA. The TQP4M9083 is available in a standard lead-free / green / RoHS-compliant 24-pin 4x4mm QFN package. The TQP4M9071 and TQP4M9072 are also available from TriQuint as a footprint and pin compatible 6-bit, 31.5 dB DSA with a parallel control interface and serial control interface respectively.
技术特性
- 0.4 - 3.5 GHz
- 0.25 dB LSB steps to 31.75 dB
- +55 dBm Input IP3
- 1.7 dB insertion loss @ 2.5 GHz
- CMOS compatible serial control interface
- Max attenuation state at initial power up
- 50 Ohm impedance
- +5 V supply voltage
技术指标
| 频率(GHz) |
插入损耗(dB) |
范围(dB) |
P1dB(dBm) |
+V |
| 0.4 - 3.5 |
1.5 |
31.75 |
30 |
5 |

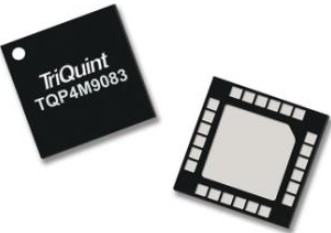

TQP4M9083 产品实物图
|
应用领域 APPLICATION
- Test Equipment and Sensors
- Fixed Wireless
- General Purpose Wireless
- 2G / 3G / 4G Wireless Infrastructure
- Base Stations
- Repeaters
订购信息 Ordering Information
| TQP4M9083 |
7-Bit, 31.75 dB DSA |
| TQP4M9083-PCB |
0.4-3.5GHz Evaluation Board |

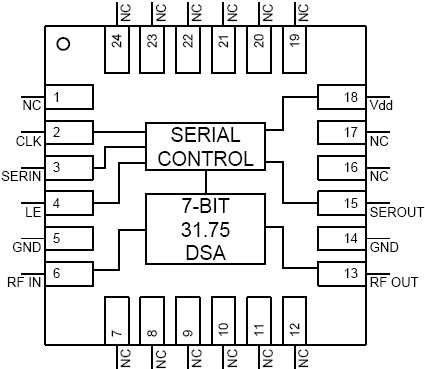

功能框图 Functional Block Diagram
|
