TQS5200 2.4 GHz 和 5 GHz SPDT 开关 MMIC

The TriQuint TQS5200 is a high power, single-pole double-throw (SPDT) switch configured for Tx-Rx or antenna diversity switching applications for the WLAN market. The device exhibits industry-leading insertion loss, isolation and power handling. It requires no fixed supply voltage and operates with a positive control voltage. The switch is manufactured using TriQuint's GaAs pHEMT process and is packaged in an ultra-small, low-profile 1.3 x 2 x 0.4 mm SLIM-7 package.

技术特性
  • Integrated SPDT switch for single-band and dual-band 802.11 a / b / g WLAN systems
  • 1.0 to 6.0 GHz frequency coverage
  • Low insertion loss
  • High isolation
  • Positive control voltage
  • GaAs pHEMT technology
  • Leadless 1.3 x 2.0 x 0.4 mm SMT package
订购信息 Ordering Information
TQS5200  5200 SLIM-7
技术指标
尺寸 (mm) 频段 特性
1.3 x 2.0 x 0.4 802.11 a, b, g SLIM-7 封装
应用领域 APPLICATION
  • 802.11a WLAN
  • 802.11b WLAN
  • 802.11g WLAN
  • Antenna Diversity Switching
  • TX-RX Switching

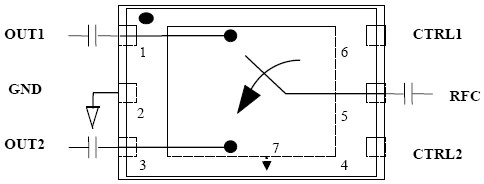

功能框图 Functional Block Diagram

TQS5200 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
TQS5200 数据资料DataSheet下载:PDF Rev.V2 2 页
