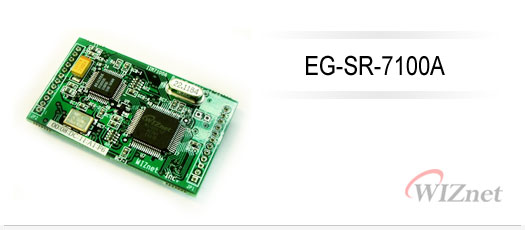

EG-SR-7100A Ethernet Gateway Serial-to-Ethernet
WIZnet Chip Network Module
Feature
- Plus & Play Serial-to-Ethernet Gateway module
- High stability & reliability by W3100A-LF Wiznet Chip (Fully Hardwired TCP/IPstack)
- 10/100Mbps Ethernet Interface, Max. 230Kbps Serial Interface
- Compact 50mm X 30mm size
- Configuration Program : Easy Interface and Powerful Functionality
Specification
| Architecture | TCP/IP | W3100A-LF |
| PHY | RTL8201BL (Ethernet PHY) | |
| Serial | RS232 LVTTL | |
| MCU | AT89C51RC2 - 32K Bytes in-system programmable (ISP) Flash |
|
| Memory | SRAM (32K Bytes) | |
| Network | Interface | 10/100 Base-T Ethernet (Auto detection) |
| Protocol | TCP, UDP, IP, ARP, ICMP, MAC | |
| Serial | Flow Control | None, XON/XOFF, RTS/CTS |
| Serial Format | 8-N-1, 8-O-1, 8-E-1, 7-O-1, 7-E-1 (Data-Parity-Stop bit) |
|
| Speed | 1200bps to 230Kbps | |
| Dimensions | 50mm x 30mm x 8.85mm | |
| Connector Type | 2x12 2mm Pin header array | |
| Input Voltage | 3.3V internal operation, 5V tolerant I/Os | |
| Power Consumption | 150mA | |
| Temperature | -10’C ~ 70’C (Operating), -40~85’C (Storage) | |
| Humidity | 10 ~ 90 % | |
Ordering information
| Model | Description |
| EG-SR-7100A | Serial-to-Ethernet Gateway module |
| EG-SR-7100A-EVB | Evaluation Board for EG-SR-7100A |
技术支持 Download
- RS-485 Reference schematic for EG-SR-7100A .PDF
- Differenes btw EG-SR-7100A & EG-SR-7150MJ .PDF
- Configuration Tool for EG-SR-7100A .ZIP
- Configuration tool Source for the EG-SR-7100A .ZIP
- EG-SR-7100A F/W V4.6 .ZIP
- EG-SR-7100A Brochure .PDF
- EG-SR-7100A reference schematic .ZIP
- EG-SR-7100A User's Manual .PDF
- EG-SR-7100A Module Dimension .PDF

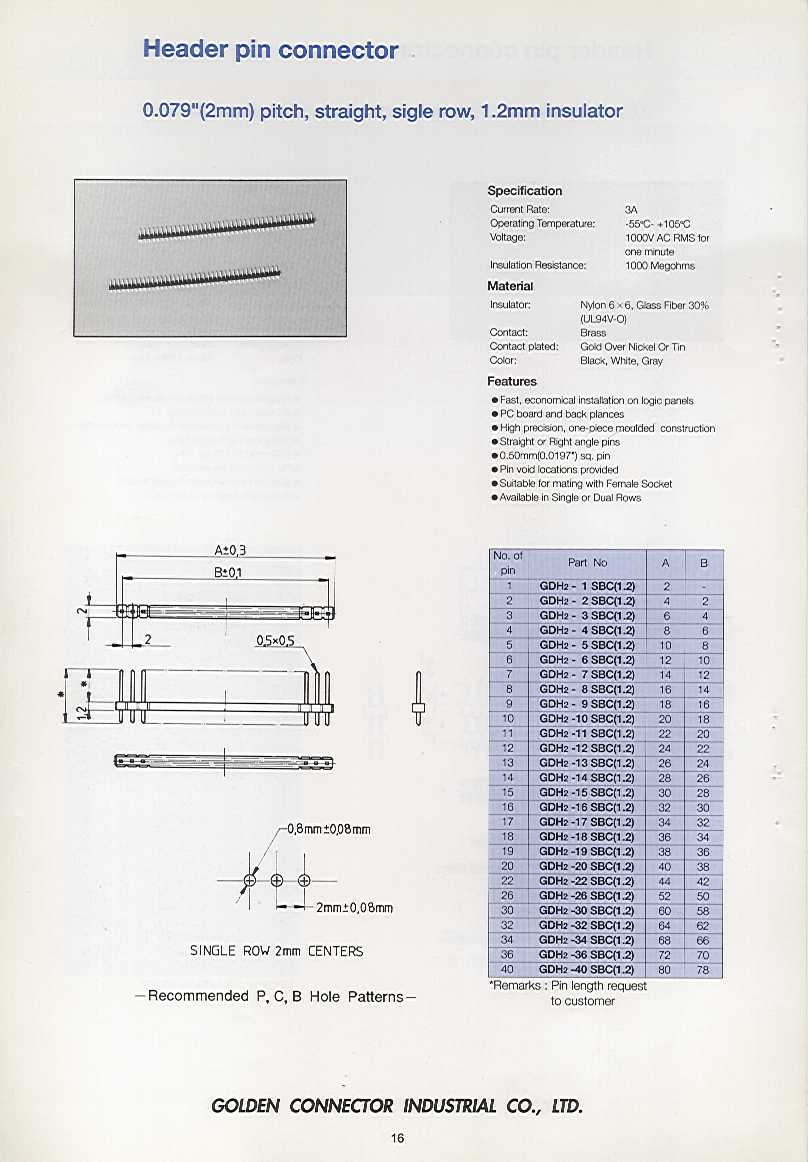

- EG-SR-7100A Connector2 .JPG

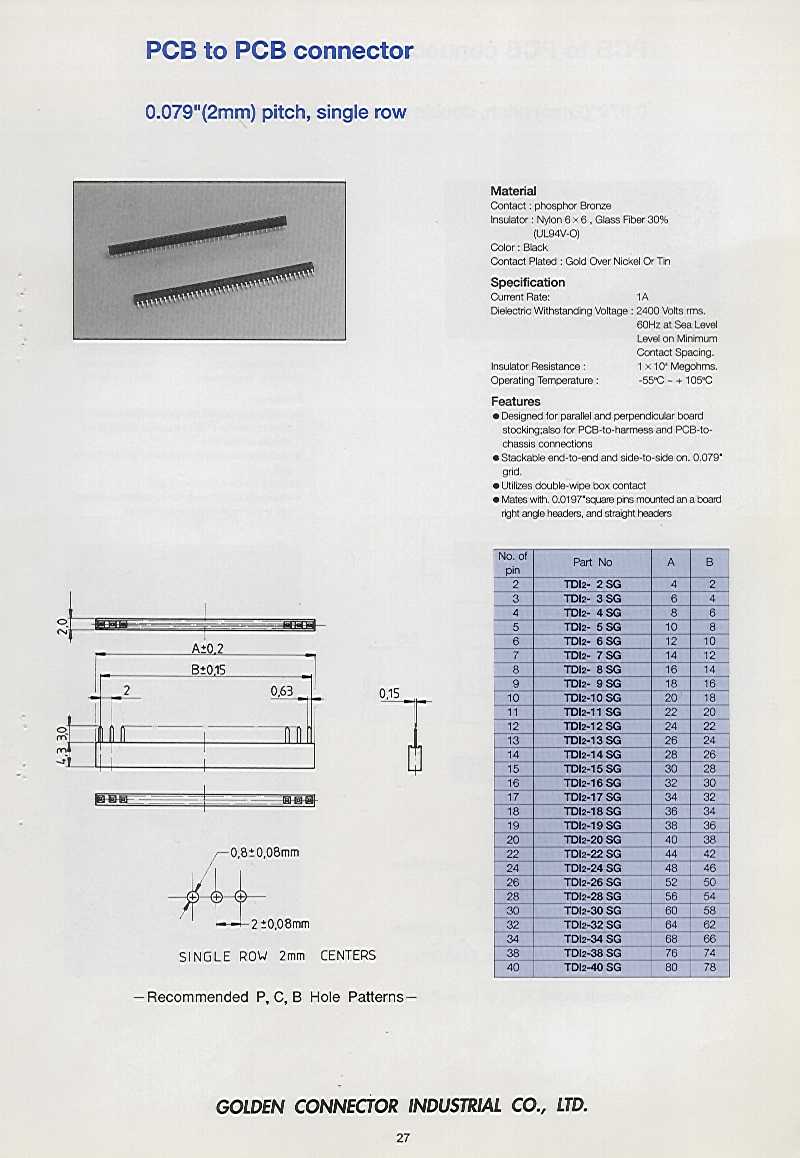

- EG-SR-7100A Connector1.JPG
- EG-SR-7100A Connector Specification
- How To Update Using Flip
- EG-SR-7100A How to update firmware .PDF
- How To Update Using Flip .PDF
- How to capture the packet using Ethereal .PDF
