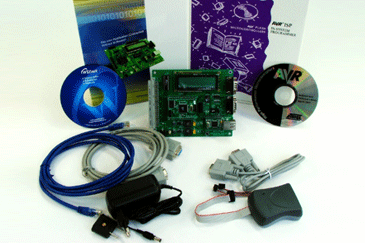

WIZnet Chip Evaluation Board
Feature
- Full-duplex Data Transfer up to 12Mbps with Atmega128
- Internet Application Protocols : ANSI C Source Codes such as DHCP, and etc.
- By using External 96 pin connecters, avr’s all pins can be used of developer.
Specification
Full-duplex Data
Transfer up to 400Kbps with Atmega128 (16MHz, X2
Mode)
Internet Application Protocols: ANSI C
Source Codes such as DHCP, HTTP, DNS,
etc.
| Category | Specification | |
| MB-EVB-X1 | UART | RS232 2 Serial Port (for Debugging & ISP) |
| Display | 16 X 2 Text LCD | |
| PM-A1 | MCU | Atmega128 - 128K Bytes in-system programmable (ISP) Flash - 4K Bytes EEPROM |
| CLOCK | 16MHz Crystal | |
| External Memory | SRAM (32K Bytes) | |
| PAL | 16v8 (for address decoder) | |
| TCP/IP | W3100A-LF | |
| PHY | RTL8201BL(RealTek), 10/100 BaseT(X) Auto Negoation | |
| NM7010A | Mag Jack | RD1-1D5B1A1A(UDE), Integrated Transformer(1:1) |
Development Environment
Compiler : All source codes are developed by
GCC Compiler
Firmware programming : ISP
Cable, Ponyprog Program of LancOS (http://www.LancOS.com)
Contents
 |
- MB-EVB-X1 + PM-A1 + NM7010A |
| - CD (Source codes, Schematics, Manuals) | |
| - 12V 500mA Power Adapter | |
| - Serial cable, UTP cable | |
| - AVR ISP cable (Option) |
Ordering information
| Part Number | Description |
| EVB-A1 | MB-EVB-X1 + PM-A1 + NM7010A |
