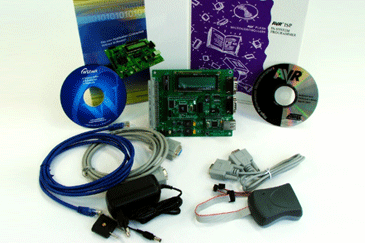

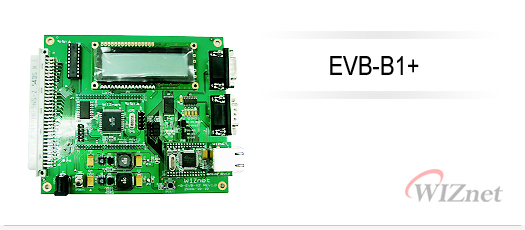

WIZnet Chip Evaluation Board
Feature
- Data Transfer up to 12Mbps with Atmega128(16MHz)
- Internet Application Protocols : ANSI C Source Codes such as TCP, UDP, DHCP
- By using external 96pin connectors, AVR’s all pins can be used coping with developer’s needs
- Available of testing SPI Interface
- Provides various application source codes : Loopback, Webserver, Ping
- Support ISP & JTAG Interface
Specification
| Category | Specification | |
| MB-EVB-X2 | UART | RS232 2 Serial Port |
| Display | Text LCD (Gray, 2x16) | |
| PM-A1 | MCU | Atmega128 - 128K Bytes Flash - 4K Bytes EEPROM |
| CLOCK | 8MHz Crystal | |
| External Memory | SRAM (32K Bytes) | |
| PAL | 16v8 (for address decoder) | |
| NM7010B+ | TCP/IP | W3150A+ |
| PHY | RTL8201CP(Ethernet PHY) | |
| Mag Jack | RD1-125BAG1A |
Development Environment
Compiler : All source codes are developed by
GCC Compiler
Firmware programming : ISP
Cable
Contents
 |
- MB-EVB-X1 + PM-A1 + NM7010B |
| - CD (Source codes, Schematics, Manuals) | |
| - 12V 500mA Power Adapter | |
| - Serial cable, UTP cable | |
| - AVR ISP cable |
Ordering information
| Part Number | Description |
| EVB-B1 | EVB-B1+, MB-EVB-X2 + PM-A1 + NM7010B+ |
| AVR ISP cable |
技术支持 Download
- EVB-B1+ Firmware .zip
- EVB-B1+ Address Decode Source .zip
- EVB-B1+ Schematic .zip
- EVB-B1+ Part List .zip
- EVB-B1+ User's Manual .PDF
- EVB-B1 Partlists .zip
- EVB-B1 Schematics .zip
- AX1 program .zip
- Rom File Maker .zip
- EVB-B1 Address decode Source .zip
- EVB-B1 Firmware code .zip
- EVB-B1 Users Manual .PDF
- How to capture the packet using Ethereal .PDF
