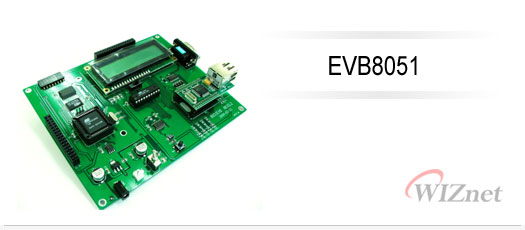

WIZnet Chip Evaluation Board
Feature
Full-duplex Data Transfer up to 1Mbps with
AT89C51RD2 (16MHz, X2 Mode)
Internet
Application Protocols: ANSI C Source Codes such
as DHCP, HTTP, DNS,
etc.
Specification
| Category | Specification | |
| MB-EVB8051 | MCU | AT89C51RD2 - 64K Bytes in-system programmable (ISP) Flash |
| CLOCK | 16MHz Crystal (up to 30Mhz) | |
| External Memory | SRAM (32K Bytes) | |
| EEPROM | 24C02 (for storing network information) | |
| UART | RS232 1 Serial Port (for Debugging & ISP) | |
| Display | Text LCD (Gray, 2X16) | |
| PAL | 16v8 (for address decoder) | |
| NM7010A | TCP/IP | W3100A-LF |
| PHY | RTL8201BL (Ethernet PHY) | |
| Mag Jack | LU1T516-43 (Transformer + RJ45 + 2 LEDs) |
Development Environment
Compiler : All source codes are developed by Keil Compiler
Firmware programming : Flip Tool supplied by Atmel
Contents
 |

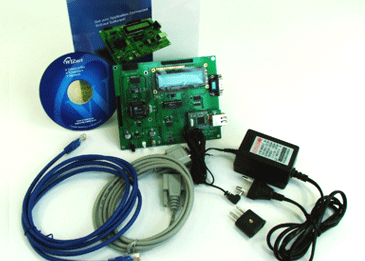

- MB-EVB8051, NM7010A |
| - CD (Source codes, schematics, Manuals) | |
| - 5V 500mA Power Adapter | |
| - Serial cable, UTP cable |
Ordering information
| Part Number | Description |
| EVB8051 | MB-EVB8051 + NM7010A |
技术支持 Download
- AX1 Program .zip
- EVB8051 Schematic .PDF
- EVB8051 Part List .PDF
- EVB8051 Address Decoder .zip
- EVB8051 Sample Code (I2C) .zip
- EVB8051 Sample Code (Indirect) .zip
- EVB8051 Sample Code (Direct) .zip
- EVB8051 User Manual .PDF
- How to capture the packet using Ethereal .PDF
