74AHC126:标准逻辑

Part NumberData SheetSPICE ModelNumber of GatesFamilyVCC Min (V)VCC Max (V)tpd max @ (1.5V) (ns)tpd max @ (1.8V) (ns)tpd max @ (2.5V) (ns)tpd max @ (3.3V) (ns)tpd max @ (5.0V) (ns)Input/ Output Current
74AHC12674AHC126.pdf-4AHC25.5---85.58
Description

The 74AHC126 provides provides four independent buffer gates with 3-state outputs. Each buffer has a separate enable pin that when driven with a low logic level places the corresponding output in the high impedance state. The device is designed for operation with a power supply range of 2.0V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment.

Application
  • General Purpose Logic
  • Wide array of products such as: - PCs, networking, notebooks, netbooks - Computer peripherals, hard drives, CD/DVD ROM - TV, DVD, DVR, set top box
订购型号
  • 74AHC126S14-13
  • 74AHC126T14-13

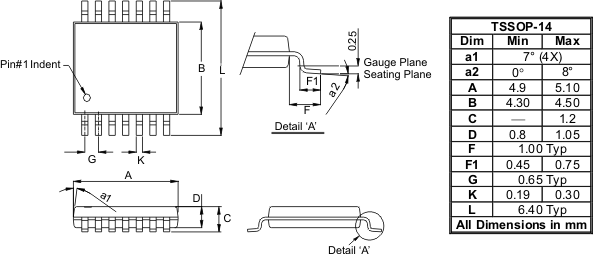

TSSOP-14
SO-14
