LT1112 - Dual/Quad Low Power Precision, Picoamp Input Op Amps

The LT®1112 dual and LT1114 quad op amps achieve a new standard in combining low cost and outstanding precision specifications.

The performance of the selected prime grades matches or exceeds competitive devices. In the design of the LT1112/ LT1114 however, particular emphasis has been placed on optimizing performance in the low cost plastic and SO packages. For example, the 75µV maximum offset voltage in these low cost packages is the lowest on any dual or quad non-chopper op amp.

The LT1112/LT1114 also provide a full set of matching specifications, facilitating their use in such matching dependent applications as two and three op amp instrumentation amplifiers.

Another set of specifications is furnished at ±1V supplies. This, combined with the low 320µA supply current per amplifier, allows the LT1112/LT1114 to be powered by two nearly discharged AA cells.

Protected by U.S. Patents 4,575,685; 4,775,884 and 4,837,496

特点
  • Offset Voltage – Prime Grade: 60µV Max
  • Offset Voltage – Low Cost Grade(Including Surface Mount Dual/Quad): 75µV Max
  • Offset Voltage Drift: 0.5µV/°C Max
  • Input Bias Current: 250pA Max
  • 0.1Hz to 10Hz Noise: 0.3µVP-P, 2.2pAP-P
  • Supply Current per Amplifier: 400µA Max
  • CMRR: 120dB Min
  • Voltage Gain: 1 Million Min
  • Guaranteed Specs with ±1.0V Supplies
  • Guaranteed Matching Specifications
  • SO-8 Package – Standard Pinout
  • LT1114 in Narrow Surface Mount Package
典型应用

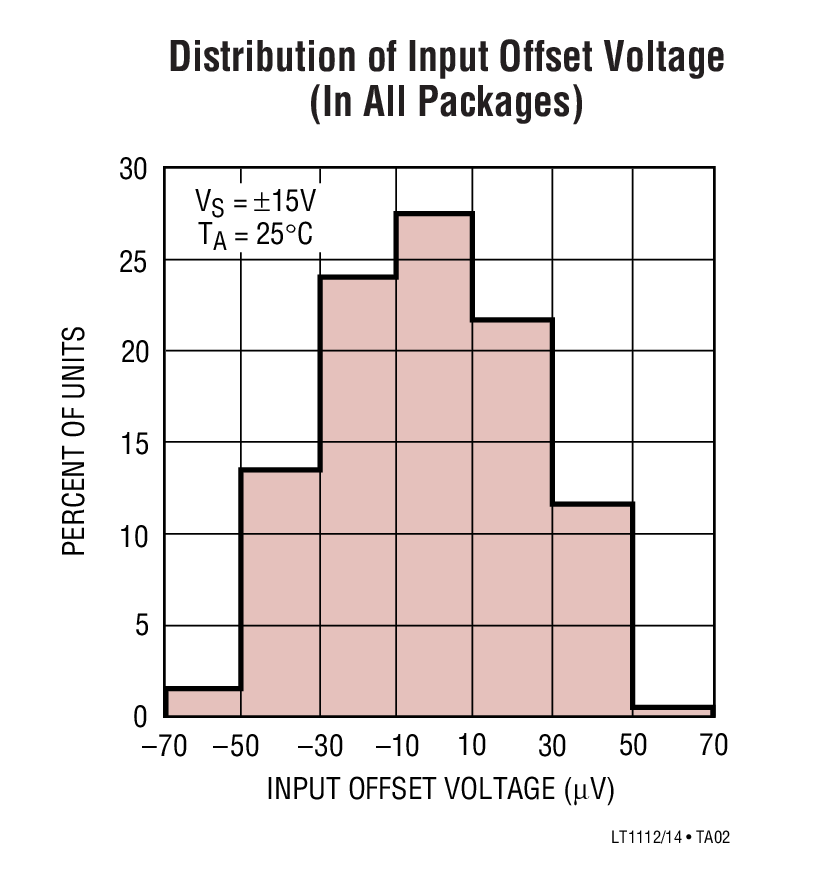

LT1112 Typical Application
LT1112 Typical Application
应用
  • Picoampere/Microvolt Instrumentation
  • Two and Three Op Amp Instrumentation Amplifers
  • Thermocouple and Bridge Amplifiers
  • Low Frequency Active Filters
  • Photo Current Amplifiers
  • Battery-Powered Systems
封装信息

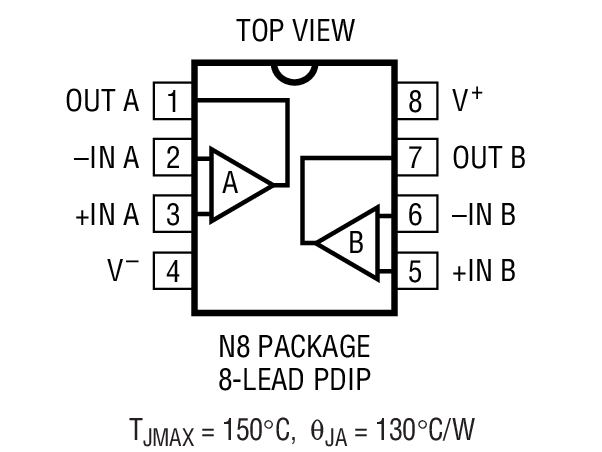

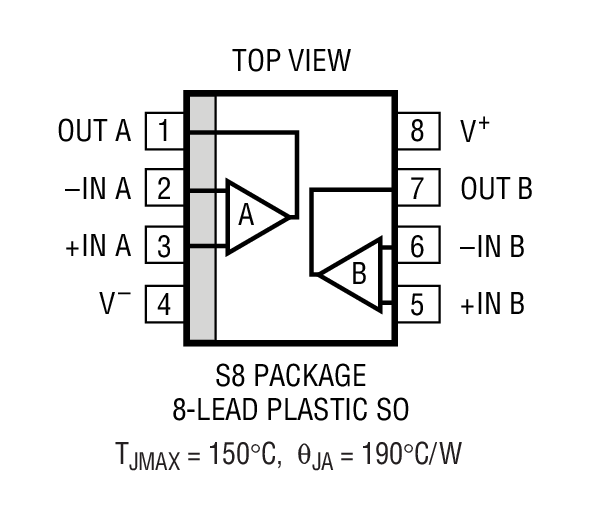

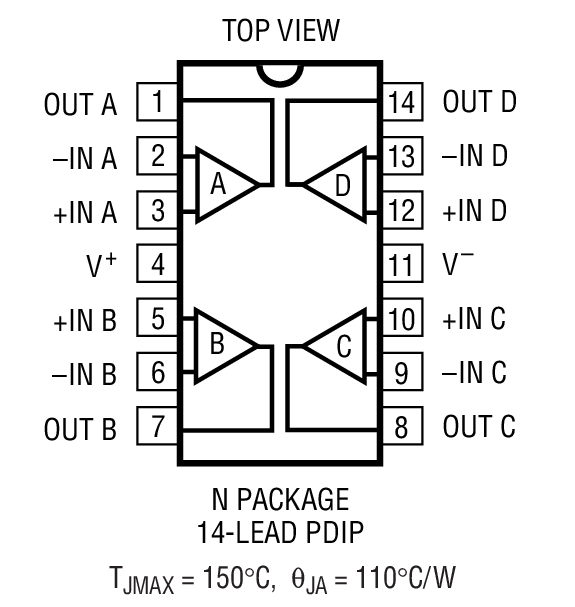

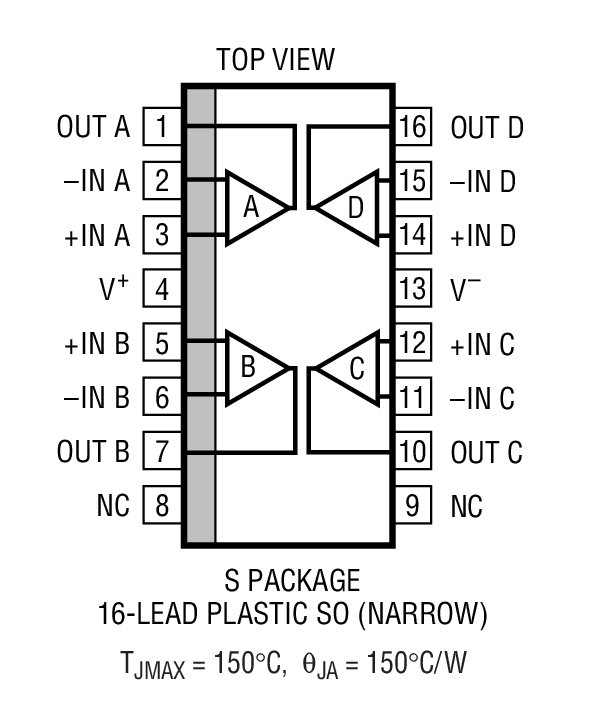

LT1112 Package Drawing
LT1112 Package Drawing
LT1112 Package Drawing
LT1112 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LT1112ACN8#PBFN-8C$4.17$3.40
LT1112CN8#PBFN-8C$2.92$2.35
LT1112IN8#PBFN-8I$3.10$2.55
LT1112IS8#PBFSO-8I$3.30$2.75
LT1112IS8#TRPBFSO-8I$2.81
LT1112MJ8CERDIP-8M$28.80
LT1112MPS8SO-8MP
LT1112MPS8#PBFSO-8MP$12.01$7.78
LT1112MPS8#TRSO-8MP
LT1112MPS8#TRPBFSO-8MP$12.01$7.78
LT1112S8#PBFSO-8C$3.25$2.55
LT1112S8#TRPBFSO-8C$2.61
