LT1161 - Quad Protected High-Side MOSFET Driver

Also included in each switch channel is a drain sense comparator that is used to sense switch current. When preset current level is exceeded, the switch is turned off. The switch remains off for a period of time set by an external timing capacitor and then automatically attempts to restart. If the fault is still present, this cycle repeats until the fault is removed, thus protecting the MOSFET.

The LT1161 has been specifically designed for harsh operating environments such as industrial, avionics, and automotive applications where poor supply regulation and/or transients may be present. The device will not sustain damage from supply voltages of -15V to 60V.

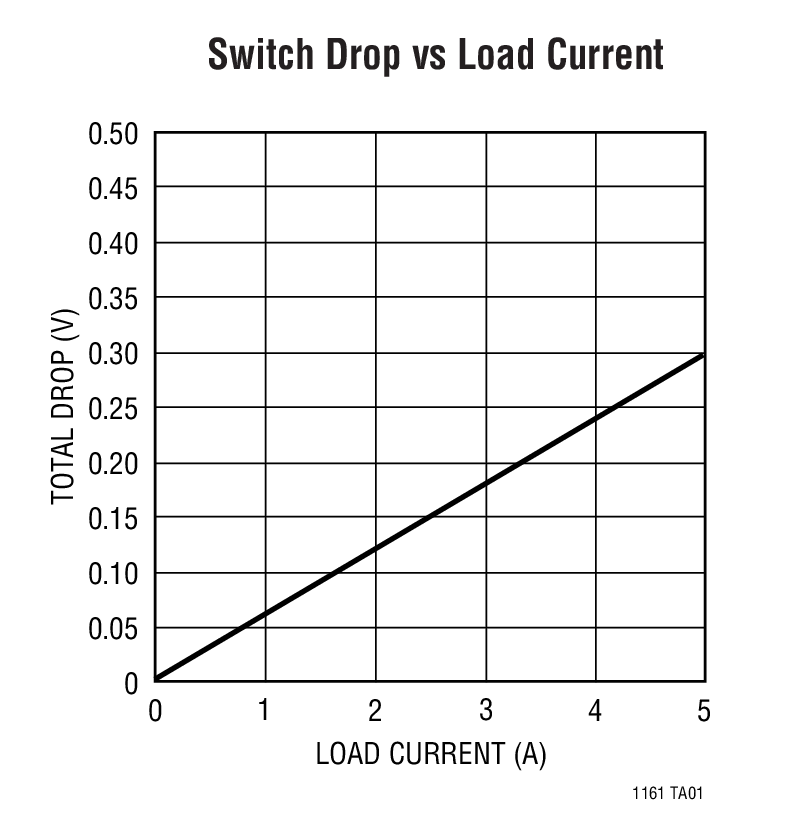

特点 8V to 48V Power Supply Range Protected from -15V to 60V Supply Transients Fully Enhances N-Channel MOSFET Switches Individual Short-Circuit Protection Individual Automatic Restart Timers Programmable Current Limit, Delay Time, and Auto-Restart Period Voltage-Limited Gate Drive Defaults to OFF State with Open Input Flowthrough Input to Output Pinout Available in 20-Lead DIP or SOL Package 典型应用

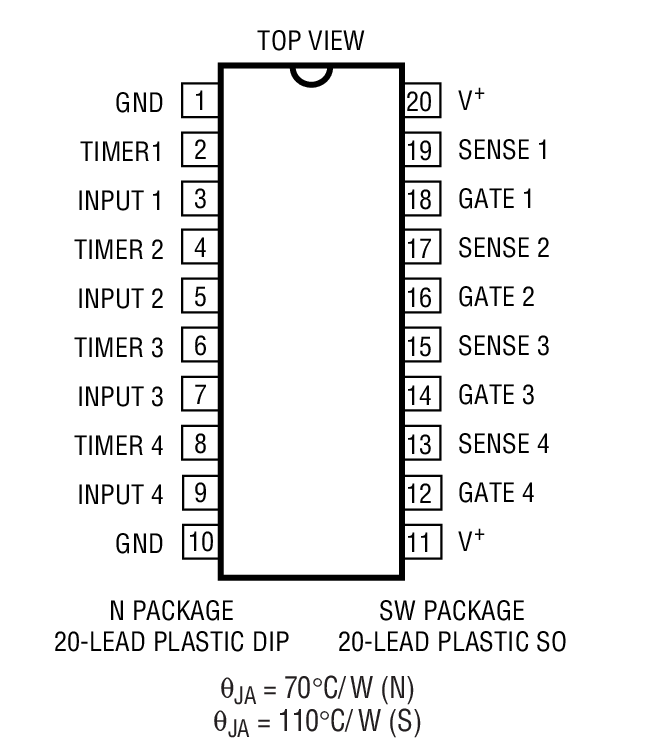

应用 Industrial Control Avionics Systems Automotive Switches Stepper Motor and DC Motor Control Electronic Circuit Breaker 封装信息
