LT1363 - 70MHz, 1000V/µs Op Amp

The LT1363 is a high speed, very high slew rate operational amplifier with excellent DC performance. The LT1363 features reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier. The amplifier is a single gain stage with outstanding settling characteristics which makes the circuit an ideal choice for data acquisition systems. The output drives a 150 Ohms load to ±7.5V with ±15V supplies and to ±3.4V on ±5V supplies. The amplifier is also capable of driving any capacitive load which makes it useful in buffer or cable driver applications. The LT1363 is a member of a family of fast, high performance amplifiers using this unique topology and employing Linear Technology Corporation's advanced bipolar complementary processing. For dual and quad amplifier versions of the LT1363 see the LT1364/1365 data sheet. For 50MHz amplifiers with 4mA of supply current per amplifier see the LT1360 and LT1361/1362 data sheets. For lower supply current amplifiers with bandwidths of 12MHz and 25MHz see the LT1354 through LT1359 data sheets. Singles, duals, and quads of each amplifier are available.

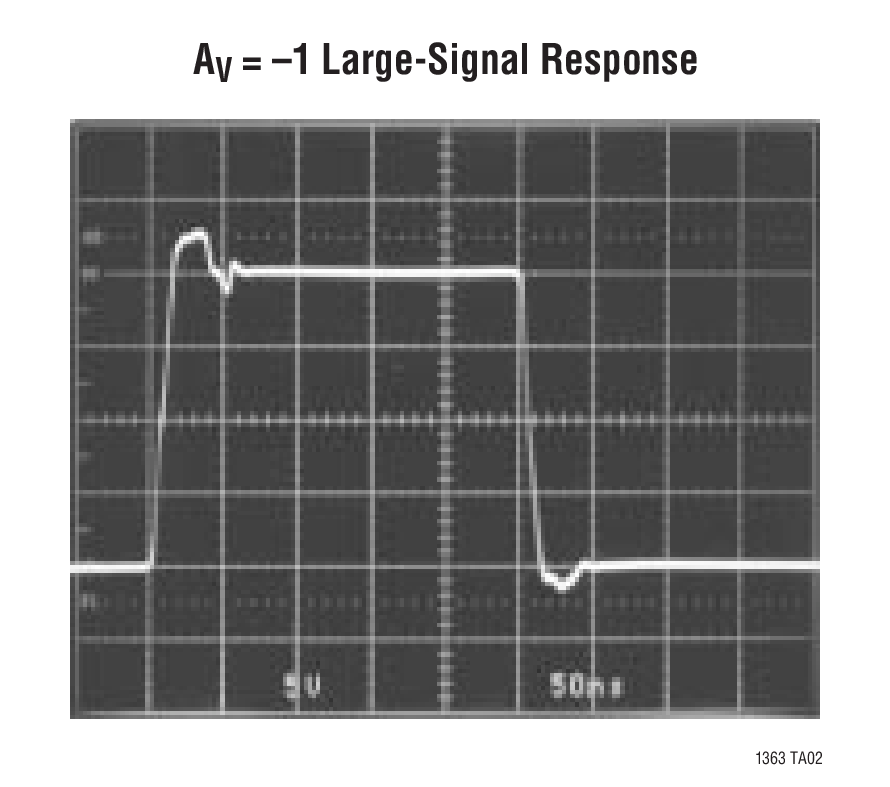

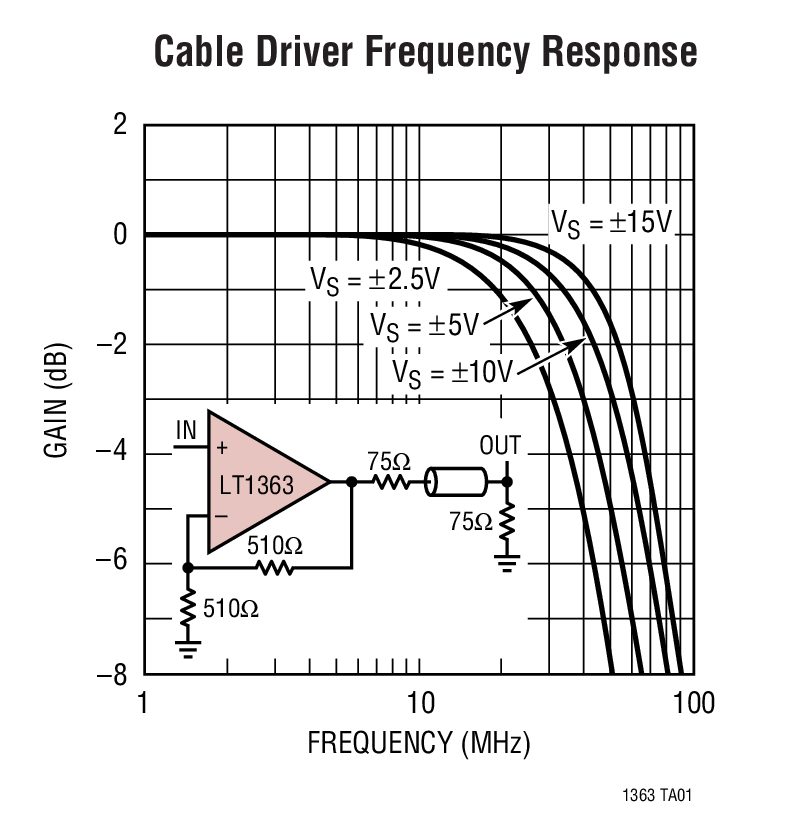

特点 70MHz Gain-Bandwidth 1000V/µs Slew Rate 7.5mA Maximum Supply Current 9nV/ rt Hz Input Noise Voltage Unity Gain Stable C-LoadTM Op Amp Drives All Capacitive Loads 1.5mV Maximum Input Offset Voltage 2µA Maximum Input Bias Current 350nA Maximum Input Offset Current 50mA Minimum Output Current ±7.5V Minimum Output Swing into 150 ohms 4.5V/mV Minimum DC Gain, RL=1k 50ns Settling Time to 0.1%, 10V Step 0.06% Differential Gain, AV=2, RL=150 ohms 0.04° Differential Phase, AV=2, RL=150 ohms Specified at ±2.5V, ±5V, and ±15V 典型应用

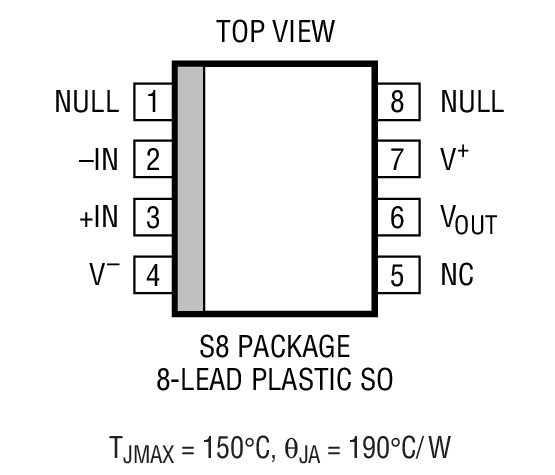

应用 Wideband Amplifiers Buffers Active Filters Video and RF Amplification Cable Drivers Data Acquisition Systems 封装信息

演示电路板
