LT3028 - Dual 100mA/500mA Low Dropout, Low Noise, Micropower Regulators with Independent Inputs

The LT3028 regulator is stable with output capacitors as low as 1µF for the 100mA output and 3.3µF for the 500mA output. Small ceramic capacitors can be used without the series resistance required by other regulators.

Internal protection circuitry includes reverse-battery protection, current limiting and thermal limiting protection. The device is available as an adjustable device with a 1.22V reference voltage. The LT3028 regulator is available in the thermally enhanced 16-lead TSSOP and 16-lead, low profile (5mm × 3mm × 0.75mm) DFN packages.

Protected by U.S. Patents including 6118263, 6144250.

特点

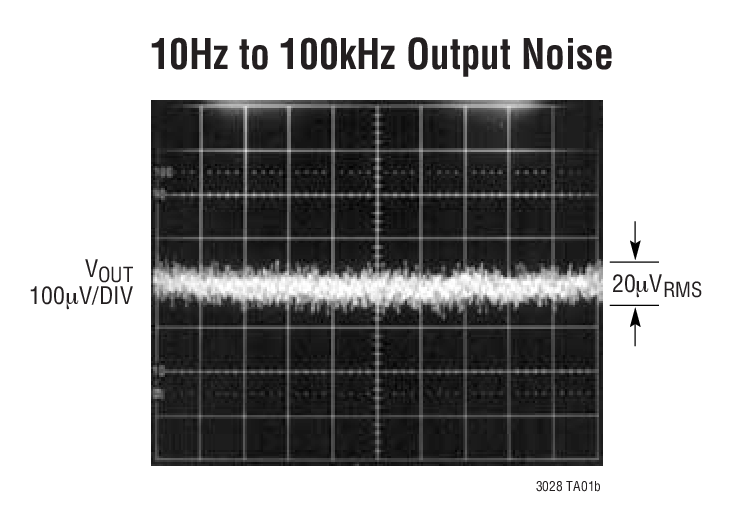

  • Low Noise: 20µVRMS (10Hz to 100kHz)
  • Low Quiescent Current: 30µA/Output
  • Independent Inputs
  • Wide Input Voltage Range: 1.8V to 20V
  • Output Current: 100mA/500mA
  • Very Low Shutdown Current: <0.1µA
  • Low Dropout Voltage: 300mV/320mV at 100mA/500mA
  • Adjustable Outputs from 1.22V to 20V
  • Stable with as Low as 1µF/3.3µF Output Capacitor
  • Stable with Aluminum, Tantalum or Ceramic Capacitors
  • Reverse-Battery Protected
  • No Protection Diodes Needed
  • Overcurrent and Overtemperature Protected
  • Tracking/Sequencing Capability
  • Thermally Enhanced 16-Lead TSSOP and 16-Lead (5mm × 3mm) DFN Packages
典型应用

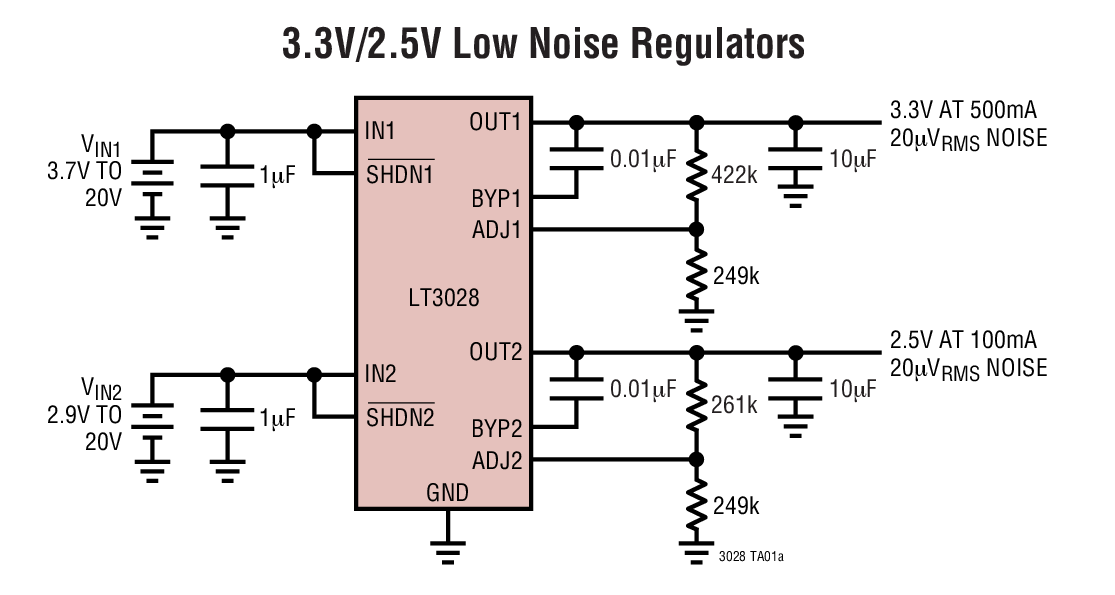

LT3028 Typical Application
LT3028 Typical Application
应用
  • Cellular Phones
  • Pagers
  • Battery-Powered Systems
  • Frequency Synthesizers
  • Wireless Modems
  • Tracking/Sequencing Power Supplies
封装信息

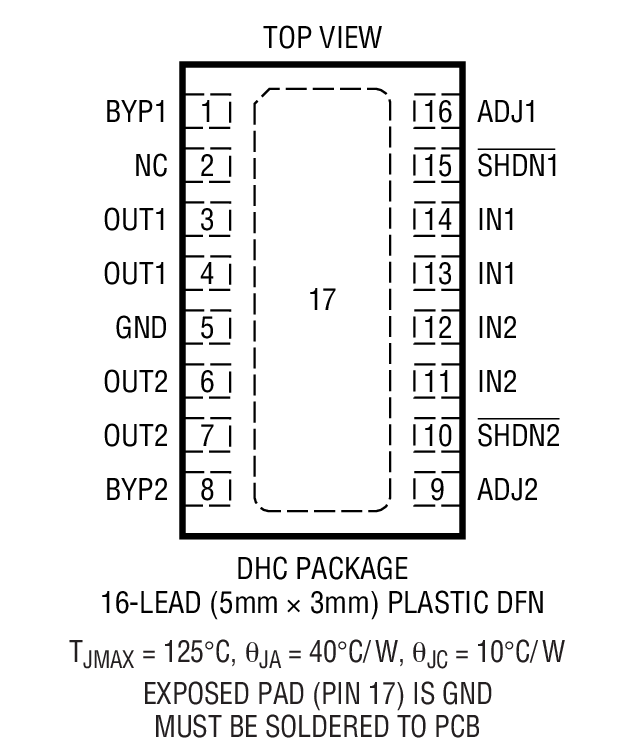

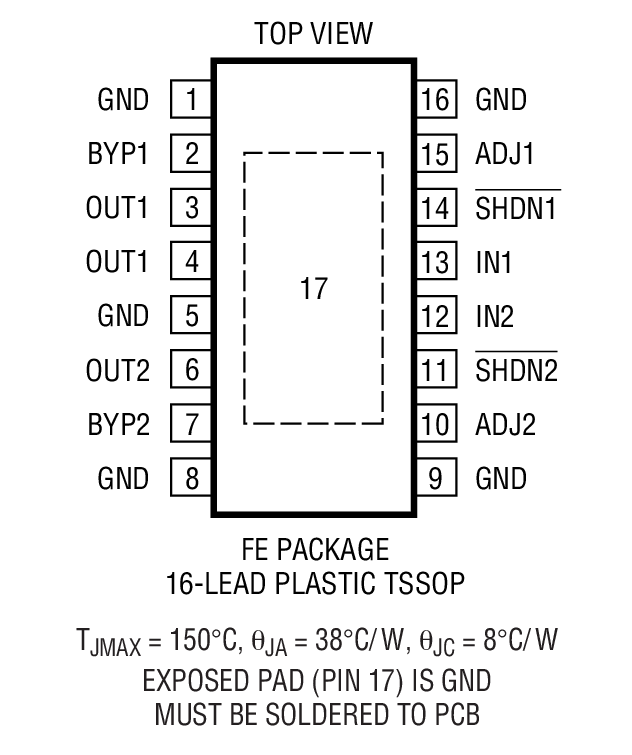

LT3028 Package Drawing
LT3028 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LT3028EDHC#PBF5x3 DFN-16E$3.15$2.65
LT3028EDHC#TRPBF5x3 DFN-16E$2.75
LT3028EFE#PBFTSSOP-16E$3.04$2.55
LT3028EFE#TRPBFTSSOP-16E$2.67
LT3028IDHC#PBF5x3 DFN-16I$3.78$3.18
LT3028IDHC#TRPBF5x3 DFN-16I$3.28
LT3028IFE#PBFTSSOP-16I$3.64$3.06
LT3028IFE#TRPBFTSSOP-16I$3.18
演示电路板
器件型号描述价格
DC832ALT3028DHC Demo Board | Dual Input, Dual Output Linear Regulator, 2.3V ≤ VIN ≤ 20V, Vout1 = 2.5V/3.3V/5V @ 500mA, Vout2 = 2.5V/3.3V/5V @ 100mA$125.00
