LT3150 - Fast Transient Response, Low Input Voltage, Very Low Dropout Linear Regulator Controller

The LT®3150 drives a low cost external N-channel MOSFET as a source follower to produce a fast transient response, very low dropout voltage linear regulator. Selection of the N-channel MOSFET RDS(ON) allows dropout voltages below 300mV for low VIN to low VOUT applications.

The LT3150 includes a fixed frequency boost regulator that generates gate drive for the N-channel MOSFET. The internally compensated current mode PWM architecture combined with the 1.4MHz switching frequency permits the use of tiny, low cost capacitors and inductors.

The LT3150’s transient load performance is optimized with ceramic output capacitors. A precision 1.21V reference accommodates low voltage supplies.

Protection includes a high side current limit amplifier that activates a fault timer circuit. A multifunction shutdown pin provides either current limit time-out with latchoff, overvoltage protection or thermal shutdown. Independent shutdown control of the boost converter provides on/off and sequencing control of the LDO output voltage.

特点
  • Fast Transient Response Optimized with Ceramic Output Capacitors
  • FET RDS(ON) Defines Dropout Voltage
  • ±1% Reference Tolerance Over Temperature
  • Multifunction LDO Shutdown Pin with Latchoff
  • Fixed Frequency 1.4MHz Boost Converter Generates MOSFET Gate Drive
  • Internally Compensated Current Mode PWM
  • Boost Converter Uses Tiny Capacitors and Inductor
  • Independent Boost Converter Shutdown Control Permits LDO Output Voltage Supply Sequencing
  • 16-Lead SSOP Package
典型应用

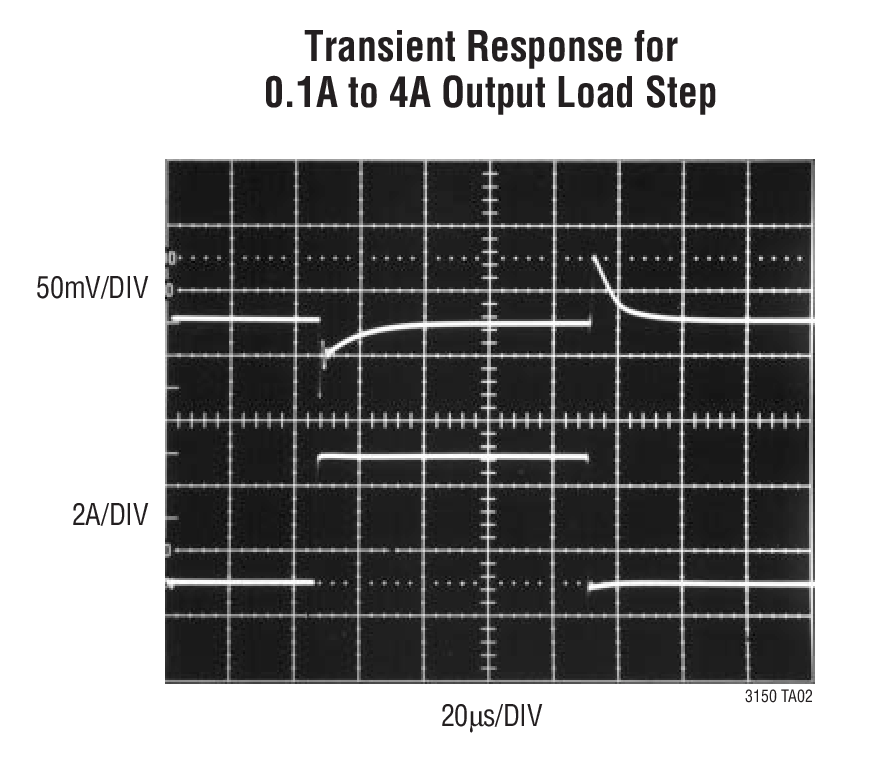

LT3150 Typical Application
LT3150 Typical Application
应用
  • Microprocessor, ASIC and I/O Supplies
  • Very Low Dropout Input-to-Output Conversion
  • Logic Termination Supplies
封装信息

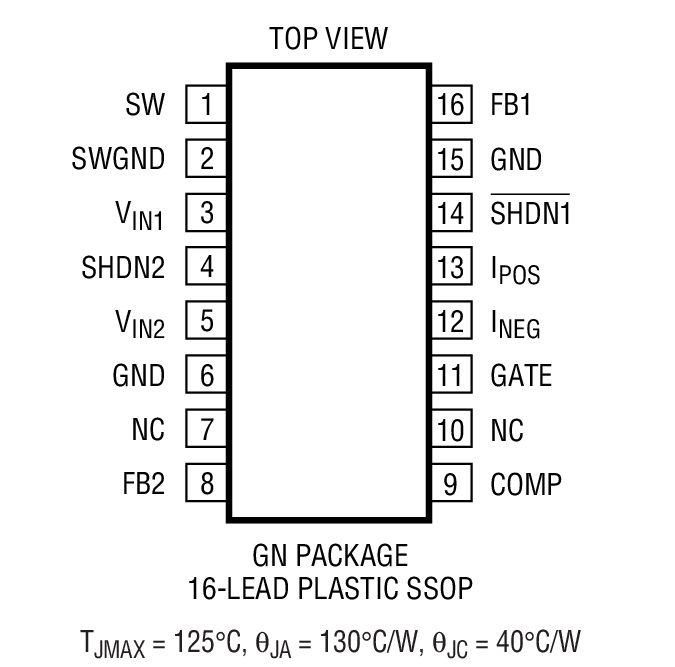

LT3150 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LT3150CGN#PBFSSOP-16C$5.29$3.70
LT3150CGN#TRPBFSSOP-16C$3.76
演示电路板
器件型号描述价格
DC534ALT3150CGN Demo Board | Low Voltage LDO Linear Regulator Controller, 1.1V ≤ VIN ≤ 10V, Vout = 1.2V/1.5/1.8V @ 4A$100.00
