LTC1164-6 - Low Power 8th Order Pin Selectable Elliptic or Linear Phase Lowpass Filter

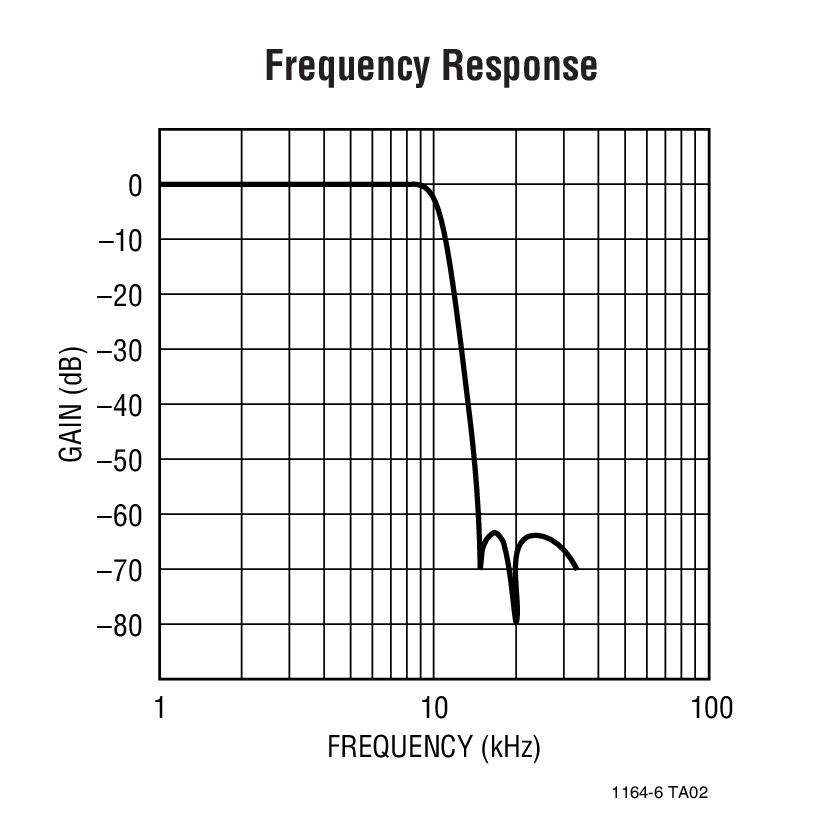

The LTC1164-6 provides an elliptic lowpass rolloff with stopband attenuation of 64dB at 1.44 f CUTOFF and an fCLK-to- fCUTOFF ratio of 100:1 (pin10 to V - ).For a ratio of 100:1, fCUTOFF can be clock-tuned up to 10kHz. For a fCLK-to-fCUTOFF ratio of 50:1 (pin 10 to V + ), the LTC1164-6 provides an elliptic lowpass filter with fCUTOFF frequencies up to 20kHz. When pin 10 is connected to ground, the LTC1164-6 approximates an 8th order linear phase re-sponse with 65dB attenuation at 4.5 f -3dB and fCLK/f-3dB ratio of 160:1. The LTC1164-6 is pin compatible with the LTC1064-1.

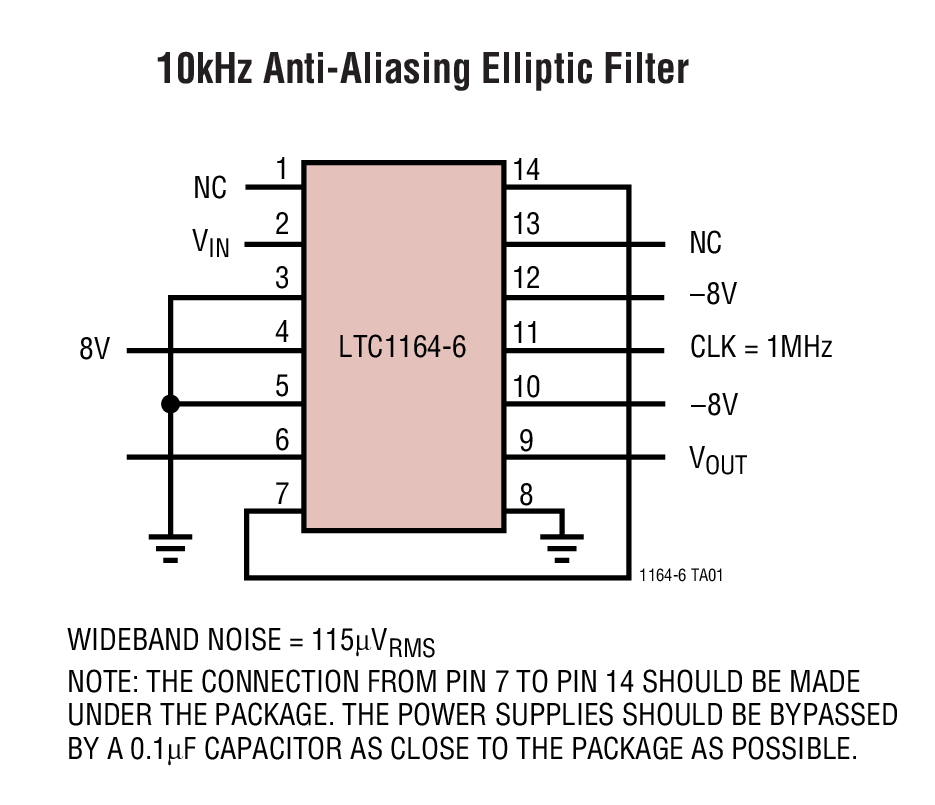

特点 8th Order Pin Selectable Elliptic or Bessel Filter in a 14-Pin Package 4mA Supply Current with ±5V Supplies 64dB Attenuation at 1.44 fCUTOFF (Elliptic Response) fCUTOFF up to 30kHz (50:1 fCLK to fCUTOFF Ratio) 110µVRMS Wideband Noise with ±5V Supplies Operates at Single 5V Supply with 1VRMS Input Range Operates up to ±8V Supplies TTL/CMOS Compatible Clock Input No External Components 典型应用

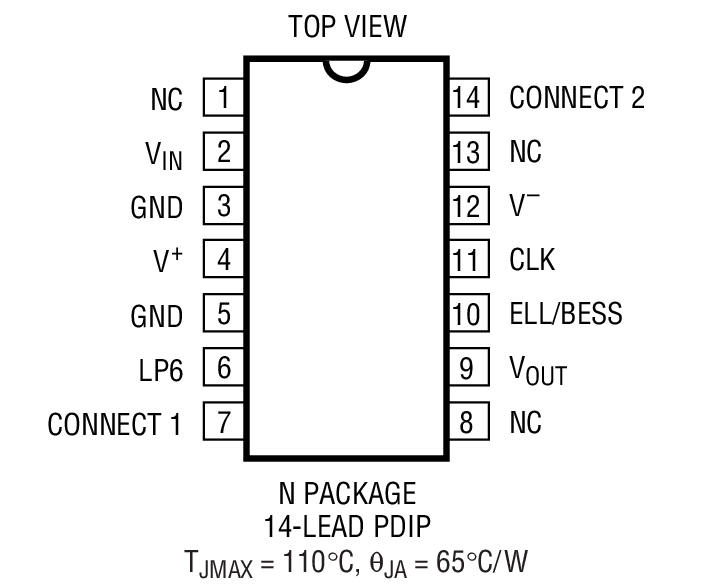

应用 Anti-Aliasing Filters Battery-Operated Instruments Telecommunication Filters 封装信息
