LTC1344A - Software-Selectable Cable Terminator

The LTC®1344A features six software-selectable multiprotocol cable terminators. Each terminator can be configured as an RS422 (V.11) 100ohms minimum differential load, V.35 T-network load or an open circuit for use with RS232 (V.28) or RS423 (V.10) transceivers that provide their own termination. When combined with the LTC1543 and LTC1544, the LTC1344A forms a complete software-selectable multiprotocol serial port. A data bus latch feature allows sharing of the select lines between multiple interface ports.

The LTC1344A is similar to the LTC1344 except for a difference in the Mode Selection table.

The LTC1344A is available in a 24-lead SSOP.

特点
  • Software-Selectable Cable Termination for:
  • RS232 (V.28)
  • RS423 (V.10)
  • RS422 (V.11)
  • RS485
  • RS449
  • EIA530
  • EIA530-A
  • V.35
  • V.36
  • X.21
  • Outputs Won’t Load the Line with Power Off
典型应用

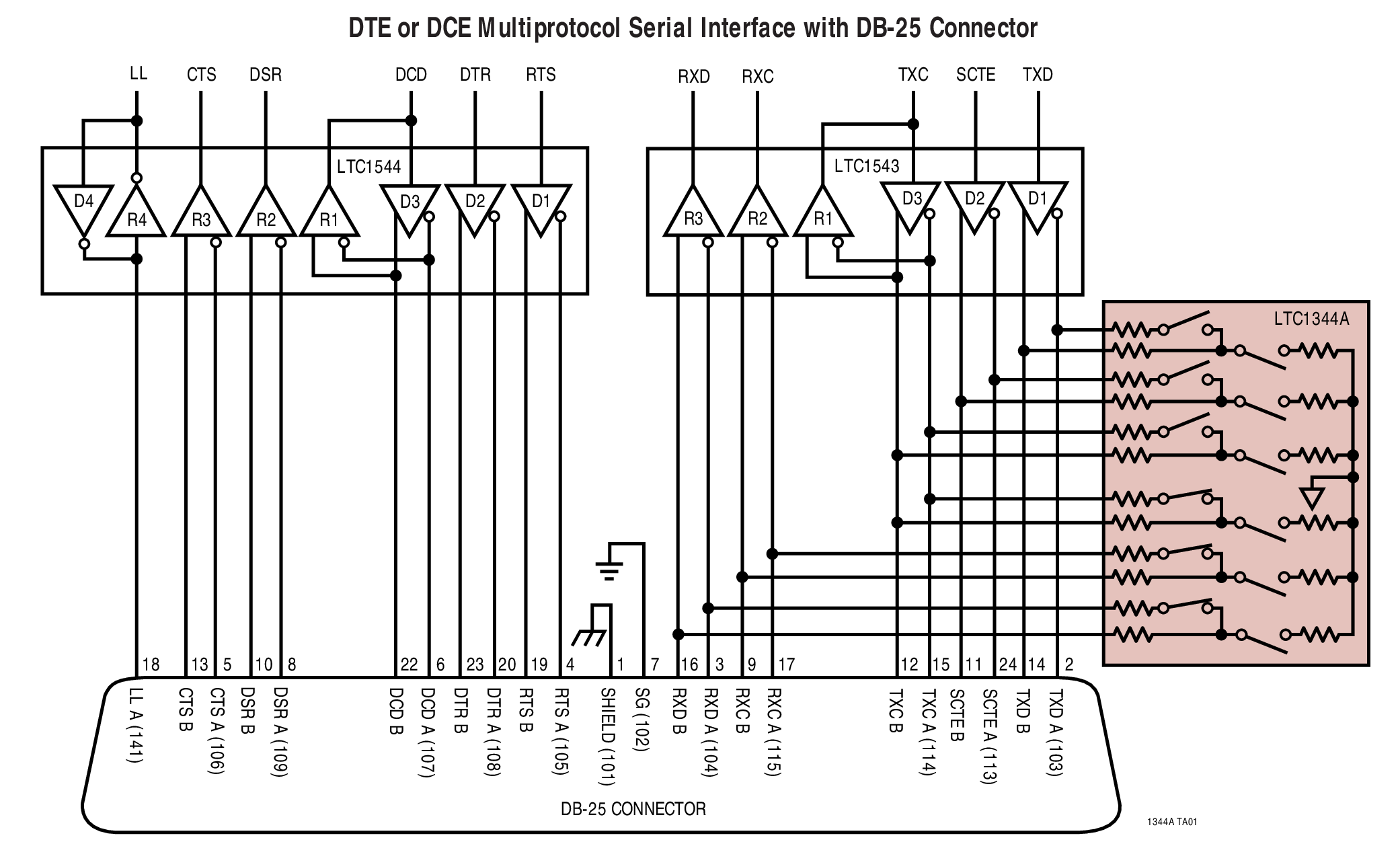

LTC1344A Typical Application
应用
  • Data Networking
  • CSU and DSU
  • Data Routers
封装信息

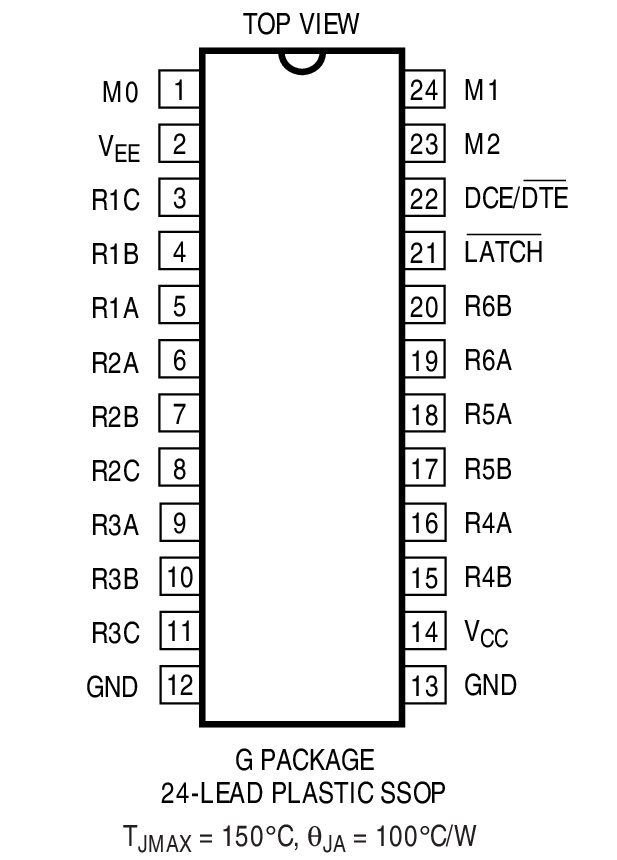

LTC1344A Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LTC1344ACG#PBFSSOP-24C$7.80$6.40
LTC1344ACG#TRPBFSSOP-24C$6.50
LTC1344AIG#PBFSSOP-24I$9.05$7.65
LTC1344AIG#TRPBFSSOP-24I$7.75
