LTC1350 - 3.3V Low Power EIA/TIA-562 3-Driver/5-Receiver Transceiver

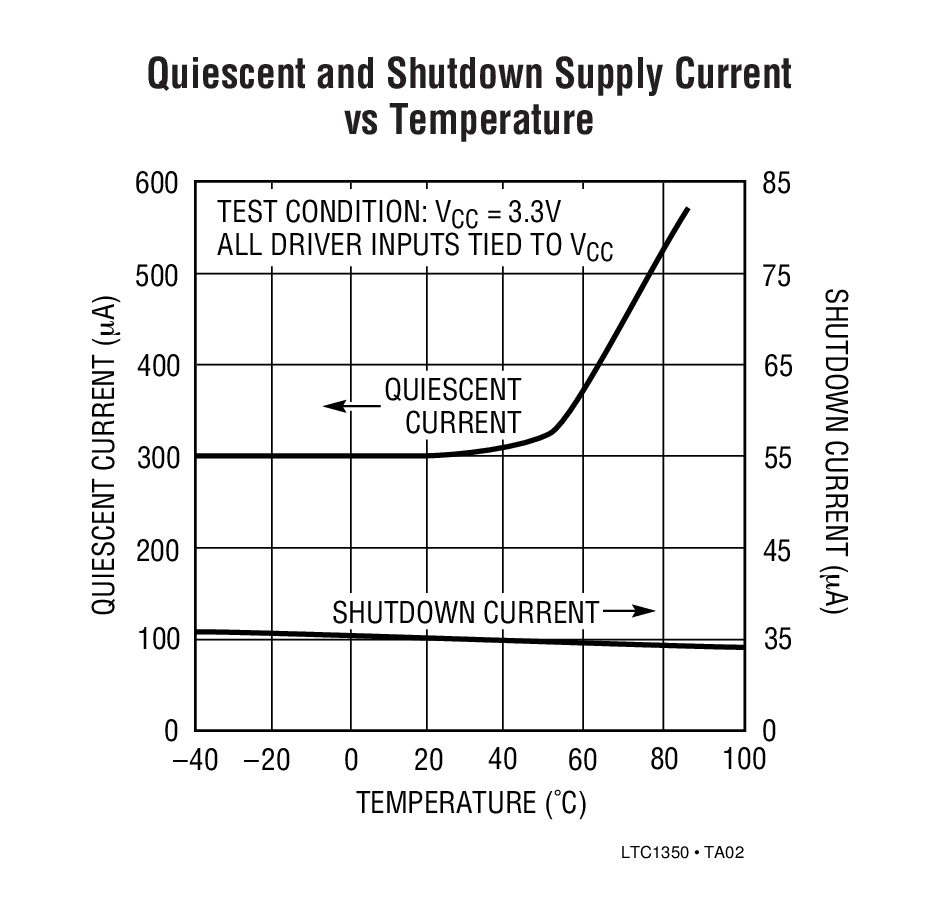

The LTC™1350 is a 3-driver/5-receiver EIA/TIA-562 transceiver with very low supply current. In the no load condition, the supply current is only 300µA. The charge pump only requires four 0.1µF capacitors.

In Shutdown mode, two receivers are kept alive and the supply current is only 35µA. All RS232 outputs assume a high impedance state in Shutdown or with the power off.

The LTC1350 is fully compliant with all data rate and overvoltage EIA/TIA-562 specifications. The transceiver can operate up to 120kbaud with a 1000pF and 3kOhm load. Both driver outputs and receiver inputs can be forced to �25V without damage and can survive multiple ±10kV ESD strikes.

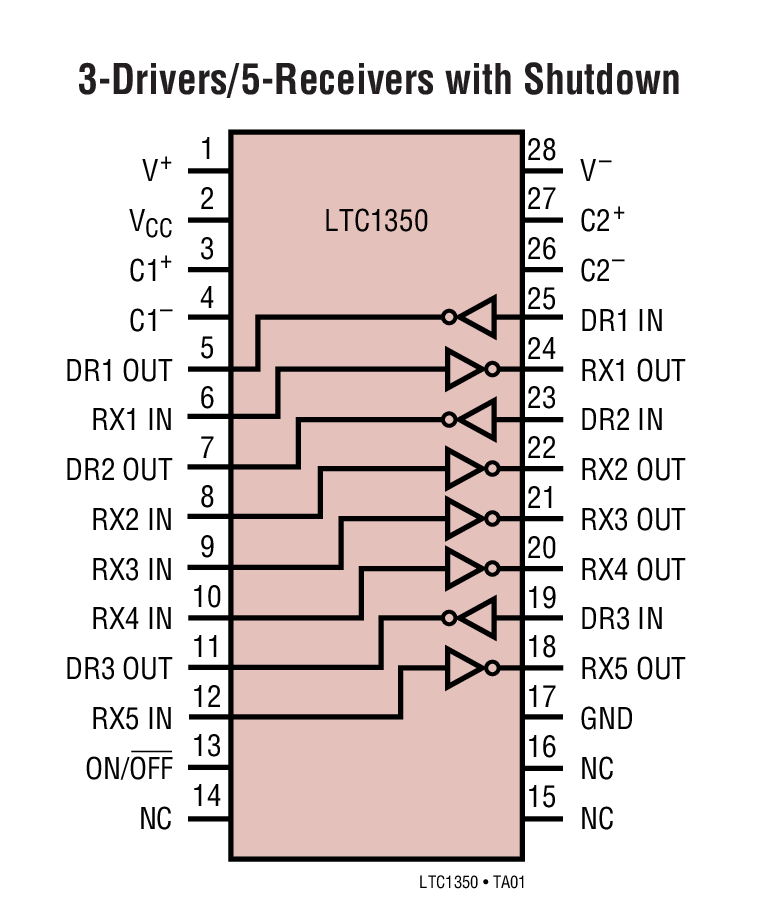

特点 Low Supply Current 300µA Receivers 4 and 5 Kept Alive in SHUTDOWN: 35µA ESD Protection ±10kV Operates from a Single 3.3V Supply Uses Small Capacitors 0.1µF Operates to 120k Baud Three-State Outputs are High Impedance When Off Output Overvoltage Does Not Force Current Back into Supplies EIA/TIA-562 I/O Lines Can Be Forced to ±25V Without Damage Flowthrough Architecture 典型应用

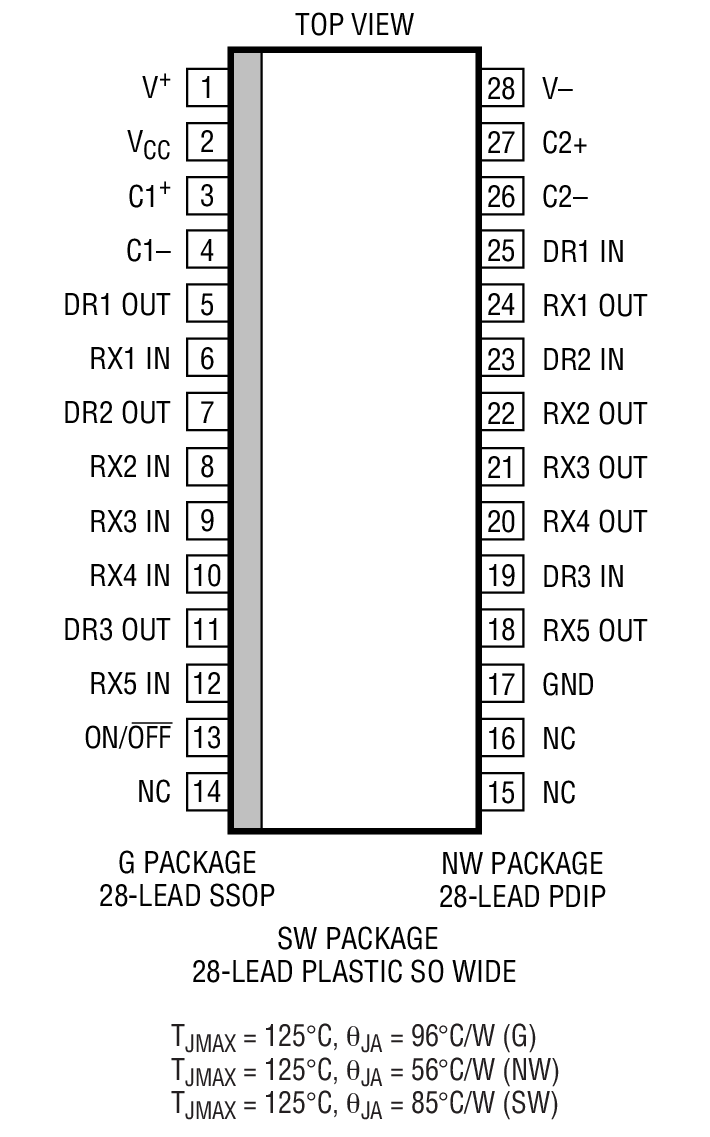

应用 Notebook Computers Palmtop Computers 封装信息
