LTC1517-5 - Micropower, Regulated 5V Charge Pump in a 5-Pin SOT-23 Package

The LTC™1517-5 is a micropower charge pump DC/DC converter that produces a regulated 5V output. The input voltage range is 2.7V to 5V. Extremely low operating current (typically 6µA with no load) and low external parts count (one 0.1µF flying capacitor and two small bypass capacitors at VIN and VOUT) make the part ideally suited for small, light load battery-powered applications. The total printed circuit board area of the application circuit shown below is only 0.045in�. The part operates as a Burst Mode’ switched-capacitor voltage doubler to produce a regulated output. The part has thermal shutdown capability and can survive a continuous short circuit from VOUT to GND. The device is available in a 5-pin SOT-23 package.

特点

Ultralow Power: ICC = 6µA Typ
Short-Circuit/Thermal Protected
5V ±4% Regulated Output
VIN Range: 2.7V to 5V
Output Current: 10mA (VIN >/= 2.7V) 20mA (VIN >/= 3V)
No Inductors
Ultrasmall Application Circuit (0.045in²)
800kHz Switching Frequency
Available in 5-Pin SOT-23

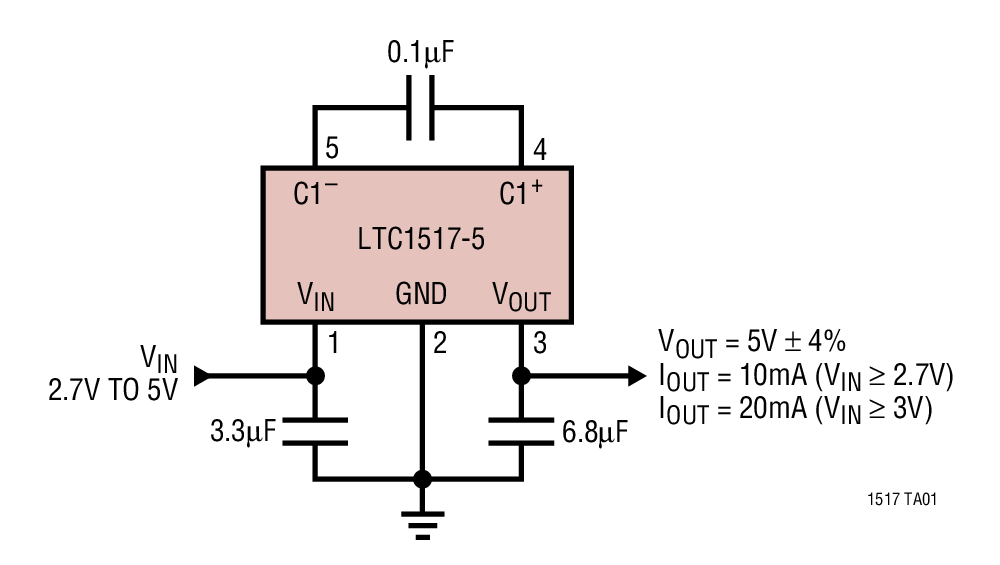

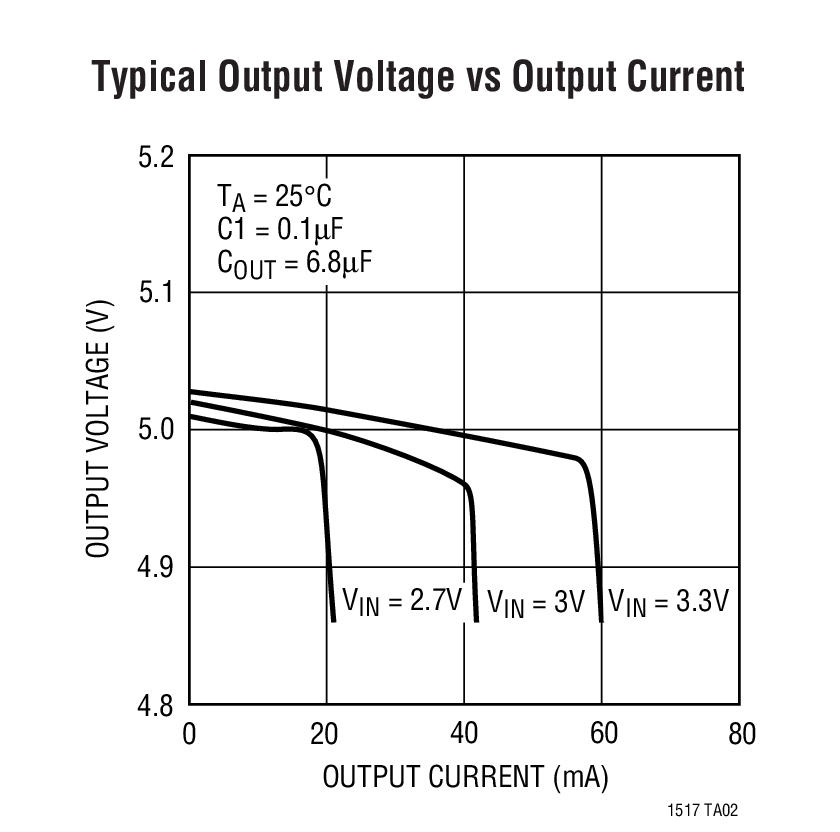

典型应用

应用

Cellular Telephones
Battery-Operated Equipment
Local Power Supplies
Handheld Instruments
PCMCIA Supplies

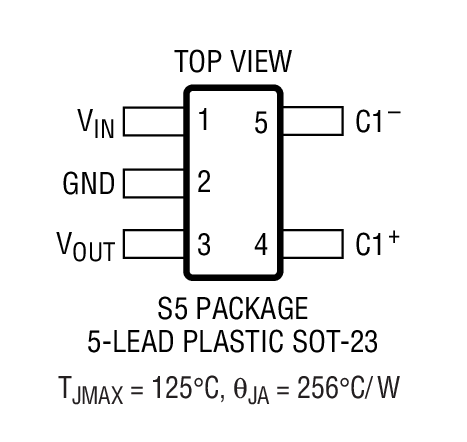

封装信息

**Order Information 订购型号**
器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量) *
LTC1517CS5-5#PBF	SOT-23	C	$2.57
LTC1517CS5-5#TRMPBF	SOT-23	C	$2.57	$2.02
LTC1517CS5-5#TRPBF	SOT-23	C	$2.57	$2.00
LTC1517ES5-5#PBF	SOT-23	E	$2.31
LTC1517ES5-5#TRMPBF	SOT-23	E	$2.31	$2.13
LTC1517ES5-5#TRPBF	SOT-23	E	$2.31	$2.11

演示电路板


器件型号	描述	价格
DC174A-A	LTC1517CS5-5 Demo Board \| MICROPOWER REGULATED 5V CHARGE PUMP DC/DC CONVERTER	联系凌力尔特
DC174A-B	LTC1517CS5-3.3 Demo Board \| MICROPOWER REGULATED 5V CHARGE PUMP DC/DC CONVERTER	$75.00
