LTC1555L-1.8 - SIM Power Supply and Level Translator

Internal level translators allow controllers operating with supplies as low as 1.425V to interface with 1.8V, 3V and 5V SIMs. A soft-start feature limits inrush current at turn-on, mitigating start-up problems that may result when the input is supplied by another low-power DC/DC converter. Battery life is maximized by 32µA operating current, and 1µA shutdown current. Board area is minimized by the miniature 16-pin narrow SSOP packages and the need for only three small external capacitors.

特点
  • Buck/Boost Charge Pump Generates 1.8V, 3V or 5V
  • Input Voltage Range: 2.6V to 6V
  • Controller VCC Range: 1.425V to 4.4V
  • >10kV ESD on All SIM Contact Pins
  • Short-Circuit and Overtemperature Protected
  • Meets all ETSI and IMT-2000 SIM Interface Requirements
  • 1.8V to 5V Signal Level Translators
  • Very Low Operating Current: 32µA
  • Very Low Shutdown Current: <1µA
  • Soft-Start Limits Inrush Current at Turn-On
  • 1MHz Switching Frequency
  • Available in 16-Pin Narrow SSOP Package
典型应用

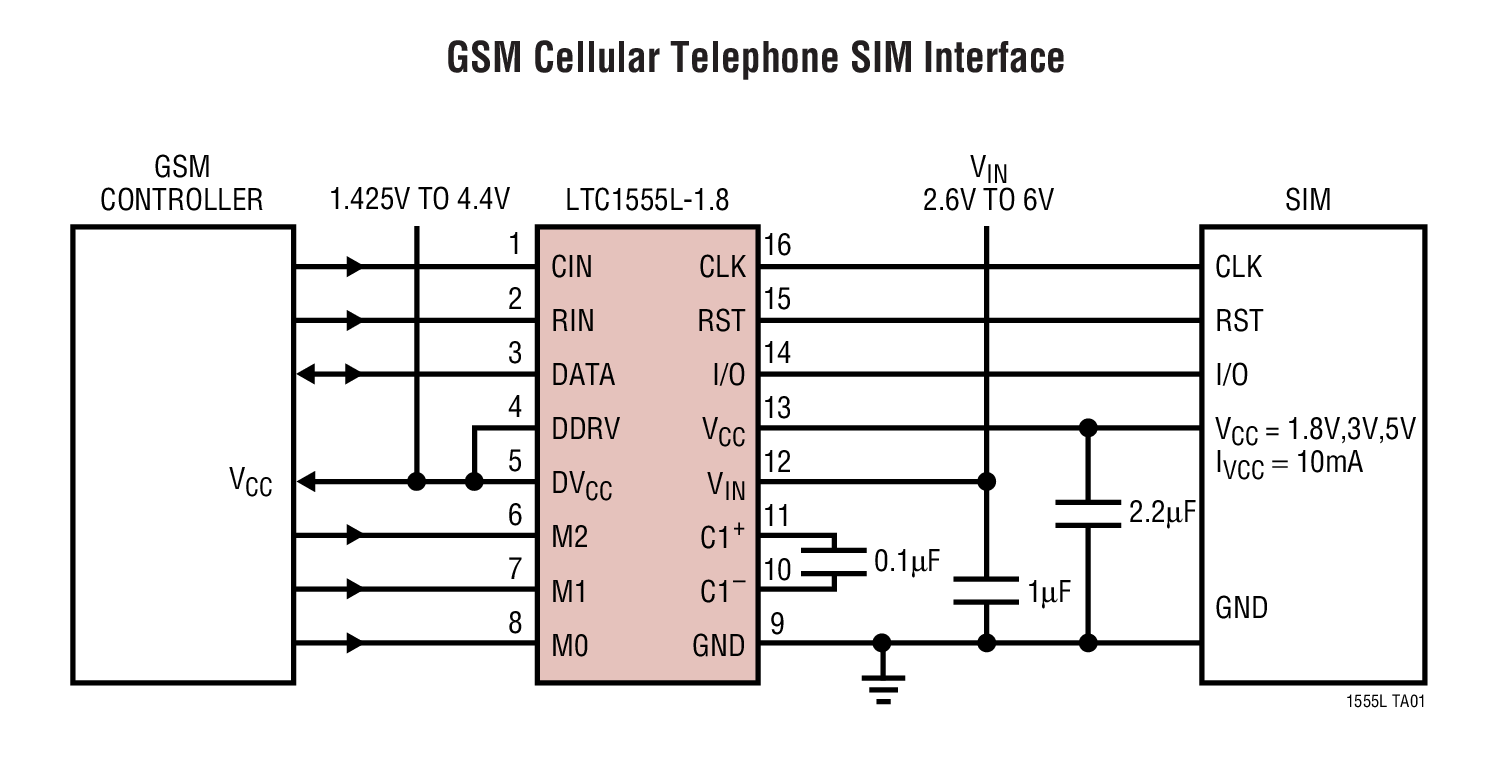

LTC1555L-1.8 Typical Application
应用
  • SIM Interface in GSM Cellular Telephones
  • WCDMA SIM Interface
  • Smart Card Readers
封装信息

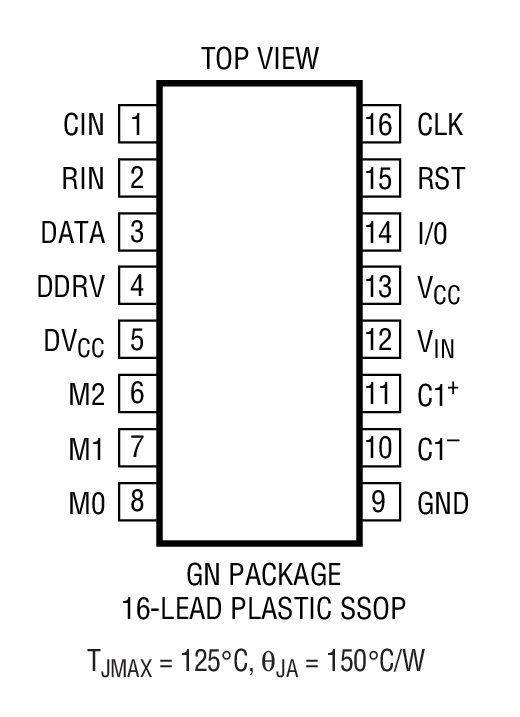

LTC1555L-1.8 Package Drawing
Order Information 订购型号
器件型号封装温度价格 (以 1 ~ 99 片为批量)价格 (以 1000 片为批量) *
LTC1555LEGN-1.8#PBFSSOP-16E$2.60$2.20
LTC1555LEGN-1.8#TRPBFSSOP-16E$2.26
