LTC3252 - Dual, Low Noise, Inductorless Step-Down DC/DC Converter

The LTC®3252 is a switched capacitor step-down DC/DC converter that produces two adjustable regulated outputs from a single 2.7V to 5.5V input. The part uses switched capacitor fractional conversion to achieve a typical efficiency increase of 50% over that of a linear regulator. No inductors are required.

A unique constant frequency, spread spectrum architecture provides a very low noise regulated output as well as low noise at the input. The part also has Burst Mode® operation to provide high efficiency at low output currents, as well as ultralow current shutdown.

Low operating currents (60µA with both outputs enabled, 35µA with one output enabled) and low external parts count make the LTC3252 ideally suited for space-constrained battery-powered applications. The part is shortcircuit and overtemperature protected and is available in a tiny 4mm x 3mm 12-pin DFN package.

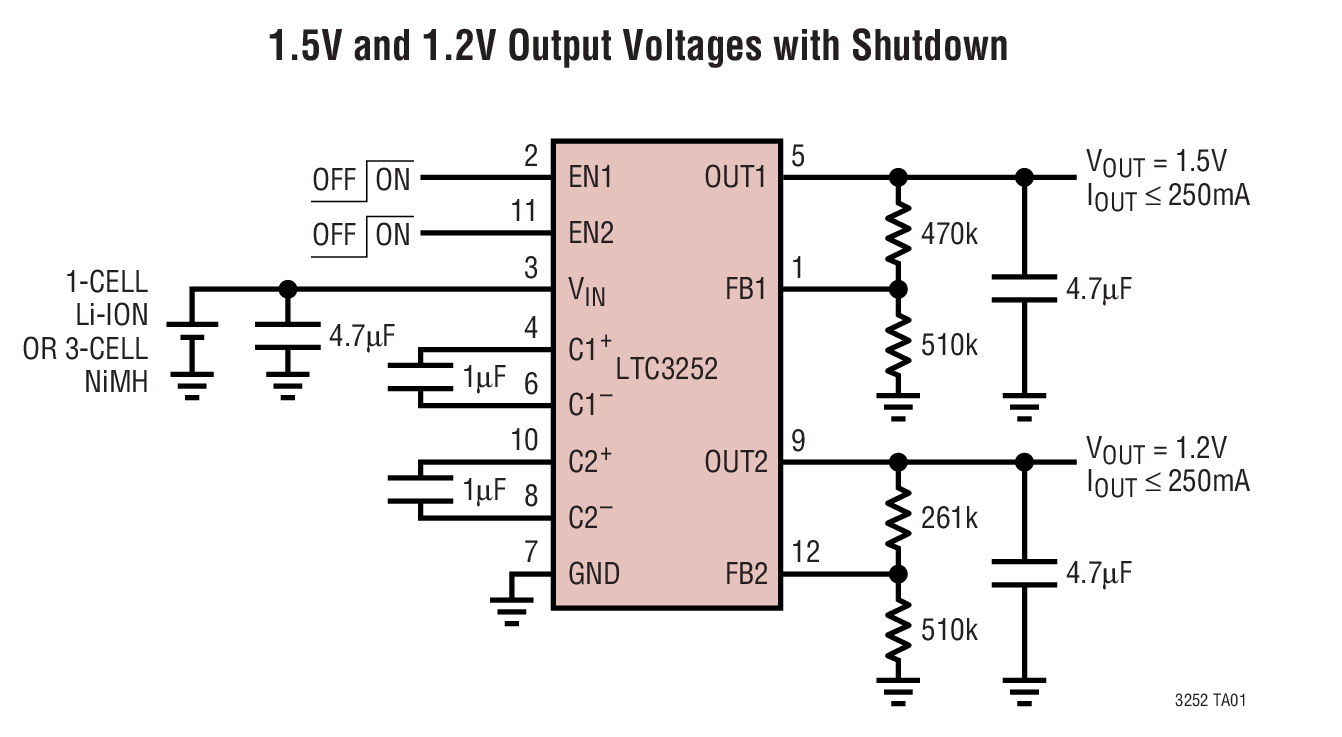

特点 2.7V to 5.5V Input Voltage Range No Inductors Typical Efficiency 50% Higher than LDOs Spread Spectrum Operation Low Input and Output Noise Shutdown Disconnects Load from VIN Dual Adjustable Independent Outputs (Range: 0.9V to 1.6V) Output Current: 250mA Each Output Low Operating Current: IIN = 60µA Typ (35µA with One Output Enabled) Low Shutdown Current: IIN = 0.01µA Typ Soft-Start Limits Inrush Current at Turn On Short Circuit and Over Temperature Protected Available in 4mm x 3mm 12-Pin DFN Package 典型应用

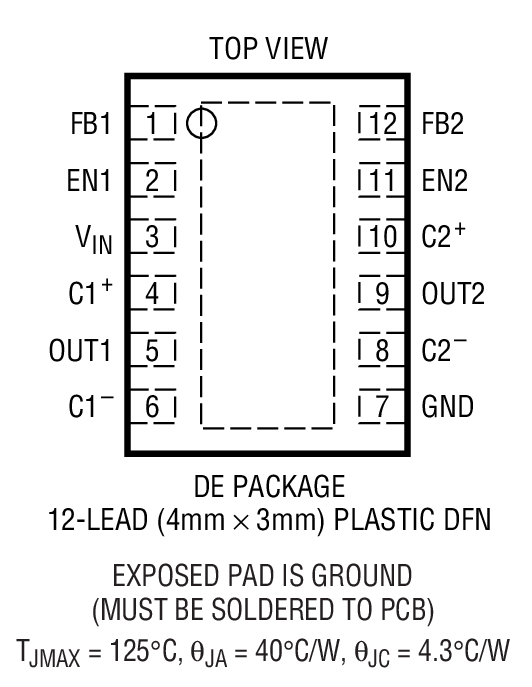

应用 Handheld Electronic Devices Cellular Phones Low Voltage Logic Supplies DSP Power Supplies 3.3V to 1.5V Conversion 封装信息

演示电路板
