光敏管 - Surface Mount Devices vishay

Part NumberProduct ImageDevice TypePackage TypePackage FormPackage Dimensions L x W x H (mm)Peak Wavelength λp (nm)Spectral Bandwidth(1) (nm)Output Current(2)Angle of Half Sensitivity φ (±deg)Photo Sensitive Area (mm2)
TEMD5510FX01Ambient Light Sensorsurface mountTop view5 x 4.24 x 1.12540430 to 6101 µA657.5
TEMD6010FX01Ambient Light Sensorsurface mount12064 x 2 x 1.05540430 to 6100.04 µA600.27
TEMD6200FX01Ambient Light Sensorsurface mount08052 x 1.25 x 0.85540430 to 6100.04 µA600.27
TEMD7000ITX01Silicon PIN Photodiodesurface mount08052 x 1.25 x 0.85900350 to 11203 µA600.23
TEMD7000X01Silicon PIN Photodiodesurface mount08052 x 1.25 x 0.85900350 to 11203 µA600.23
TEMD7100ITX01Silicon PIN Photodiodesurface mount08052 x 1.25 x 0.85950750 to 10503 µA600.23

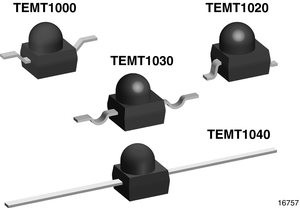

TEMT1000Silicon NPN Phototransistor, RoHS Compliantsurface mountReverse gullwing2.5 x 2 x 2.7880730 to 10007 mA15
TEMT1020Silicon NPN Phototransistor, RoHS Compliantsurface mountGullwing2.5 x 2 x 2.7880730 to 10007 mA15
TEMT1030Silicon NPN Phototransistor, RoHS Compliantsurface mountYoke2.5 x 2 x 2.7880730 to 10007 mA15
TEMT1040Silicon NPN Phototransistor, RoHS Compliantsurface mountAxial leads2.5 x 2 x 2.7880730 to 10007 mA15
TEMT6200FX01Ambient Light Sensor in 0805 Packagesurface mount08052 x 1.25 x 0.85550450 to 61023 µA60
TEMT7100ITX01Silicon Phototransistor in 0805 Packagesurface mount08052 x 1.25 x 0.85870750 to 1010225 µA to 675 µA60
VBP104FASSilicon PIN Photodiodesurface mountGullwing6.4 x 3.9 x 1.2950780 to 105035 µA654.4
VBP104FASRSilicon PIN Photodiodesurface mountReverse gullwing6.4 x 3.9 x 1.2950780 to 105035 µA654.4
VBP104SSilicon PIN Photodiodesurface mountGullwing6.4 x 3.9 x 1.2940430 to 110035 µA654.4
VBP104SRSilicon PIN Photodiodesurface mountReverse gullwing6.4 x 3.9 x 1.2940430 to 110035 µA654.4
VBPW34FASSilicon PIN Photodiodesurface mountGullwing6.4 x 3.9 x 1.2950780 to 105055 µA657.5
VBPW34FASRSilicon PIN Photodiodesurface mountReverse gullwing6.4 x 3.9 x 1.2950780 to 105055 µA657.5
VBPW34SSilicon PIN Photodiodesurface mountGullwing6.4 x 3.9 x 1.2940430 to 110055 µA657.5
VBPW34SRSilicon PIN Photodiodesurface mountReverse gullwing6.4 x 3.9 x 1.2940430 to 110055 µA657.5
VEMD1060X01Silicon PIN Photodiodesurface mount0805 top view2 x 1.25 x 0.85820350 to 10701.8 µA700.23
VEMD10940FSilicon PIN Photodiodesurface mountSide view3 x 2 x 1920780 to 10503 µA75
VEMD10940FX01Silicon PIN Photodiodesurface mountSide view3 x 2 x 1950780 to 10503 µA75
VEMD1160X01Silicon PIN Photodiodesurface mount0805 top view2 x 1.25 x 0.85840700 to 10701.8 µA700.23
VEMD11940FX01Silicon PIN Photodiodesurface mountSide view3 x 2 x 0.6950780 to 10501.13 µA75
VEMD5010X01Silicon PIN Photodiodesurface mountTop view5 x 4 x 0.9940430 to 110048 µA657.5
VEMD5060X01Silicon PIN Photodiodesurface mountTop view5 x 4 x 0.9820350 to 107026 µA657.5
VEMD5110X01Silicon PIN Photodiodesurface mountTop view5 x 4 x 0.9940790 to 105048 µA657.5
VEMD5160X01Silicon PIN Photodiodesurface mountTop view5 x 4 x 0.9840700 to 107026 µA657.5
VEMD6010X01Silicon PIN Photodiodesurface mount12064 x 2 x 1.05900430 to 11009.5 µA600.85
VEMD6060X01Silicon PIN Photodiodesurface mount12064 x 2 x 1.05820380 to 10705 µA700.85
VEMD6110X01Silicon PIN Photodiodesurface mount12064 x 2 x 1.05950750 to 10509.5 µA600.85
VEMD6160X01Silicon PIN Photodiodesurface mount12064 x 2 x 1.05840700 to 10705 µA700.85
VEMT3700FSilicon NPN Phototransistorsurface mountPLCC-23.5 x 2.8 x 1.75940870 to 10500.5 mA60
TEMT6000X01Ambient Light Sensorsurface mount12064 x 2 x 1.05570440 to 80050 µA60
TEMT7000X01Silicon Phototransistor in 0805 Packagesurface mount08052 x 1.25 x 0.85850470 to 1090225 to 675 µA60
TEMT7100X01Silicon Phototransistor in 0805 Packagesurface mount08052 x 1.25 x 0.85870750 to 1010225 to 675 µA60

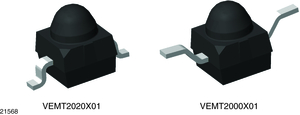

VEMT2000X01Silicon NPN Phototransistorsurface mountReverse gullwing2.3 x 2.3 x 2.8860790 to 9706 mA15

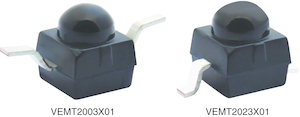

VEMT2003X01Silicon NPN Phototransistorsurface mountReverse gullwing2.3 x 2.3 x 2.55860790 to 9702.7 mA35
VEMT2020X01Silicon NPN Phototransistorsurface mountGullwing2.3 x 2.3 x 2.8860790 to 9706 mA15
VEMT2023SLX01Silicon NPN Phototransistorsurface mountSide view2.3 x 2.55 x 2.3860790 to 9702.7 mA35
VEMT2023X01Silicon NPN Phototransistorsurface mountGullwing2.3 x 2.3 x 2.55860790 to 9702.7 mA35

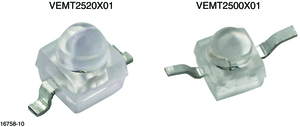

VEMT2500X01Silicon NPN Phototransistorsurface mountReverse gullwing2.3 x 2.3 x 2.8850470 to 10906 mA15

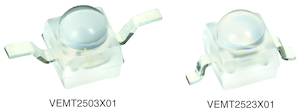

VEMT2503X01Silicon NPN Phototransistorsurface mountReverse gullwing2.3 x 2.3 x 2.55850470 to 10902.7 mA35
VEMT2520X01Silicon NPN Phototransistorsurface mountGullwing2.3 x 2.3 x 2.8850470 to 10906 mA15
VEMT2523SLX01Silicon NPN Phototransistorsurface mountSide view2.3 x 2.55 x 2.3850470 to 10902.7 mA35
VEMT2523X01Silicon NPN Phototransistorsurface mountGullwing2.3 x 2.3 x 2.55850470 to 10902.7 mA35
VEMT3700Silicon NPN Phototransistorsurface mountPLCC-23.5 x 2.8 x 1.75850450 to 10800.5 mA60
VEMT4700Silicon NPN Phototransistorsurface mountPLCC-33.5 x 2.8 x 1.75850450 to 10800.5 mA60
VEMT4700FSilicon NPN Phototransistorsurface mountPLCC-33.5 x 2.8 x 1.75940870 to 10500.5 mA60
TEMD1000Silicon PIN Photodiode, RoHS Compliantsurface mountReverse gullwing2.5 x 2 x 2.7940790 to 10506.0 to 13.0 µA150.23
TEMD1020Silicon PIN Photodiode, RoHS Compliantsurface mountGullwing2.5 x 2 x 2.7940790 to 10506.0 to 13.0 µA150.23
TEMD1030Silicon PIN Photodiode, RoHS Compliantsurface mountYoke2.5 x 2 x 2.7940790 to 10506.0 to 13.0 µA150.23
TEMD1040Silicon PIN Photodiode, RoHS Compliantsurface mountAxial leads2.5 x 2 x 2.7940790 to 10506.0 to 13.0 µA150.23
TEMD5010X01Silicon PIN Photodiodesurface mountTop view5 x 4.24 x 1.12940430 to 110055 µA657.5
TEMD5020X01Silicon PIN Photodiode, RoHS Compliant, Released for Lead (Pb)-free Reflow Soldering, AEC-Q101 Releasedsurface mountTop view5 x 4.24 x 1.12900430 to 110035 µA654.4
TEMD5080X01Silicon PIN Photodiodesurface mountTop view5 x 4.24 x 1.12940350 to 110060 µA657.7
TEMD5110X01Silicon PIN Photodiodesurface mountTop view5 x 4.24 x 1.12940790 to 105055 µA657.5
TEMD5120X01Silicon PIN Photodiode, RoHS Compliant, Released for Lead (Pb)-free Reflow Soldering, AEC-Q101 Releasedsurface mountTop view5 x 4.24 x 1.12940790 to 105035 µA654.4
TEMD7100X01Silicon PIN Photodiodesurface mount08052 x 1.25 x 0.85950750 to 10503 µA600.23
VEMD2000X01Silicon PIN Photodiodesurface mountReverse gullwing2.3 x 2.3 x 2.8940750 to 105012 µA15
VEMD2003X01Silicon PIN Photodiodesurface mountReverse gullwing2.3 x 2.3 x 2.55940750 to 105010 µA35
VEMD2020X01Silicon PIN Photodiodesurface mountGullwing2.3 x 2.3 x 2.8940750 to 105012 µA15
VEMD2023SLX01Silicon PIN Photodiodesurface mountSide view2.3 x 2.55 x 2.3940750 to 105010 µA35
VEMD2023X01Silicon PIN Photodiodesurface mountGullwing2.3 x 2.3 x 2.55940750 to 105010 µA35
VEMD2500X01Silicon PIN Photodiodesurface mountReverse gullwing2.3 x 2.3 x 2.8900350 to 112012 µA15
VEMD2503X01Silicon PIN Photodiodesurface mountReverse gullwing2.3 x 2.3 x 2.55900350 to 112010 µA35
VEMD2520X01Silicon PIN Photodiodesurface mountGullwing2.3 x 2.3 x 2.8900350 to 112012 µA15
VEMD2523SLX01Silicon PIN Photodiodesurface mountSide view2.3 x 2.55 x 2.3900350 to 112010 µA35
VEMD2523X01Silicon PIN Photodiodesurface mountGullwing2.3 x 2.3 x 2.55900350 to 112010 µA35
