Sensors - Position: Angular and Linear vishay

SeriesProduct ImageSensor TypeDescriptionOutput TypeMarket ApplianceDimensions

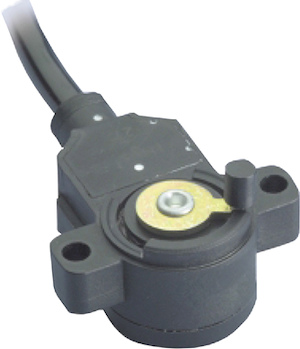

Cable Output PMRROTATIONAL, conductive plasticAnalog Displacement Sensors for Transportation ApplicationsOutput by cableTransportation41 mm x 34 mm x 23.37 mm
Hollow Shaft PMRROTATIONAL, conductive plasticAnalog Displacement Sensors for Transportation ApplicationsOutput by wiresTransportation42 mm x 31.5 mm x 23.37 mm

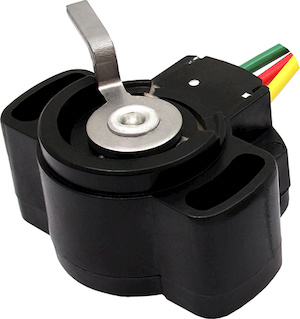

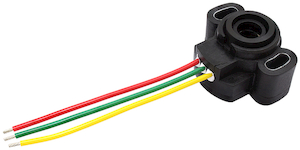

Lever PMRROTATIONAL, conductive plasticAnalog Displacement Sensors for Transportation ApplicationsOutput by wiresTransportation39.2 mm (or 42 mm, or 47 mm) x 31.5 mm (or 34.2 mm) x 23.37 mm
Model 100ROTATIONAL, single turn wirewound1 5/16" (33.3 mm) Single Turn Wirewound Precision PotentiometerOutput by turretsIndustrial1 5/16" (33.3 mm)

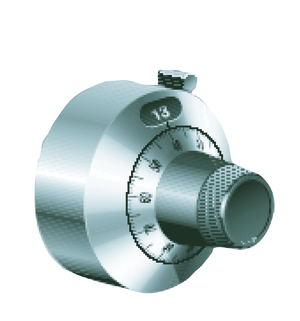

Model 11DIALS25.4 mm Diameter Eleven Turn Dialn/aIndustrial25.4 mm diamenter
Model 122ROTATIONAL, single turn wirewound1 1/16" (27 mm) Single Turn Wirewound Precision PotentiometerOutput by turretsProfessional1 1/16" (27 mm)
Model 128ROTATIONAL, conductive plastic1 1/16" (27 mm) Single Turn Conductive Plastic Precision PotentiometerOutput by turretsProfessional1 1/16" (27 mm)
Model 132ROTATIONAL, single turn wirewound1 5/16" (33.3 mm) Low Cost Industrial Single Turn Wirewound, Bushing Mount Type PotentiometerOutput by turretsIndustrial1 5/16" (33.3 mm)
Model 138ROTATIONAL, conductive plastic1 5/16" (33.3 mm) Industrial Single Turn, Bushing Mount, Conductive Plastic PotentiometerOutput by turretsIndustrial1 5/16" (33.3 mm)
Model 140ROTATIONAL, single turn wirewound1/2" (12.7 mm) Single - Turn Wirewound Bushing Mount Type Precision PotentiometerOutput by turretsProfessional1/2" (12.7 mm)
Model 142ROTATIONAL, single turn wirewound1/2" (12.7 mm) Single - Turn Wirewound Servo Mount Type Precision PotentiometerOutput by turretsProfessional1/2" (12.7 mm)

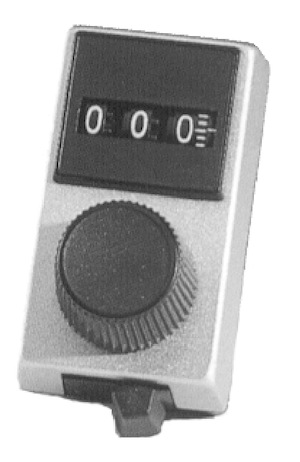

Model 15DIALSRectangular 10 Turn Dial (3 Digit), (4 Digit) 100 Turnn/aIndustrial25.4 mm x 49.5 mm
Model 152ROTATIONAL, single turn wirewound7/8" (22.2 mm) Single Turn Wirewound, Precision PotentiometerOutput by turretsIndustrial7/8" (22.2 mm)
Model 157ROTATIONAL, conductive plastic7/8" (22.2 mm) Precision Industrial Potentiometer, Bushing And Servo Mount Versions, Conductive PlasticOutput by turretsIndustrial7/8" (22.2 mm)

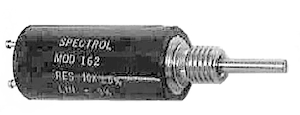

Model 162ROTATIONAL, multi turn wirewound1/2" (12.7 mm) Ten Turn Wirewound Bushing Mount Precision PotentiometerOutput by turretsProfessional1/2" (12.7 mm)

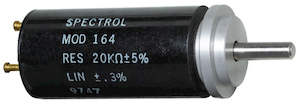

Model 164ROTATIONAL, multi turn wirewound1/2" (12.7 mm) Ten Turn Wirewound Servo Mount Precision PotentiometerOutput by turretsProfessional½" (2.7 mm)
Model 18DIALSModel 18 (PR2) 22.2 mm Diameter, 15 Turn Dialn/aIndustrial22.2 mm diameter
Model 202ROTATIONAL, single turn wirewound1 3/4" (44.5 mm) Single Turn Wirewound Precision PotentiometerOutput by turretsProfessional1 ¾" (44.5 mm)
Model 208ROTATIONAL, conductive plastic1 3/4" (44.5 mm) Single Turn Conductive Plastic Precision PotentiometerOutput by turretsProfessional1 ¾" (44.5 mm)
Model 21DIALS46.02 mm Diameter 15 Turn Dialn/aIndustrial46 mm dia.
MODEL 21PDIALS46.0 mm Diameter Eleven Turn Dialn/aIndustrial46 mm dia.

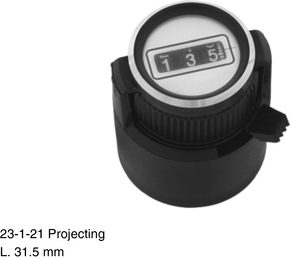

Model 23DIALSMultidial 10 Turns 30.6 mm Diameter Projecting Designn/aProfessional30.6 mm diameter
Model 25DIALSModel 25 (PR1) 46 mm Diameter, 20 Turn Dialn/aIndustrial46 mm diameter

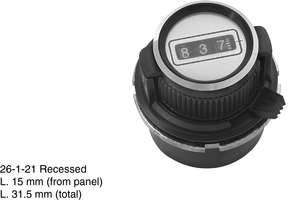

Model 26DIALSMultidial 10 Turns 30.6 mm Diameter Recessed Designn/aProfessional30.6 mm diameter
Model 28DIALS28 mm Dia Twenty-One Turn Dialn/aIndustrial28 mm diameter
Model 302ROTATIONAL, single turn wirewound2" (50.8 mm) Single Turn Wirewound Precision PotentiometerOutput by turretsProfessional2" (50.8 mm)
Model 308ROTATIONAL, conductive plastic2" (50.8 mm) Single Turn Conductive Plastic Precision PotentiometerOutput by turretsProfessional2" (50.8 mm)

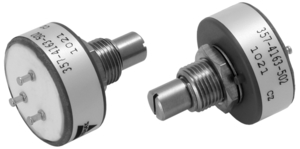

Model 357ROTATIONAL, conductive plastic7/8" (22.2 mm) Conductive Plastic Potentiometer, Bushing Mount TypeOutput by turretsIndustrial7/8" (22.2 mm)
Model 502ROTATIONAL, multi turn wirewound7/8" (22.2 mm) Ten Turn Wirewound Upper Grade Precision PotentiometerOutput by turretsProfessional7/8" (22.2 mm)

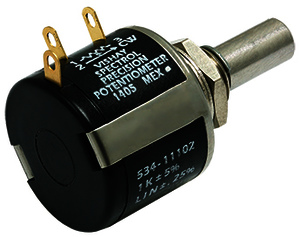

Model 533, 534, 535ROTATIONAL, multi turn wirewound7/8" (22.2 mm) Multi Turn Wirewound Potentiometer - 533: 3 Turns / 534: 10 Turns / 535: 5 TurnsOutput by turretsIndustrial7/8" (22.2 mm)

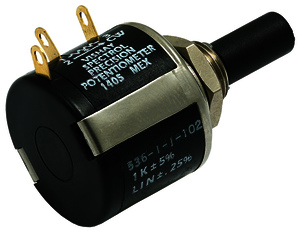

Model 536ROTATIONAL, multi turn wirewound7/8" (22.2 mm) Ten Turn Wirewound Precision Potentiometer with a Plastic ShaftOutput by turretsIndustrial7/8" (22.2 mm)

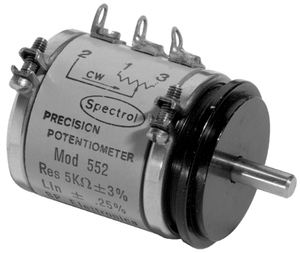

Model 552ROTATIONAL, multi turn wirewound7/8" (22.2 mm) Three Turn Wirewound Upper Grade Precision PotentiometerOutput by turretsProfessional7/8" (22.2 mm)
Model 657ROTATIONAL, conductive plasticIndustrial Rotary Position Sensor, Bushing Mount Type, Conductive PlasticOutput by turretsIndustrial15.81 mm x 17.46 mm
Model 702ROTATIONAL, single turn wirewound7/8" (22.2 mm) Single Turn Wirewound (Precision Potentiometer)Output by turretsProfessional7/8" (22.2 mm)
Model 708ROTATIONAL, conductive plastic7/8" (22.2 mm) Single Turn Conductive Plastic Precision PotentiometerOutput by turretsProfessional7/8" (22.2 mm)

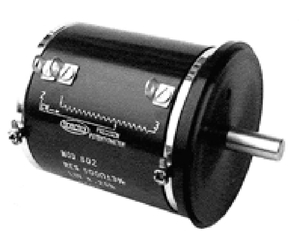

Model 802ROTATIONAL, multi turn wirewound1 13/16" (46 mm) Ten Turn Wirewound Upper Grade Precision PotentiometerOutput by turretsProfessional1 13/16" (46 mm)

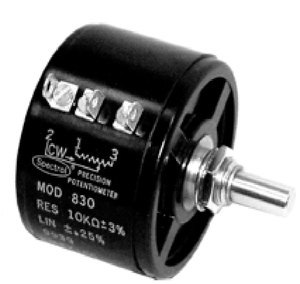

Model 830ROTATIONAL, multi turn wirewound1 13/16" (46 mm) Three Turn Wirewound Potentiometer Bushing MountOutput by turretsIndustrial1 13/16" (46 mm)
Model 852ROTATIONAL, multi turn wirewound1 13/16" (46 mm) Three Turn Wirewound Upper Grade Precision PotentiometerOutput by turretsProfessional1 13/16" (46 mm)

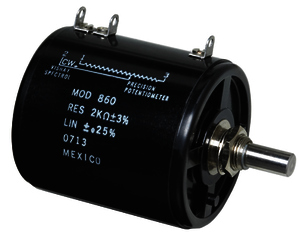

Model 860ROTATIONAL, multi turn wirewound1 13/16" (46 mm) Ten Turn Wirewound Potentiometer, Bushing MountOutput by turretsIndustrial1 13/16" (46 mm)

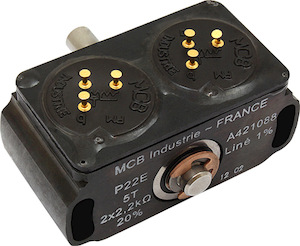

Multi-Track P22RROTATIONAL, multi turns conductive plastic5-Turn Analog Displacement Sensor P22 RedundantOutput by turrets, wires, or connectorTransportation51.1 mm x 30 mm
Multi-Track PMRROTATIONAL, conductive plasticAnalog Displacement Sensors for Off-Road ApplicationsOutput by integrated connector or wiresTransportation39.5 mm x 31.5 mm x 23.37 mm
P22SROTATIONAL, conductive plasticSingle-Turn Continuous Rotation Analog Displacement SensorsOutput by turretsIndustrial7/8" (22.2 mm)
POHR36, POHR44, POTH44, POTH50, POTH76ROTATIONAL, conductive plasticSingle-Turn Continuous Rotation Analog Displacement SensorsOutput by turretsAvionics, militaryØ 36, Ø 44, Ø 50, Ø 76
POPR27ROTATIONAL, conductive plasticSingle-Turn Continuous Rotation Analog Displacement SensorOutput by turretsAvionics, military1 1/16" (27 mm)
PORH12, PORH9.5, PORR12LINEAR, conductive plasticAnalog Rectilinear Displacement SensorOutput by wiresAvionics, military, industrialDiameter 1/2" (12.7 mm)
POTH12, POTH19, POTH22, POTH27, POHR27ROTATIONAL, conductive plasticSingle-Turn Continuous Rotation Analog Displacement SensorsOutput by turretsAvionics, military1/2" (12.7 mm) to 1 1/16" (27 mm)
PP12SRROTATIONAL, conductive plasticSingle-Turn Continuous Rotation Analog Displacement SensorOutput by turretsMilitary1/2" (12.7 mm)

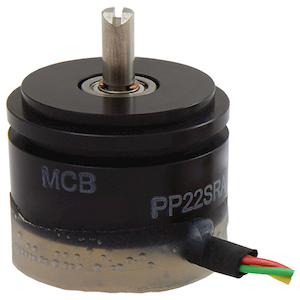

PP22 SAROTATIONAL, conductive plasticHigh Reliable Sensor Dedicated to Aeronautic ApplicationsOutput by wiresAvionics22.1 mm

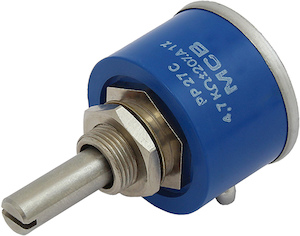

PP27 BSROTATIONAL, conductive plasticSingle Turn Continuous Rotation Potentiometer or with Stop-Ends Conductive Plastic TrackOutput by turretsIndustrial27 mm
PP27 EAROTATIONAL, conductive plasticRedundant Sensor Dedicated to Aeronautic ApplicationsOutput by wiresAvionics1 1/16" (27 mm)

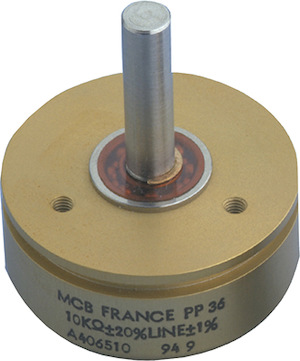

PP36ROTATIONAL, conductive plasticSingle-Turn Continuous Rotation Analog Displacement SensorOutput by turretsIndustrial36.5 mm

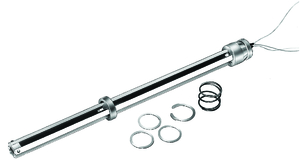

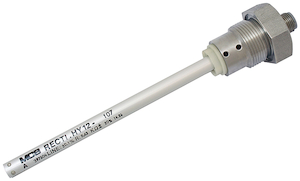

PRHY12LINEAR, conductive plasticAnalog Displacement Sensor for Mounting in Hydraulic CylinderWires and connectorIndustrialDiameter 12 mm
RH28LINEAR, conductive plasticAnalog Linear Displacement SensorOutput by cableIndustrial35 mm

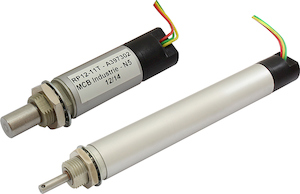

RP12LINEAR, conductive plasticAnalog Linear Displacement SensorOutput by wiresIndustrialDiameter 1/2" (12.7 mm)
RP12 Multi-TurnROTATIONAL - multi-turnsMulti-Turn Potentiometer from 5 Turns to 200 Turns (More on Request)Output by wiresAvionics, industrialDiameter 1/2" (12.7 mm)
Series 116 BFZ-SFZROTATIONAL, conductive plasticPrecision Rotative Transducers 360° Special Laws: Sine/CosineOutput by turretsProfessional1 1/16" (27 mm)
Series ECOROTATIONAL, conductive plasticPrecision Rotative Transducers, Conductive Plastic, Economic Series (ECO)Output by turretsIndustrialVarious sizes
Series ECSROTATIONAL, conductive plasticPrecision Rotative Transducers, Conductive Plastic, Economic Series (ECS)Output by turretsIndustrial22.2 mm (7/8 ") dia.

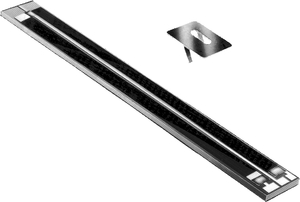

Series KIT LMFLINEAR, conductive plasticConductive Plastic Motion Transducer Elements (KIT), up to 1000 mmSolder padsIndustrialL x 15 mm x 1.6 mm (with L = TET + 18 mm)

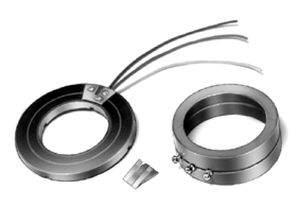

Series KIT RMFROTATIONAL, conductive plasticConductive Plastic Rotative Transducer Elements (KIT)VariousIndustrialVarious sizes
Series REC 10 LALINEAR, conductive plasticPrecision Linear Transducers, Designed for Mounting in Hydraulic or Pneumatic Cylinder, Conductive Plastic (Sealed Series/Ø 10 mm)WiresIndustrial10 mm dia.
Series REC 10 LHLINEAR, conductive plasticPrecision Linear Transducers, Designed for Mounting in Hydraulic or Pneumatic Cylinder, Conductive Plastic Element (Unsealed Series/Ø 10 mm)WiresIndustrial10 mm dia.
Series REC 110 LLINEAR, conductive plasticPrecision Linear Transducers, Conductive Plastic, up to 450 mmConnectorIndustrialL x 18 mm x 41 mm (with L = TET + 47 mm)
Series REC 115 LLINEAR, conductive plasticPrecision Linear Transducers, Conductive Plastic, up to 1000 mmConnectorIndustrialL x 31.7 mm x 34.8 mm (with L = TET + 75 mm)
Series REC 139 LLINEAR, conductive plasticPrecision Linear Transducers, Conductive Plastic, up to 3000 mmConnectorIndustrialL x 36 mm x 61 mm (with L = TET + 169 mm max.)
Series REC 16 LALINEAR, conductive plasticPrecision Linear Transducers, Designed for Mounting in Hydraulic or Pneumatic Cylinder, Conductive Plastic Element (Sealed Series/Ø 16 mm)WiresIndustrialL x 16 mm dia. (with L = TET + 77 mm)
Series REC 16 LHLINEAR, conductive plasticPrecision Linear Transducers, Designed for Mounting in Hydraulic or Pneumatic Cylinder, Conductive Plastic (Unsealed Series/Ø 16 mm)WiresIndustrialL x 16 mm dia. (with L = TET + 70 mm)
Series REC 34 LLINEAR, conductive plasticPrecision Linear Transducers, Conductive Plastic, up to 450 mmWiresProfessionalL x 19 mm dia. (with L = TET + 63 mm)
Series REC 38 LLINEAR, conductive plasticPrecision Linear Transducers, Conductive Plastic, up to 150 mmWiresProfessional9.52 mm dia.
Series REC 50 LLINEAR, conductive plasticPrecision Linear Transducers, Conductive Plastic, up to 300 mmWiresProfessionalL x 12.7 mm dia. (with L = TET + 41 mm)
Series ROT/BFROTATIONAL, conductive plasticPrecision Rotative Transducers, Conductive Plastic, Bushing MountingOutput by turretsProfessionalVarious sizes
Series ROT/SFROTATIONAL, conductive plasticPrecision Rotative Transducers, Conductive Plastic, Servo MountingOutput by turretsProfessionalVarious sizes

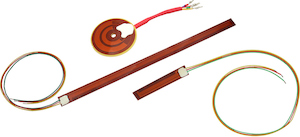

UFPMA, UFPMCLINEAR or ROTATIONAL, conductive plasticDisplacement Sensor, Ultra FlatOutput by wires or connectorAvionics4 mm (thickness max.)
