The EL7154 three-state pin driver is particularly well suited for ATE and level shifting applications. The 4A peak drive capability, makes the EL7154 an excellent choice when driving high speed capacitive lines.

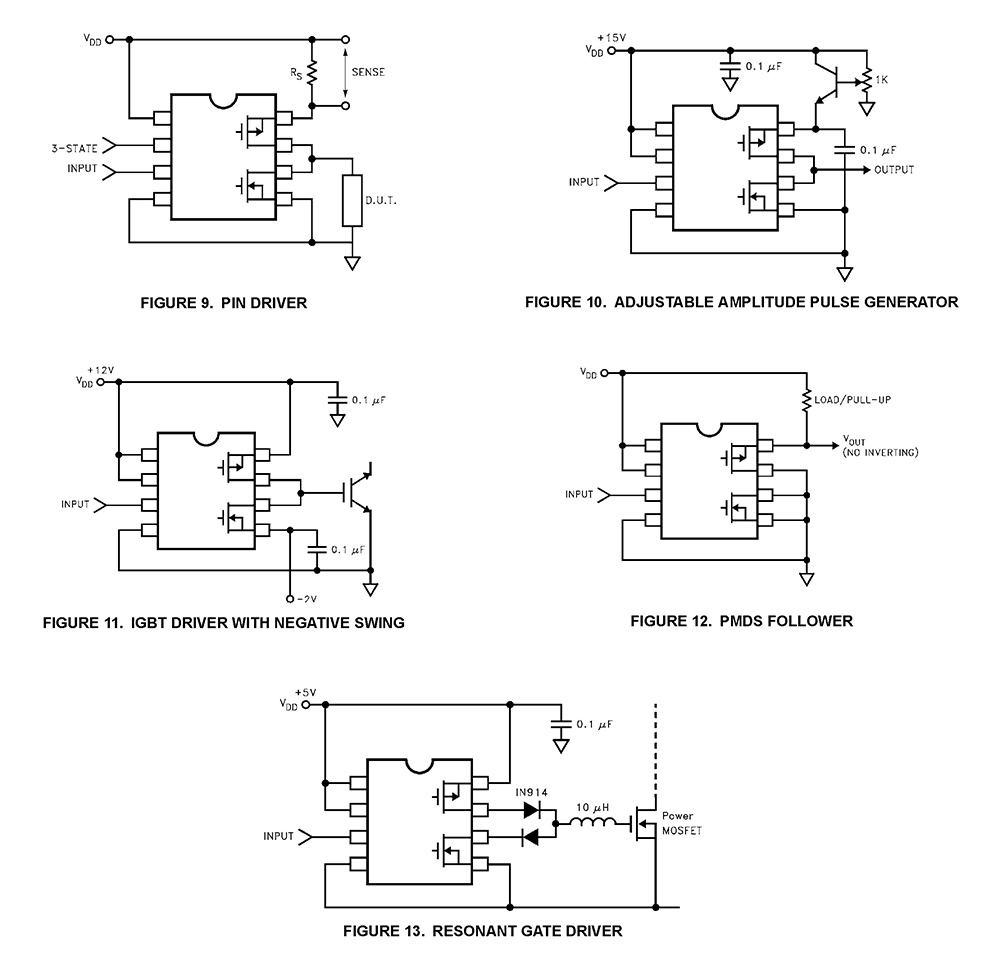

The P-Channel MOSFET is completely isolated from the power supply, providing a high degree of flexibility. Pin (7) can be grounded, and the output can be taken from pin (8) when a "source follower" output is desired. The N-Channel MOSFET has an isolated drain, but shares a common bus with pre-drivers and level shifter circuits. This is necessary to ensure that the N-Channel device can turn off effectively when VL goes below GND. In some power-FET and IGBT applications, negative drive is desirable to insure effective turn-off. The EL7154 can be used in these applications by returning VL to a moderate negative potential.
Key Features
- Comparatively low cost
- Three-State output
- 3V and 5V Input compatible
- Clocking speeds up to 10MHz
- 20ns Switching/delay time
- 4A Peak drive
- Isolated drains
- Low output impedance: 2.5Ω
- Low quiescent current: 5mA
- Wide operating voltage: 4.5V to16V
- Isolated P-Channel device
- Separate ground and VL pins
- Pb-free available (RoHS compliant)
Applications
- Loaded circuit board testers
- Digital testers
- Level shifting below GND
- IGBT drivers
- CCD drivers
Datasheets| Title | Type | Updated | Size | Other Languages |
|---|
| EL7154 Datasheet | PDF | 23 Nov 2015 | 270 KB | |
Order Information| Part Number | Package Type | Weight(g) | Pins | MSL Rating | Peak Temp (°C) | RoHS Status |
|---|
|
| EL7154CN | 8 Ld PDIP | 0.54 | 8 | N/A | NA | |
|
|
| EL7154CNZ | 8 Ld PDIP | 0.54 | 8 | N/A | NA | RoHS |
|
|
| EL7154CS | 8 Ld SOIC | 0.072 | 8 | 1 | 240 | |
|
|
| EL7154CS-T13 | 8 Ld SOIC T+R | 0.072 | 8 | 1 | 240 | |
|
|
| EL7154CS-T7 | 8 Ld SOIC T+R | 0.072 | 8 | 1 | 240 | |
|
|
| EL7154CSZ | 8 Ld SOIC | 0.072 | 8 | 3 | 260 | RoHS |
|
|
| EL7154CSZ-T13 | 8 Ld SOIC T+R | 0.072 | 8 | 3 | 260 | RoHS |
|
|
| EL7154CSZ-T7 | 8 Ld SOIC T+R | 0.072 | 8 | 3 | 260 | RoHS |
|
|
|
|
| EL7154CS-EVAL | | | | N/A | | |
|
|
