EL7156: High Performance Pin Driver

The EL7156 high performance pin driver with three-state is suited to many ATE and level-shifting applications. The 3.5A peak drive capability makes this part an excellent choice when driving high capacitance loads.

The output pin OUT is connected to input pins VH or VL respectively, depending on the status of the IN pin. When the OE pin is active low, the output is placed in the three-state mode. The isolation of the output FETs from the power supplies enables VH and VL to be set independently, enabling level-shifting to be implemented. Related to the EL7155, the EL7156 adds a lower supply pin VS- and makes VL an isolated and independent input. This feature adds applications flexibility and improves switching response due to the increased enhancement of the output FETs.

This pin driver has improved performance over existing pin drivers. It is specifically designed to operate at voltages down to 0V across the switch elements while maintaining good speed and ON-resistance characteristics.

Available in the 8 Ld SOIC and 8 Ld PDIP packages, the EL7156 is specified for operation over the full -40°C to +85°C temperature range.

Key Features
  • Clocking speeds up to 40MHz
  • 15ns tR/tFat 2000pF CLOAD
  • 0.5ns rise and fall times mismatch
  • 0.5ns tON-tOFF prop delay mismatch
  • 3.5pF typical input capacitance
  • 3.5A peak drive
  • Low ON-resistance of 3.5Ω
  • High capacitive drive capability
  • Operates from 4.5V to 16.5V
  • Pb-free plus anneal available (RoHS compliant)
Applications
  • ATE/burn-in testers
  • Level shifting
  • IGBT drivers
  • CCD drivers

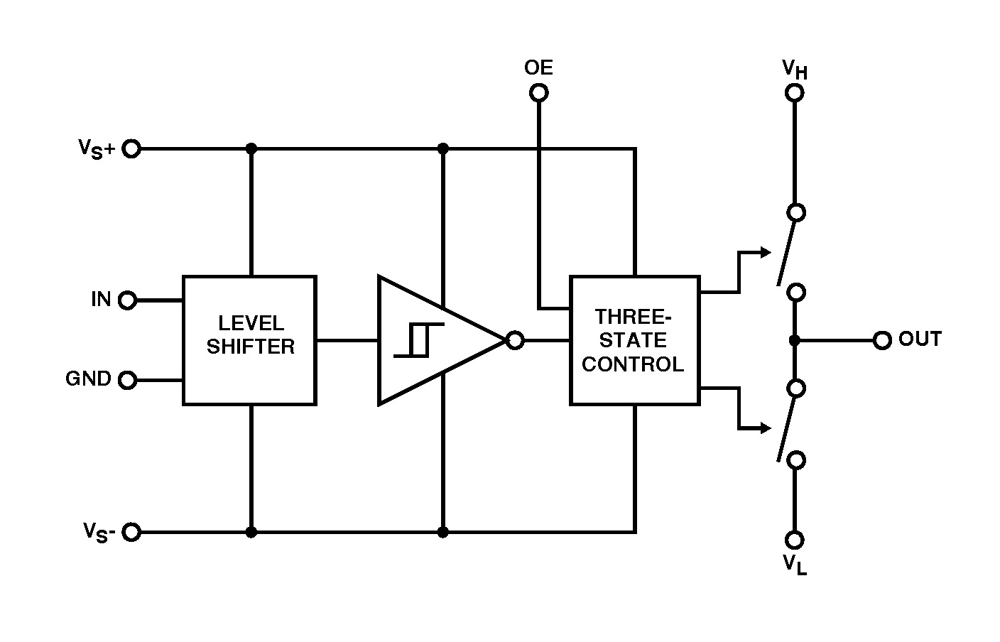

Typical Diagram
Application Notes
TitleTypeUpdatedSizeOther Languages
AN1108: Applying Power MOSFET DriversPDF13 Nov 2014112 KB
Datasheets
TitleTypeUpdatedSizeOther Languages
EL7156 DatasheetPDF01 Sep 2015289 KB
Tech Briefs
TitleTypeUpdatedSizeOther Languages
TB458: Converting a Fixed PWM to an Adjustable PWMPDF19 Nov 2014147 KB
Order Information
Part NumberPackage TypeWeight(g)PinsMSL RatingPeak Temp (°C)RoHS Status
EL7156CN8 Ld PDIP0.548N/ANA
EL7156CNZ8 Ld PDIP0.548N/ANARoHS
EL7156CS8 Ld SOIC0.07281240
EL7156CS-T138 Ld SOIC T+R0.07281240
EL7156CS-T78 Ld SOIC T+R0.07281240
EL7156CSZ8 Ld SOIC0.07283260RoHS
EL7156CSZ-T138 Ld SOIC T+R0.07283260RoHS
EL7156CSZ-T78 Ld SOIC T+R0.07283260RoHS
EL7156CSZ-T7A8 Ld SOIC T+R0.07283260RoHS
EL7156CS-EVALN/A
