LTC1064-4 - Low Noise, 8th Order, Clock Sweepable Cauer Lowpass Filter

The LTC1064-4 is an 8th order, clock sweepable Cauer lowpass switched capacitor filter. An external TTL or CMOS clock programs the value of the filters cutoff frequency. With Pin 10 at V+, the fCLK to fCUTOFF ratio is 50:1; the filter has a Cauer response and with compensation the passband ripple is ±0.1dB. The stopband attenuation is 80dB at 2×fCUTOFF. Cutoff frequencies up to 100kHz can be achieved. With Pin 10 at V?, the fCLK to f?3dB ratio is 100:1, the filter has a transitional Butterworth-Cauer response with lower noise and lower delay nonlinearity than the Cauer response. The stopband attenuation at 2.5×f?3dB is 92dB. Cutoff frequencies up to 50kHz can be achieved.

The LTC1064-4 features low noise and low harmonic distortion even when input voltages up to 3VRMS are applied. The LTC1064-4 overall performance competes with equivalent multiple op amp active realizations. The LTC1064-4 is pin compatible with the LTC1064-1, LTC1064-2 and LTC1064-3.

The LTC1064-4 is manufactured using Linear Technology?s enhanced LTCMOS? silicon gate process.

Features
  • 8th Order Filter in a 14-Pin Package
  • 80dB or More Stopband Attenuation at 2 x fCUTOFF
  • 50:1 fCLK to fCUTOFF Ratio (Cauer)
  • 100:1 fCLK to f-3dB Ratio (Transitional)
  • 135µVRMS Total Wideband Noise
  • 0.03% THD or Better
  • 100kHz Maximum fCUTOFF Frequency
  • Operates up to ±8V Power Supplies
  • Input Frequency Range up to 50 Times the Filter Cutoff Frequency
Typical Application
LTC1064-4 Typical Application
LTC1064-4 Typical Application
Applications
  • Antialiasing Filters
  • Telecom Filters
  • Sinewave Generators
Packaging

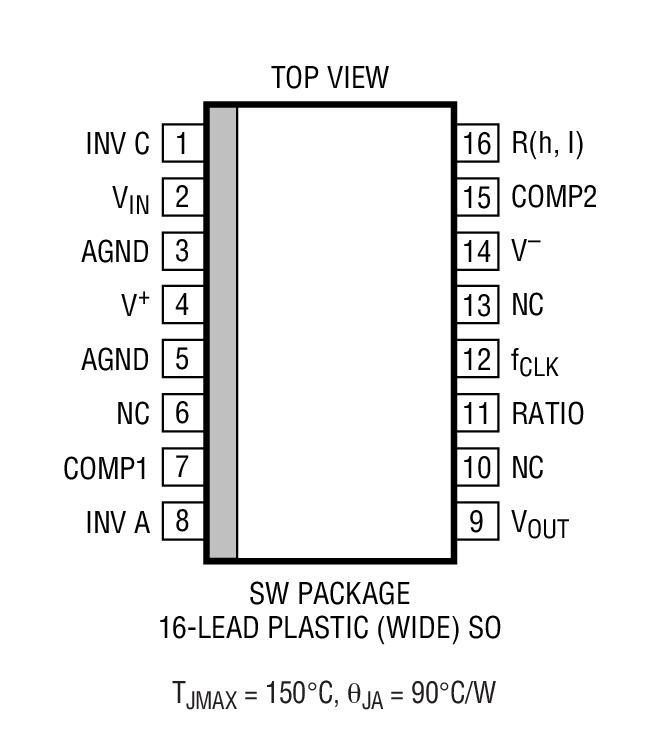

LTC1064-4 Package Drawing
LTC1064-4 Package Drawing
Order Information
Part NumberPackageTempPrice(1-99)Price (1k)*
LTC1064-4CN#PBFN-14C$16.70$13.70
LTC1064-4CSW#PBFSW-16C$20.85$16.90
LTC1064-4CSW#TRPBFSW-16C$16.96
LTC1064-4MJCERDIP-14M$78.60
