LTC1867L - Micropower, 3V, 16-Bit, 8-Channel 175ksps ADCs

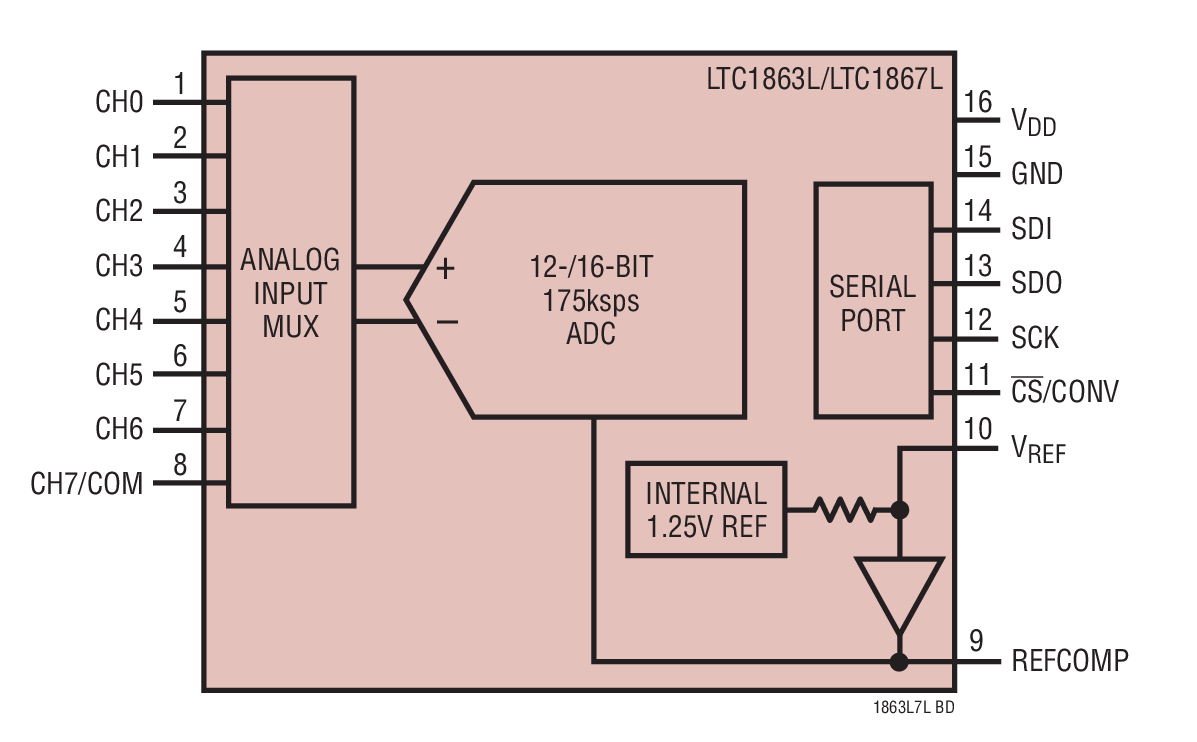

The LTC1863L/LTC1867L are pin compatible, 8-channel 12-/16-bit A/D converters with serial I/O and an internal reference.

The 8-channel input multiplexer can be configured for either single-ended or differential inputs and unipolar or bipolar conversions (or combinations thereof). The ADCs convert 0V to 2.5V unipolar inputs or ±1.25V bipolar inputs. The ADCs typically draw only 750µA from a single 2.7V supply. The automatic nap and sleep modes benefit power sensitive applications.

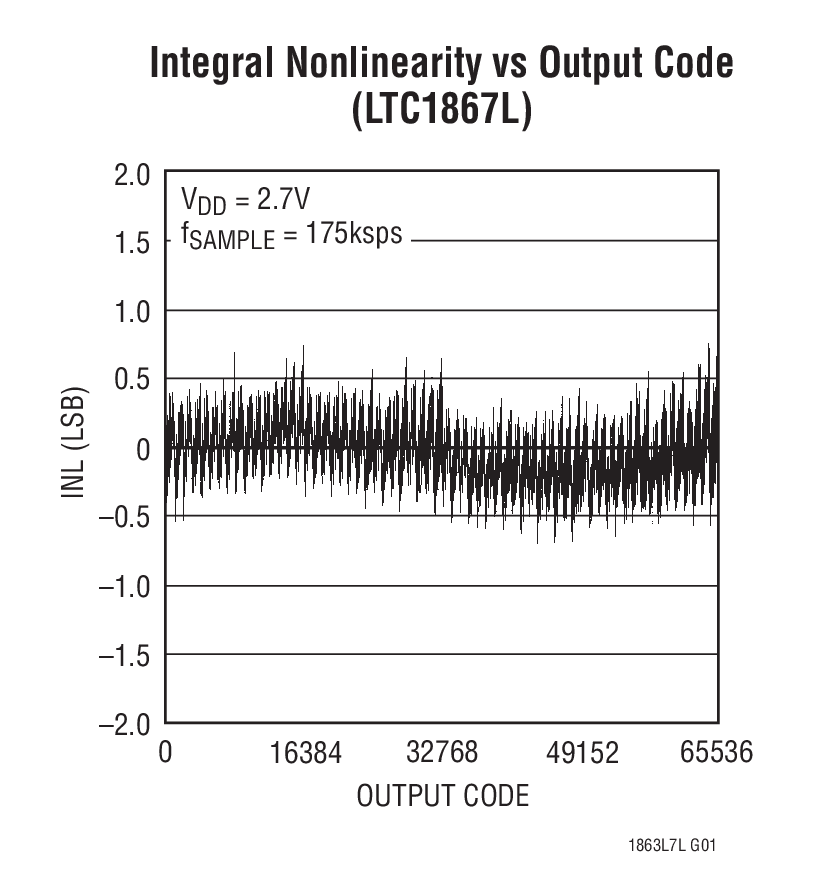

The LTC1867L's DC performance is outstanding with a ±3LSB INL specification and 16-bit no missing codes over temperature.

Housed in a compact, narrow 16-pin SSOP package, the LTC1863L/LTC1867L can be used in space-sensitive as well as low power applications.

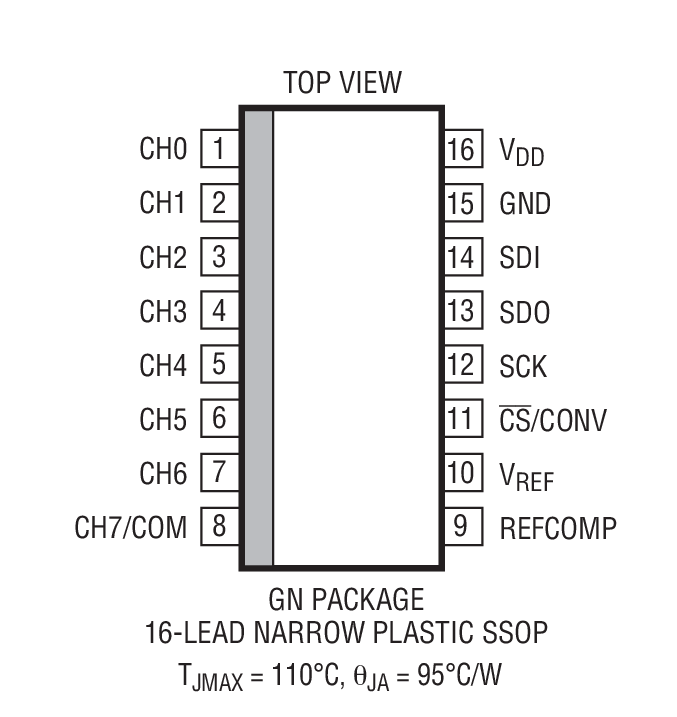

Features Sample Rate: 175ksps 16-Bit No Missing Codes and ±3LSB Max INL 8-Channel Multiplexer with: Single Ended or Differential Inputs and Unipolar or Bipolar Conversion Modes SPI/MICROWIRETM Serial I/O 2.7V Guaranteed Supply Voltage Pin Compatible with LTC1863/LTC1867 True Differential Inputs On-Chip or External Reference Low Power: 750µA at 175ksps, 300µA at 50ksps Sleep Mode Automatic Nap Mode Between Conversions 16-Pin Narrow SSOP Package Typical Application

Applications Industrial Process Control High Speed Data Acquisition Battery Operated Systems Multiplexed Data Acquisition Systems Imaging Systems Packaging
