LTM8052/LTM8052A - 36VIN, 5A, 2-Quadrant CVCC Step-Down μModule (Power Module) Regulator

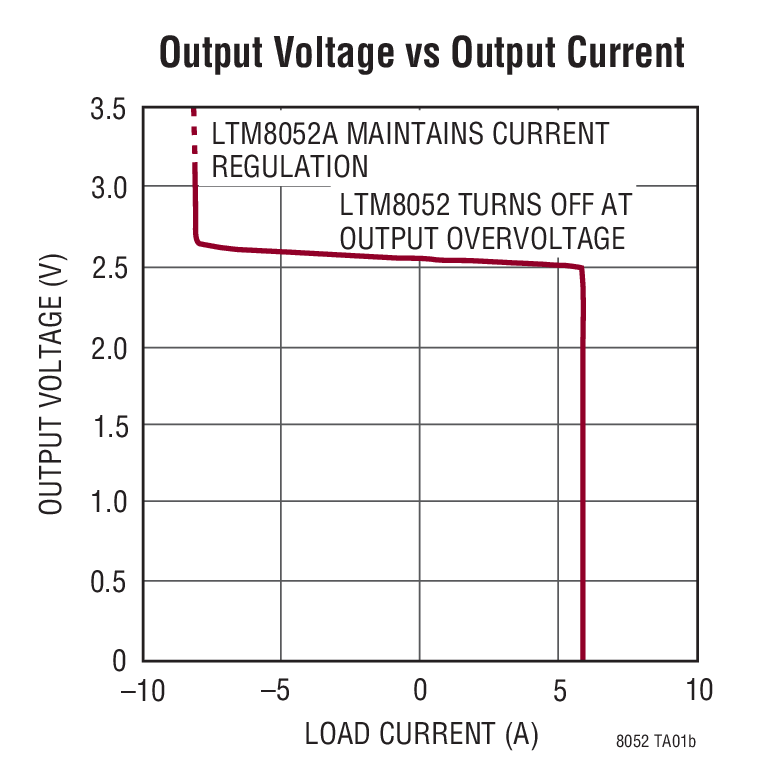

The LTM®8052/LTM8052A is a 36VIN, 5A, 2-quadrant constant-voltage, constant-current (CVCC) step-down μModule® (power module) regulator. Included in the package are the switching controller, power switches, inductor and support components. Operating over an input voltage range of 6V to 36V, the LTM8052/LTM8052A supports an output voltage range of 1.2V to 24V. The LTM8052/LTM8052A is able to sink or source current to maintain voltage regulation up to the positive and negative current limits. This output current limit can be set by a control voltage, a single resistor or a thermistor. LTM8052 features a 125% output overvoltage protection, while LTM8052A does not, allowing operation when the output is above the target regulation point.

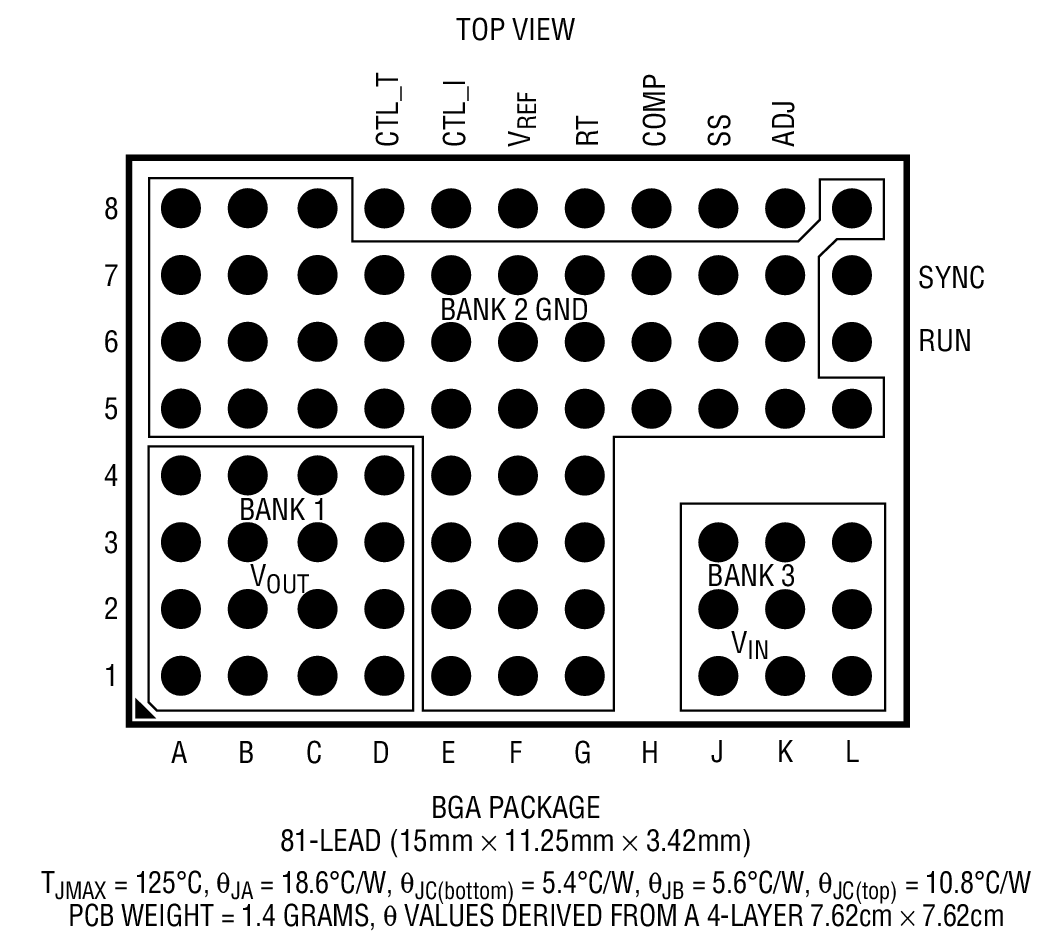

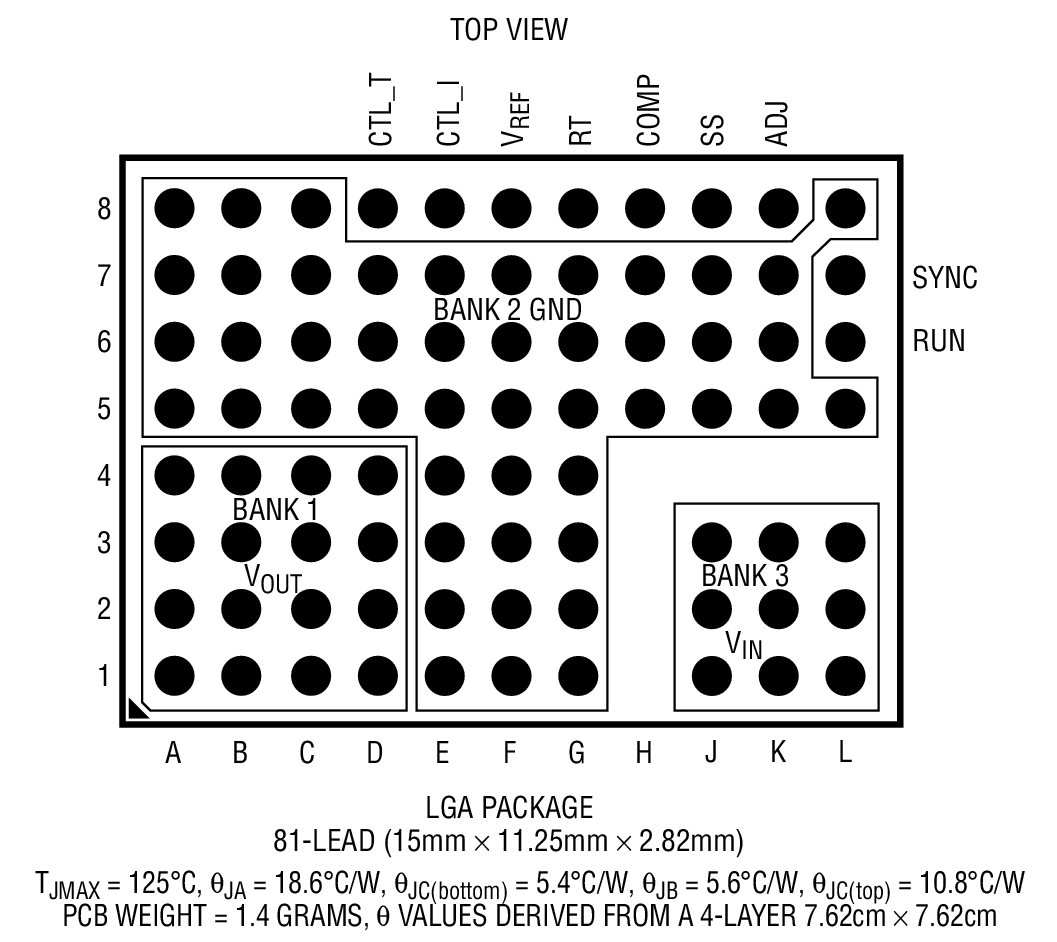

The LTM8052/LTM8052A is packaged in a compact (11.25mm × 15mm × 2.82mm) overmolded land grid array (LGA) and ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8052/LTM8052A are available with SnPb (BGA) or RoHS compliant terminal finish.

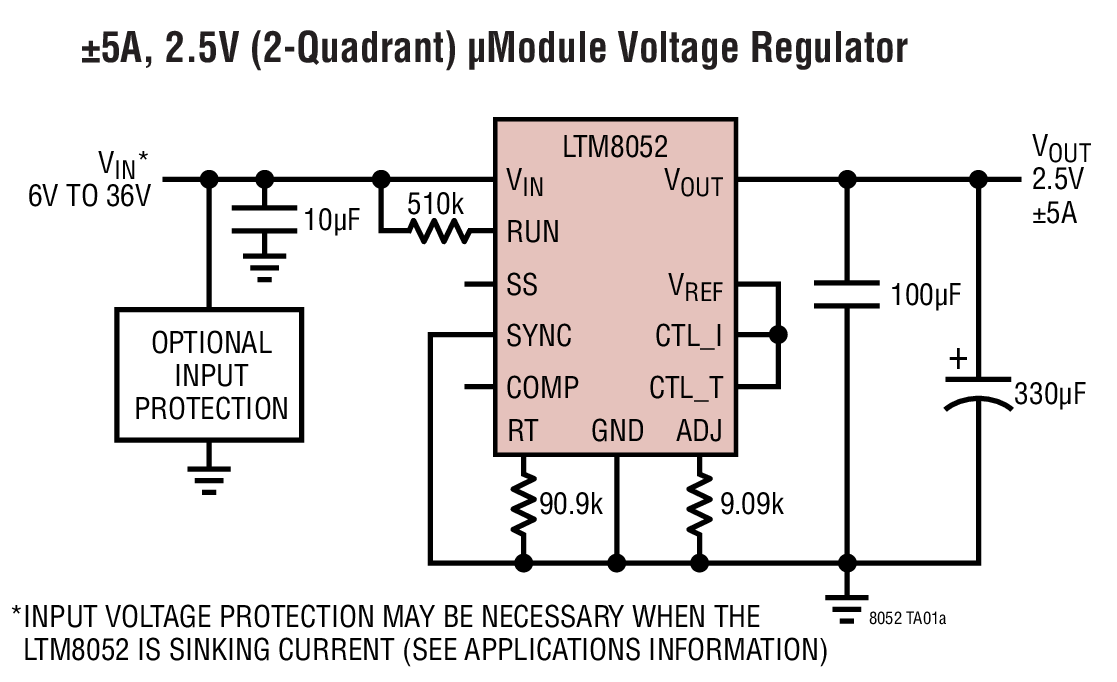

Features Complete Step-Down Switch Mode Power Supply CVCC: Constant-Voltage Constant-Current 2-Quadrant: Sources and Sinks Output Current Adjustable Output Current Wide Input Voltage Range: 6V to 36V 1.2V to 24V Output Voltage Forced Continuous Operation Selectable Switching Frequency: 100kHz to 1MHz (e4) RoHS Compliant Package with Gold Pad Finish Programmable Soft-Start Compact (11.25mm × 15mm × 2.82mm) Surface Mount LGA and (11.25mm × 15mm × 3.42mm) BGA Packages Typical Application

Applications Constant-Frequency Voltage Regulation Even at No Load Peltier Driver Battery Tester Battery/Supercap Charging and Cell Balancing Motor Drive Power Regulator High Power LED Drive Packaging
