SMTYF Transil Std 600 W Uni

The Transky is designed specifically for portable equipment and miniaturized electronic devices subject to ESD transient overvoltages.

The Transky combines the performance of a Transil™ or TVS (transient voltage supressor) and low forward voltage Schottky diode in a monolithic structure

技术特性

High peak pulse power:
- 600 W (10/1000 μs)
- 4000 W (8/20 μs)
Stand-off voltage 5 or 12 V
Low forward voltage: 0.48 V @ 0.85 A @ 25 °C
Low clamping factor VCL/VBR
Fast response time
Very thin package (1.0 mm overall component height)
ECOPACK2® halogen-free package
Complies with the following standards:
- IEC 61000-4-2 level 4:
  - 15 kV (air discharge)
  - 8 kV (contact discharge)
- MIL STD 883E- Method 3015-7: class 3C
  - Human body model

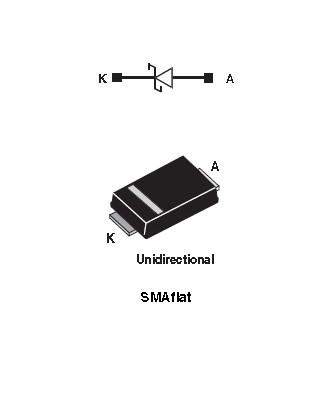

功能框图

SMTYF 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
SMTYF5.0A	Active	0.293	1000	SMAflat	Tape And Reel		SMTYF5.0A

DATASHEET

描述	版本	大小
SMTYF : DS5930: Low forward voltage TVS Transky™	1	90KB
